McIntosh XR200 User Manual

9
Caution: The AC Power Cord should not be connected to the
Power Amplifier until after the Loudspeaker Con-
nections have been made. Failure to observe this
could result in Electric Shock.
1. Prepare Loudspeaker cables by choosing one of the
methods below:
Bare wire cable ends:
Carefully remove sufficient insulation from the
cable ends, refer to figures 9, 10 & 11. If the cable
is stranded, carefully twist the strands together as
tightly as possible.
Note: If desired, the twisted ends can be tinned with
solder to keep the strands together or attach
spade lugs.
Spade lug or prepared wire connection:
Insert the spade lug connector or prepared section
of the cable end into the terminal side access hole,
and tighten the terminal cap until the cable is firmly
clamped into the terminal so the wires cannot slip
out. Refer to figures 12, 13 & 14.
2. Connect a Loudspeaker cable from the XR200 LOW
Frequency COM Binding Post to the Left Channel
COM (-) Binding Post of the Power Amplifier.
Notes: 1. It is important to maintain the correct polarity
at both ends of the Loudspeaker cables.
2. For proper operation the metal jumpers must
be installed between the Loudspeaker Terminal
Posts as illustrated.
3. Connect a Loudspeaker cable from the XR200 LOW
Frequency 8Ω Binding Post to the Left Channel 8 ohm
(+) Binding Post of the Power Amplifier.
4. In a similar manner, connect the second XR200 Loud-
speaker to the Power Amplifier Right Channel Binding
Posts.
4. Tighten all of the Loudspeaker and Amplifier Binding
Posts.

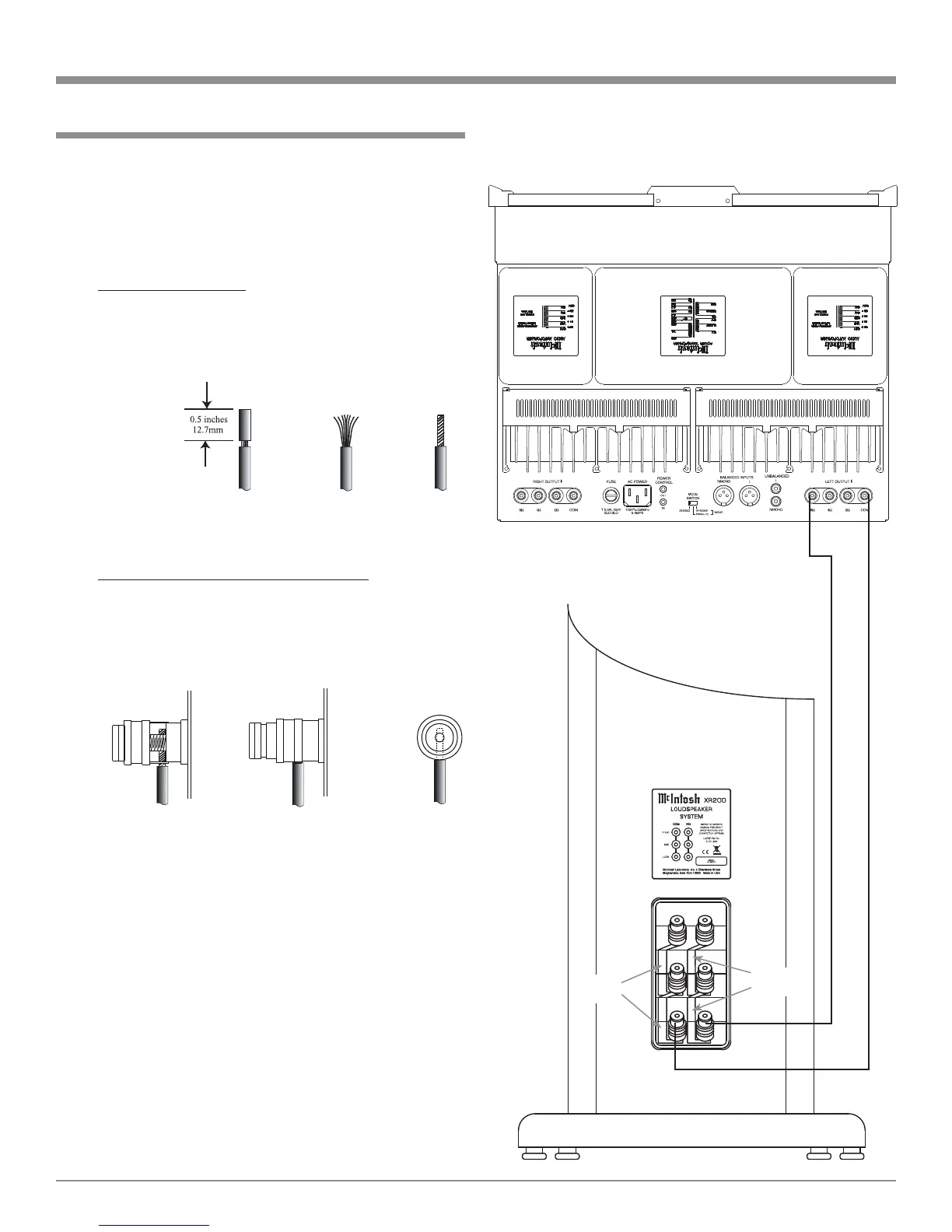

How to Connect using a single Amplifier
How to Connect using a single Amplifier
Figure 9
Figure 10 Figure 11
Figure 12 Figure 13 Figure 14
McIntosh Power Amplifier
Jumpers
Jumpers
