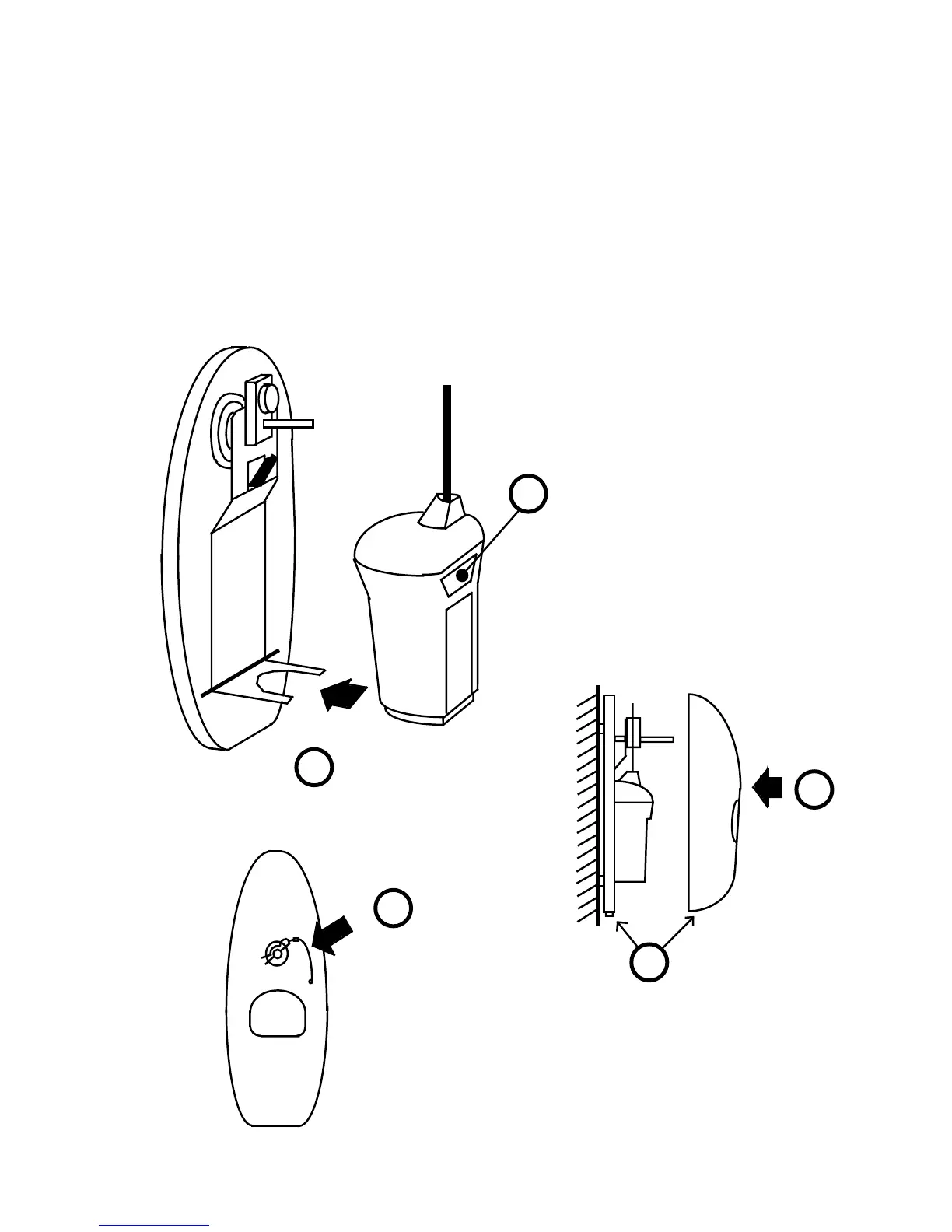

4.9 Re-fitting E3 into enclosure
• Offer E3 into backplate with switches facing outwards.
• Engage base of E3 into D shaped metal prongs.
• Antenna rests either to left or right of release pin.
• Check E3 is fully engaged in metal prongs and resting on foam pad.
• Refit cover by first locating release pin through hole in cover.
• Locate cover onto backplate, then snap down over locating lug.
• Refit R-clip through hole in end of release pin.
3
Fit cover
over pin
4
Snap cover onto
locating lug
5
Fit R-clip
through pin
1
2
Switches
facing
out
Slide D-shaped
foot into prongs
