IOMM AGZ-5 AGZ 026B through 130B 51
Dimensional Data

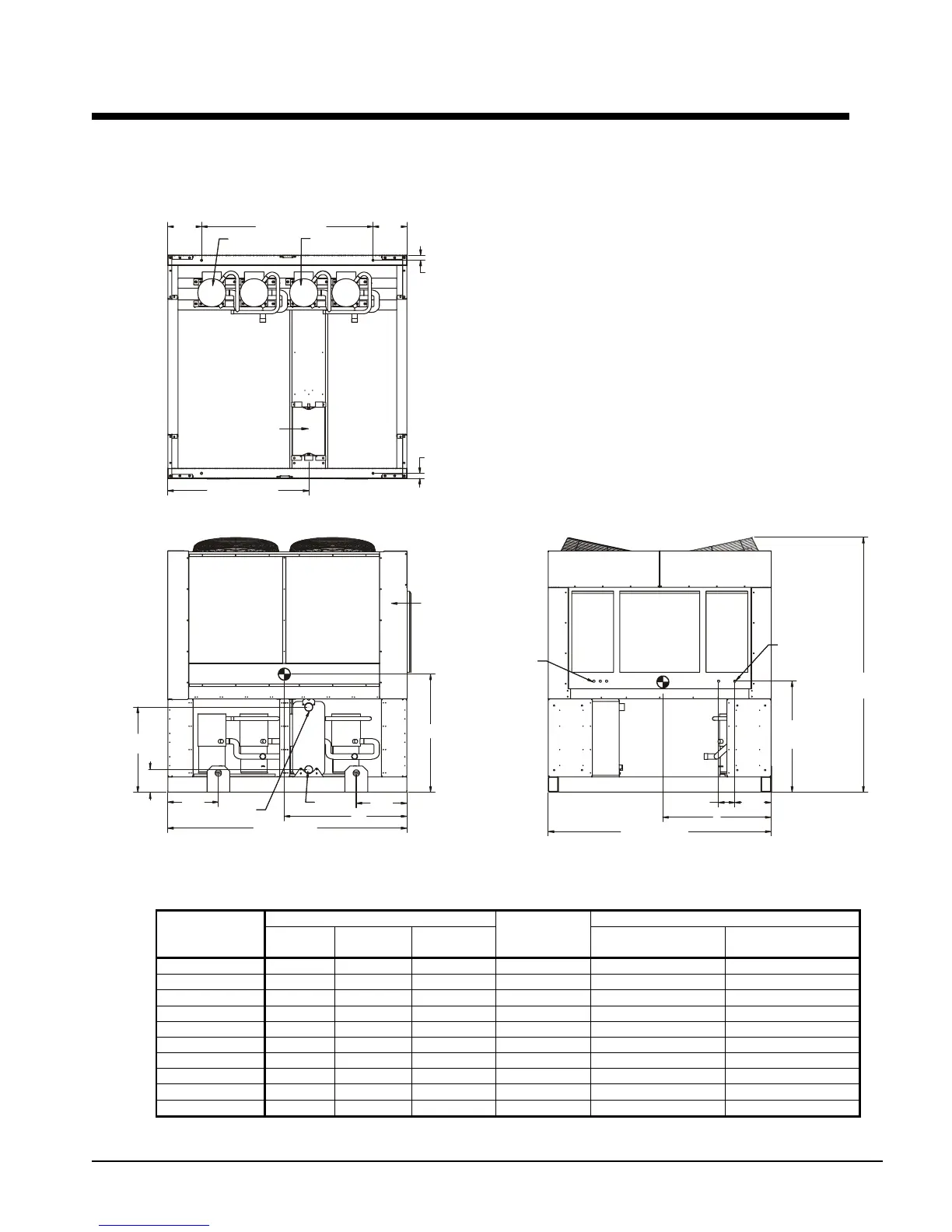

Figure 23, Dimensions, AGZ 026BS – 070BS Packaged Chiller
67.76 (1721.10)
13.31
(338.07)
13.31
(338.07)
2.00
(50.8)
2.00
(50.8)
55.65 (1413.51)
COMPRESSOR
CIRCUIT #1
COMPRESSOR
CIRCUIT #2
ISOLATOR LOCATIONS ON BOTTOM OF RAIL
Z
Y
19.94
(506.48)
94.38 (2397.25)
19.94
(
506.48
)
33.52
(851.41)
8.80
(223.52)
EVAP
OUTLET
EVAP
INLET
100.40
(
2550.16
)
X
14.33
(
363.98
)
6.38
(
162.05
)
43.75
(
1111.25
)
88.00
(
2235.20
)
POWER ENTRY
POINT
0.875 KNOCK OUT
FIELD CONTROL
CONNECTION
EVAPORATOR
CONTROL PANEL
CONTROL
PANEL
DWG # 3305195
Center of Gravity - Inches (mm) Weights – Lbs (kg)
Unit Size
X Y Z
Evap Inlet &
Outlet
Victaulic in.
Shipping Weight Operating Weight
AGZ 026BS
39 (991) 40 (1016) 42 (1067) 3 3950 (1792) 3990 (1810)
AGZ 030BS
39 (991) 40 (1016) 42 (1067) 3 3990 (1810) 4040 (1833)
AGZ 035BS
40 (1016) 40 (1016) 42 (1067) 3 4030 (1828) 4080 (1851)
AGZ 040BS
39 (991) 39 (991) 41 (1041) 3 4070 (1846) 4130 (1873)
AGZ 045BS
40 (1016) 38 (965) 41 (1041) 3 4210 (1910) 4270 (1937)
AGZ 050BS
40 (1016) 39 (991) 42 (1067) 3 4330 (1964) 4400 (1996)
AGZ 055BS
40 (1016) 39 (991) 43 (1092) 3 4460 (2023) 4540 (2059)
AGZ 060BS
40 (1016) 39 (991) 43 (1092) 3 4520 (2050) 4600 (2087)
AGZ 065BS
41 (1041) 40 (1016) 45 (1143) 3 4760 (2159) 4860 (2204)
AGZ 070BS
41 (1041) 41 (1041) 45 (1143) 3 4890 (2218) 4990 (2263)
