8 AGZ 026B through 130B IOMM AGZ-5
Case 2, Two Units Side By Side
Two or more units sited side by side are common. If spaced closer than 12 feet (3.7 meters) or
8 feet (2.5meters) depending on size, it is necessary to adjust the performance of each unit;
circuits adjoining each other are affected. NOTE: This case applies only to two units side by
side. See Case 3 for three or more parallel units. If one of the two units also has a wall
adjoining it, see Case 1. Add the two adjustment factors together and apply to the unit located
between the wall and the other unit.
Mounting units end to end will not necessitate adjusting performance. Depending on the
actual arrangement, sufficient space must be left between the units for access to the control
panel door opening and/or evaporator tube removal. See “Clearance” section of this guide for
requirements for specific units.

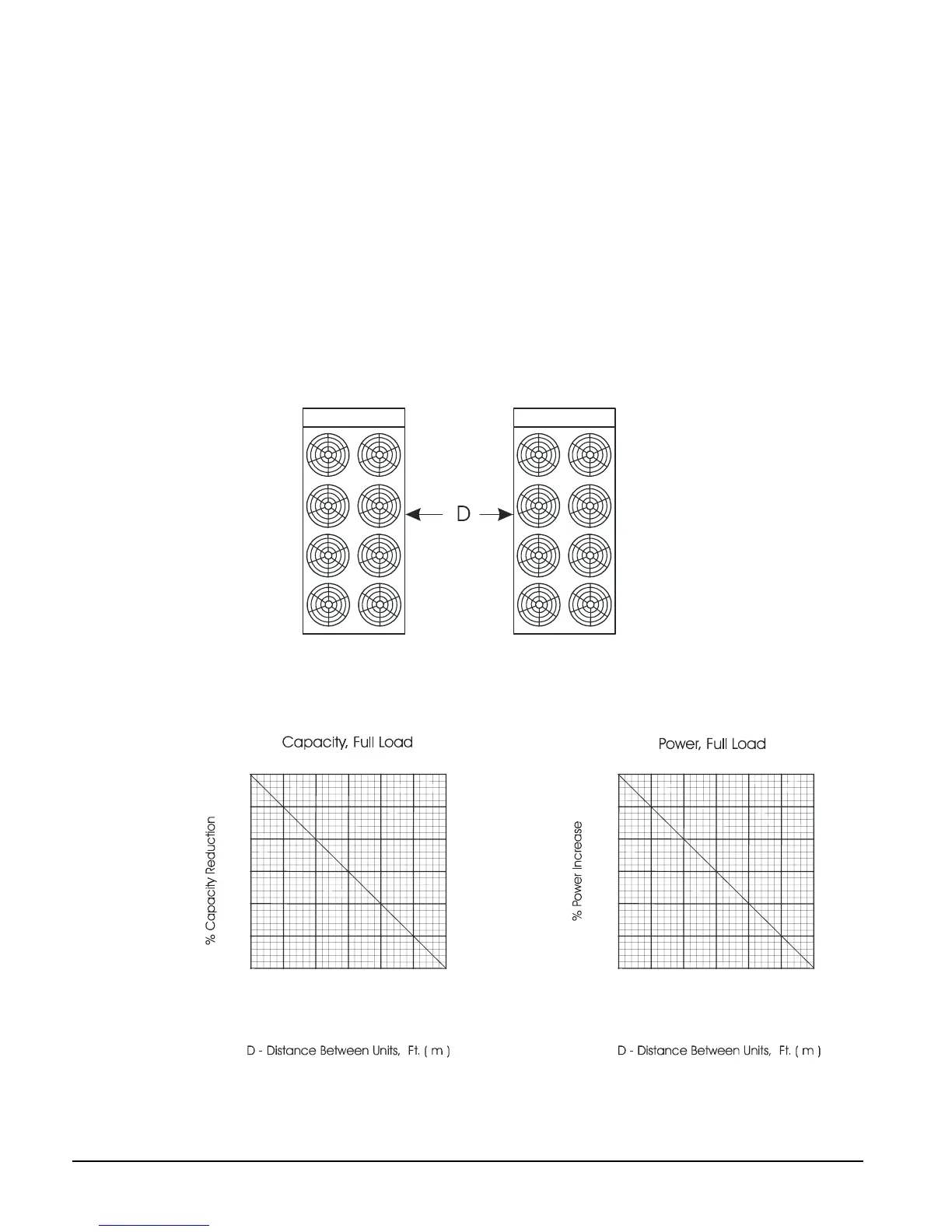

Figure 7, Two Units Side by Side
Figure 8, Adjustment Factor
3.0
2.0
1.0
0
A
GZ 075-130
A
GZ 026-070
9
(2.7)
6.5
(2.0)
10
(3.0)
7
(2.1)
11
(3.3)
7.5
(2.2)
12
(3.6)
8
(2.4)
6.0
4.0
2.0
0
A
GZ 075-130
A
GZ 026-070
9
(2.7)
6.5
(2.0)
10
(3.0)
7
(2.1)
11
(3.3)
7.5
(2.2)
12
(3.6)
8
(2.4)
