McQuay CC10C User Manual

1-10
The electrical power must be provided with protection
devices (circuit breaker or fuse) with double pole
separation system (phase + neutral) with minimum
contact gap of 3mm.
!

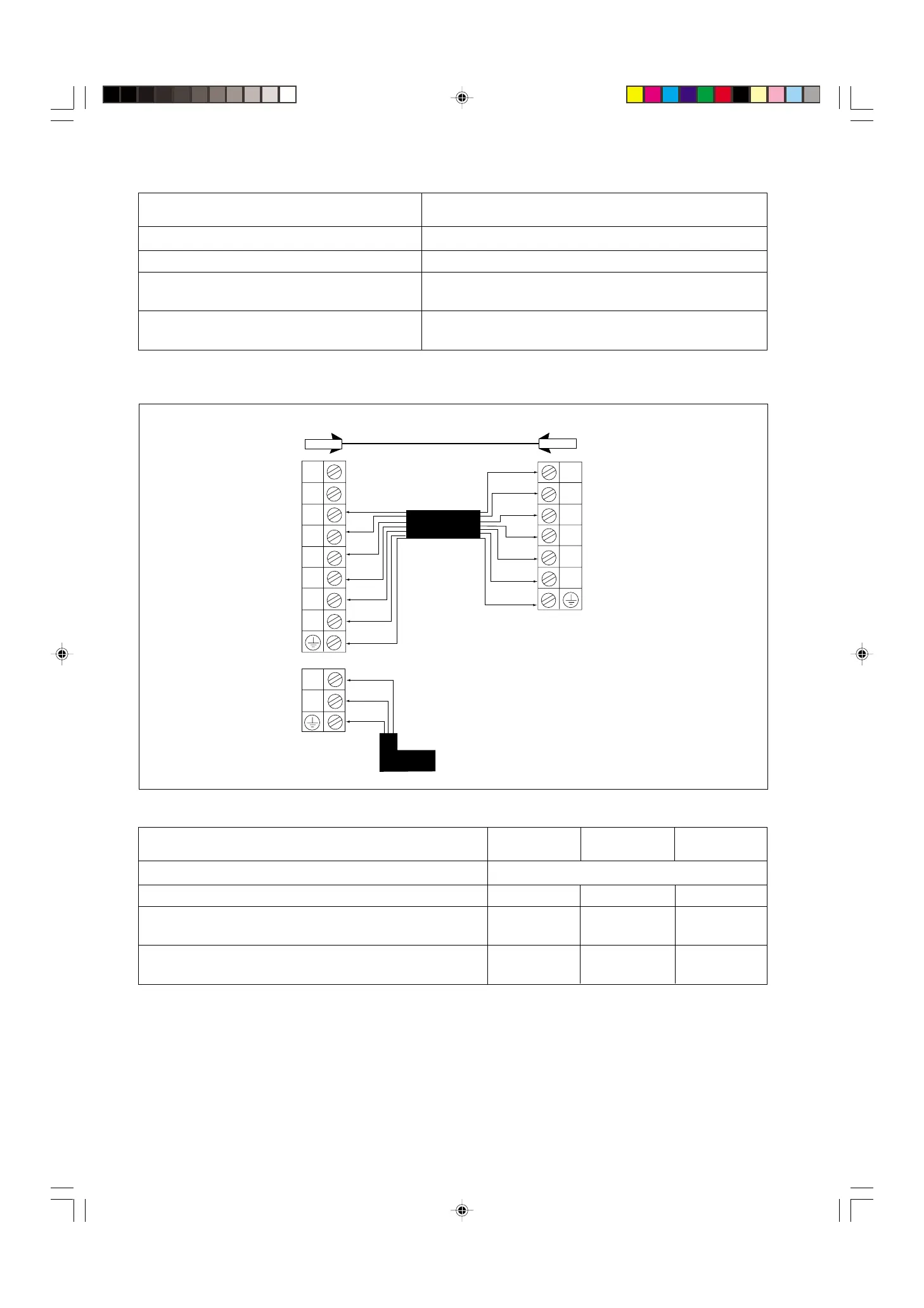

TERMINAL STRIP
OUTDOOR UNIT
INTERCONNECTION
CABLE
TERMINAL STRIP
INDOOR UNIT
Heat pump units for Heat pump series 30CR with wire remote control & PCB
Indoor unit CC 30CR
Outdoor unit SL 30CR
Voltage range 220V – 240V /1Ph /50Hz + !
Recommended fuse A 25
Power Supply Cable size mm
2
4
Number of conductors 3
Interconnection Cable size mm
2
1.5
Number of conductors 7
IMPORTANT: These values are for information only, they should be checked and selected to comply with the local and/or
national codes and regulations. They are also subjected to the type of installation and size of
conductors used.
(Heat pump units for Heat pump series 30CR with wire remote control & PCB)
Indoor unit CC 40C CC 50C CC 60C
Outdoor unit SL 40C SL 50C SL 60C
Voltage range 380V– 415V/ 3Ph/ 50Hz +N + !
Recommended fuse A 15 20 20
Power Supply Cable size mm
2
2.5 2.5 2.5
Number of conductors 44 4
Interconnection Cable size mm
2
1.5 1.5 1.5
Number of conductors 55 5
IMPORTANT: These values are for information only, they should be checked and selected to comply with the local and/or
national codes and regulations. They are also subjected to the type of installation and size of
conductors used.
(Cooling only units for series 40C with wire remote control & PCB)
N
L
COMP
4WV
OF
A
N
L
COMP
4WV
OF
R
S
A
L
N
OUTDOOR COIL SENSOR
CCC-0700 (01~16) ENG* 2/1/01, 10:42 AM10
