McQuay CK Series User Manual

1-10
IM-FCU-0999

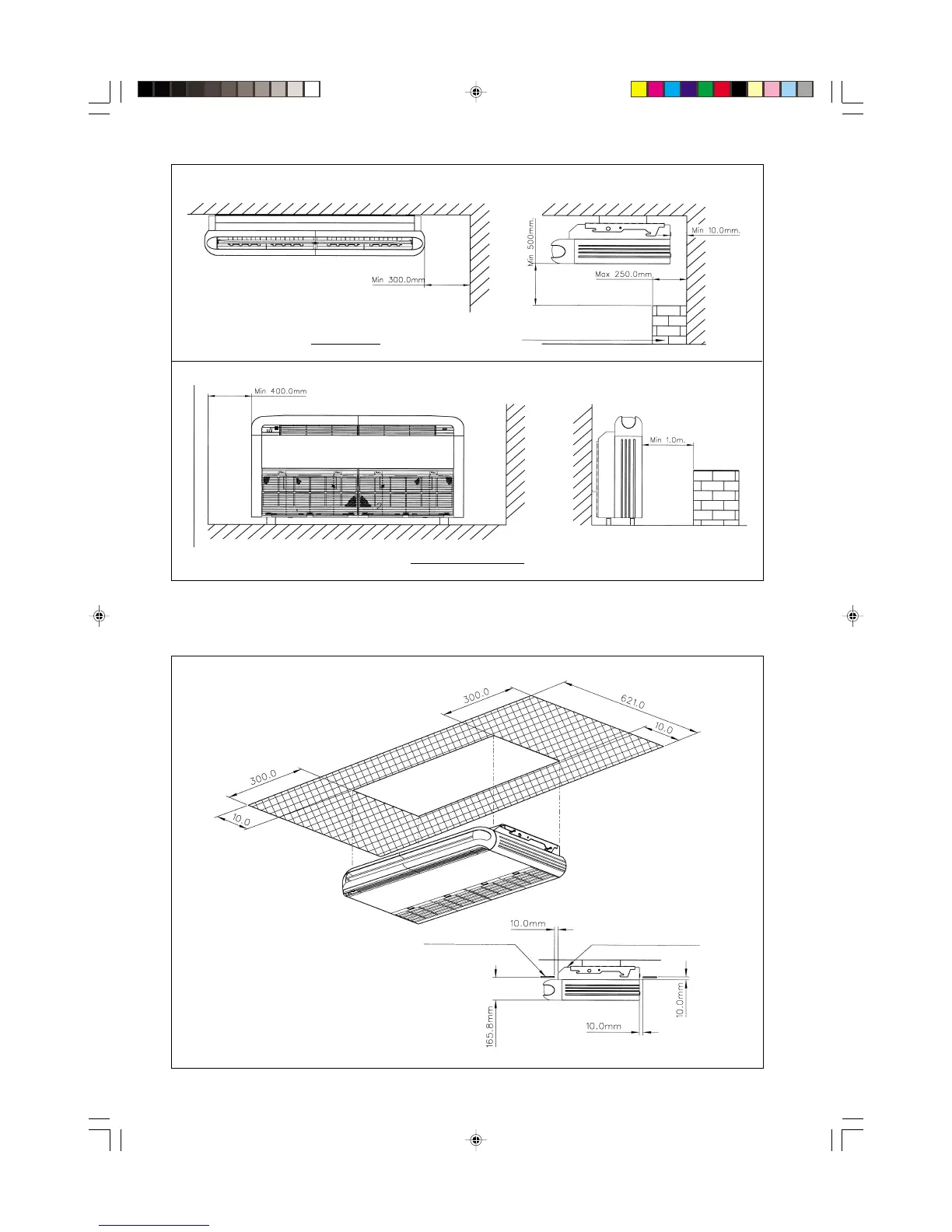

FIGURE D
SEMI-ENCLOSE MOUNTING
* In case the unit is to be half-recessed into a false ceiling, please check that the unit is well-aligned.
* Provide the installation space as shown in figure D.
CEILING TYPE
FIGURE C
FLOOR STANDING TYPE
CEILING BOARD
TOP PANEL OF UNIT
UTENSILS, FURNITURES OR BUILT-IN
ARCHITECTURAL FEATURES MUST
NOT PROTRUDE MORE THAN 250.0MM
IM-FCU-0999L (Eng) 7/14/00, 1:18 PM10
