1-10
Figure 2 Figure 3
Figure 4 Figure 5
Wires Installation

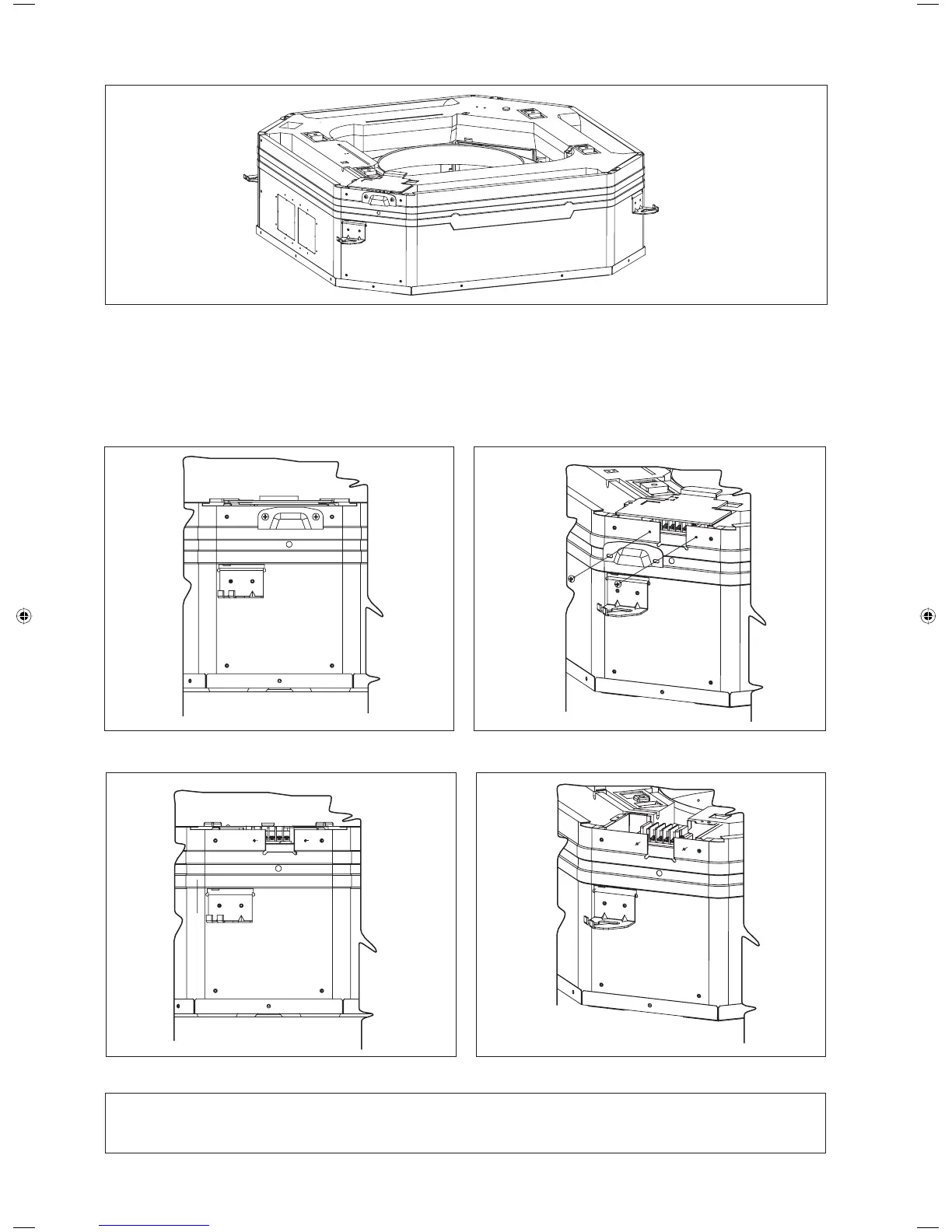

Figure 1 and Figure 2 shows the location of cover wire in CKE unit.
Steps to install power supply wires and wires from outdoor unit.
1. Remove wire cover by removing 2 screws as shown in Figure 3.
2. Wires will go through the hole as shown in Figure 4 and 5 respectively without crossing the height of the hole.
3. After that, wire cover will be assembled back to close the wire.
Figure 1
! CAUTION
Do not install the unit at altitude over 2000m for both indoor and outdoor.
1 EN 5CKYER-1009(1).indd 101 EN 5CKYER-1009(1).indd 10 4/21/11 9:11:19 AM4/21/11 9:11:19 AM
