56 Service Manual SM-MDS_(ii)
Set up

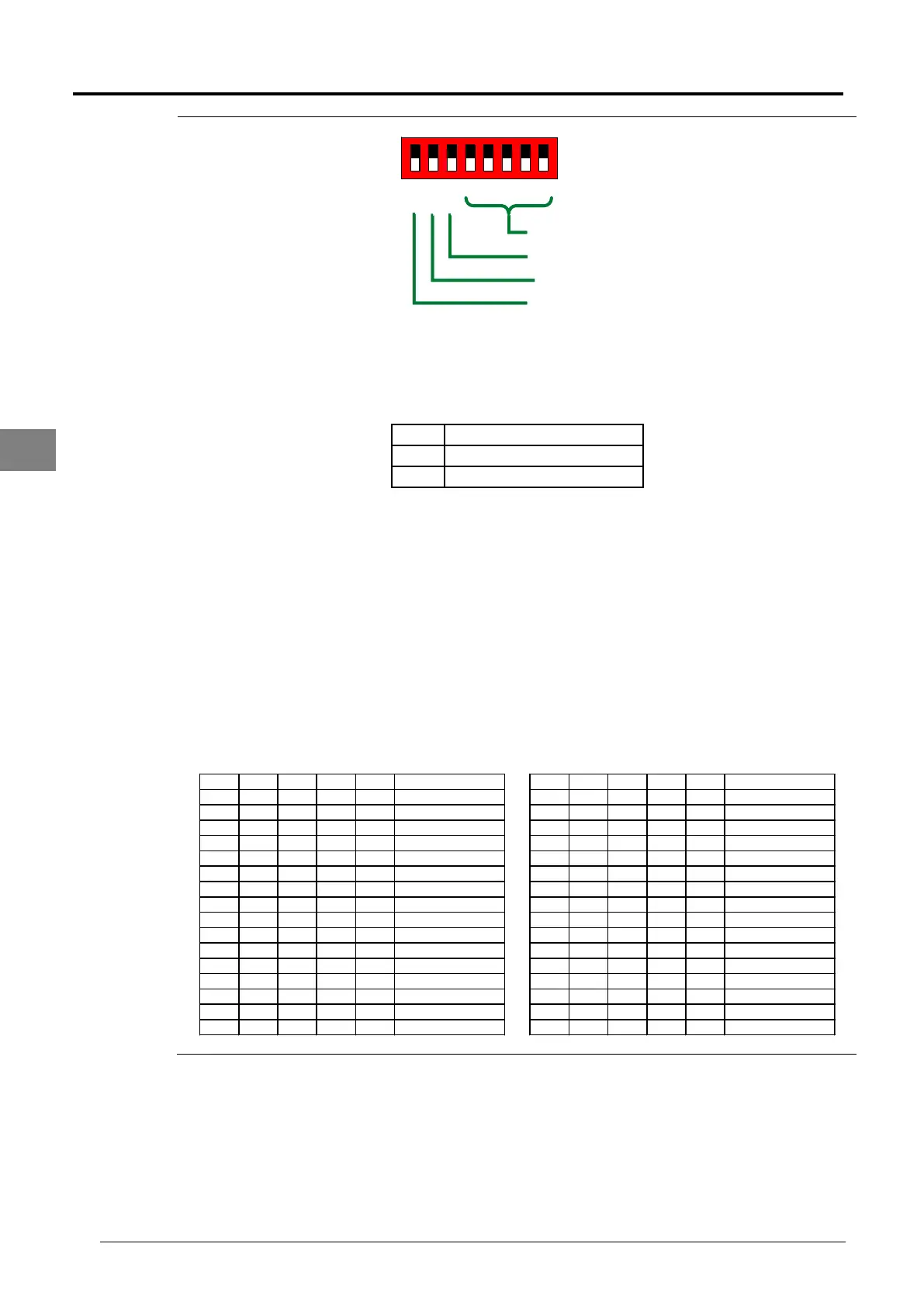

Dipswitch 2
(S2)
S2
1 2 3 4 5 6 7 8
Master / Slave
Reserved
Outdoor address
ON (1)
OFF (0)
Outdoor Capacity
S2
1 2 3 4 5 6 7 8
Master / Slave
Reserved
Outdoor address
ON (1)
OFF (0)
Outdoor Capacity
For Dipswitch 2, the main function is to set the outdoor address if the outdoor is connected in a
network of outdoors or Central Wired Controller (MC303). Dipswitch S2.1 is to determine
whether the outdoor is a single unit, master unit or salve unit. Dipswitch S2.3 is related to
Dipswitch S3 which is used to determine the capacity of the outdoor. This will be cover in
dipswitch S3.
S2.1
0
1
Slave Module
Single/Master Module
Type of Model
If the outdoor is not connected to the central control monitoring software (Smart Commander) or
the Central Wired Controller (MC303), there is no need to set the address. If the outdoor is
connected with these accessories, then the same rules on the indoor setting is applied here
also. The rules are as follow:
a) Each outdoor number must be unique. The outdoor address cannot duplicate.
b) The first outdoor address must be 0. Do not start the first outdoor with address 1.
c) While setting the outdoor address, the outdoor address number cannot skip. For
example, if there are only 4 outdoors in a system, the outdoor address needs to be 0, 1,
2 and 3.
d) It is advisable that the outdoor address follow the sequence of the communication
wiring. For example, for a 4 outdoors in the system, the first outdoor after the gateway
should have address 0, the next outdoor address should be 1 and the last outdoor of the
communication wiring should be 3.
S2.4 S2.5 S2.6 S2.7 S2.8 Outdoor Address S2.4 S2.5 S2.6 S2.7 S2.8 Outdoor Address
0 0 0 0 0 0 1 0 0 0 0 16
0 0 0 0 1 1 1 0 0 0 1 17
0 0 0 1 0 2 1 0 0 1 0 18
0 0 0 1 1 3 1 0 0 1 1 19
0 0 1 0 0 4 1 0 1 0 0 20
0 0 1 0 1 5 1 0 1 0 1 21
0 0 1 1 0 6 1 0 1 1 0 22
0 0 1 1 1 7 1 0 1 1 1 23
0 1 0 0 0 8 1 1 0 0 0 24
0 1 0 0 1 9 1 1 0 0 1 25
0 1 0 1 0 10 1 1 0 1 0 26
0 1 0 1 1 11 1 1 0 1 1 27
0 1 1 0 0 12 1 1 1 0 0 28
0 1 1 0 1 13 1 1 1 0 1 29
0 1 1 1 0 14 1 1 1 1 0 30
0 1 1 1 1 15 1 1 1 1 1 31
5
