McQuay MDS 30 - 3 Installation Instruction; 4 Outdoor Unit Installation; Location and Space of Installation

4 Installation Manual IM-MDS_(i)
3.0 Installation Instruction
Kindly follow the installation steps shown below:
1. Choose the installation place
2. Install the outdoor and indoor unit
3. Install the piping and cable line
4. Perform leakage test
5. Vacuum the system and charge in refrigerant
6. Test run/commissioning
4.0 Outdoor Unit Installation

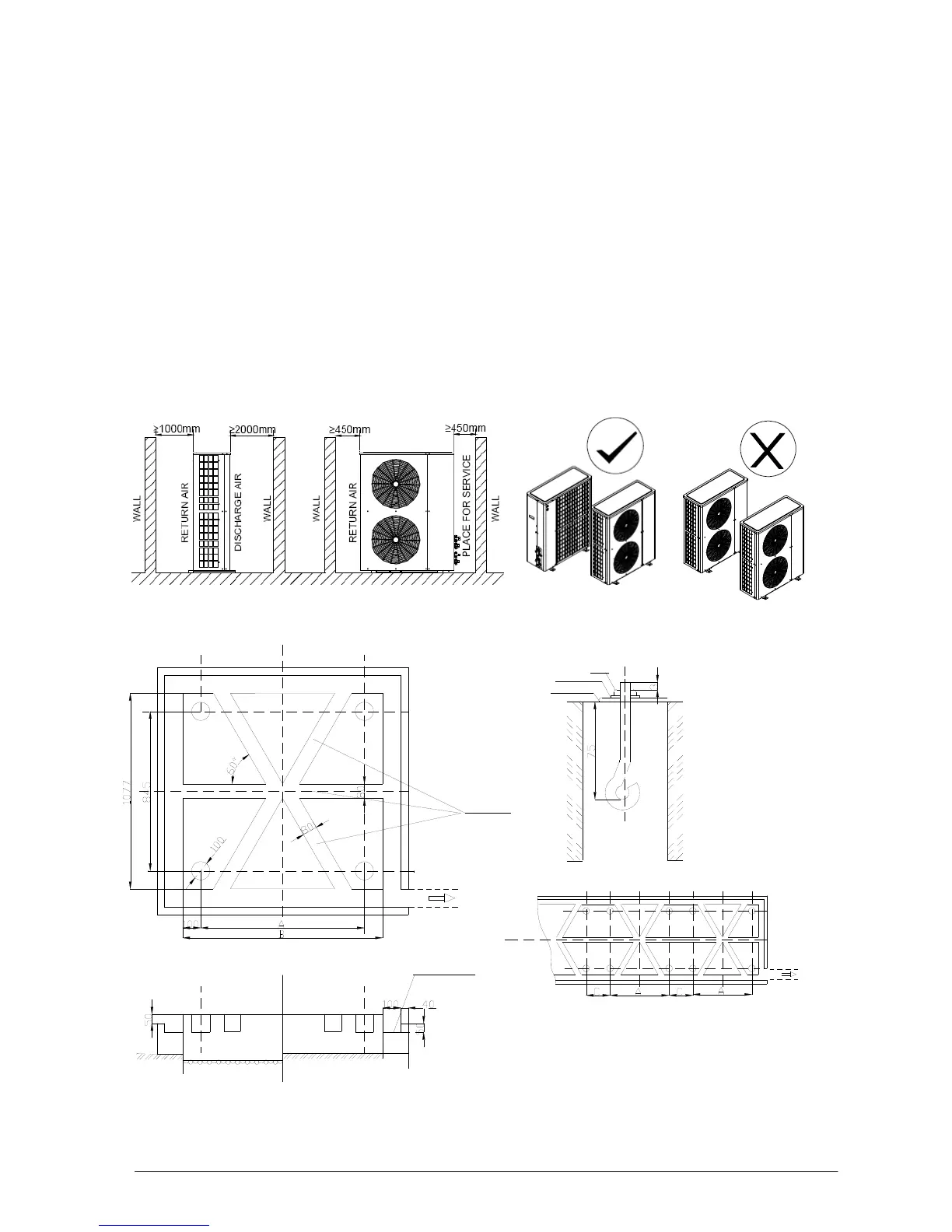

4.1 Location and space of installation
 Avoid the discharge air from circulating back to air inlet.
 Remove any barrier to improve the air ventilation.
 Ensure enough space for maintenance.
 Avoid installation of unit under corrosive environment.
 Avoid installation of unit at places with flammable gas.
 Follow the clearance when more than one outdoor unit is installed at the same location.
Constructing on the ground
x
Foundation nut installing
Many units concentrated installing
Constructing on the floor
AMDS200～240BR5
Mode
AMDS080～120BR5
AMDS140～180BR5
Drain ditch
Gradient is 1/40
x
Drain ditch
1900
2100
900
1200
A
1100
1400
B
Nut
Y Trough
Undercarriage
Spring washer
Bolt mode： JA
Dimension:M12
Quantity:4
MDS 30-70A(R)
5MDS 50-70B(R)
MDS 80-320B(R)
5MDS 80-500B(R)
