4 Preparative for Installation
4.1 Standard Accessory Parts
The standard accessory parts listed below are furnished and should be used as
required.

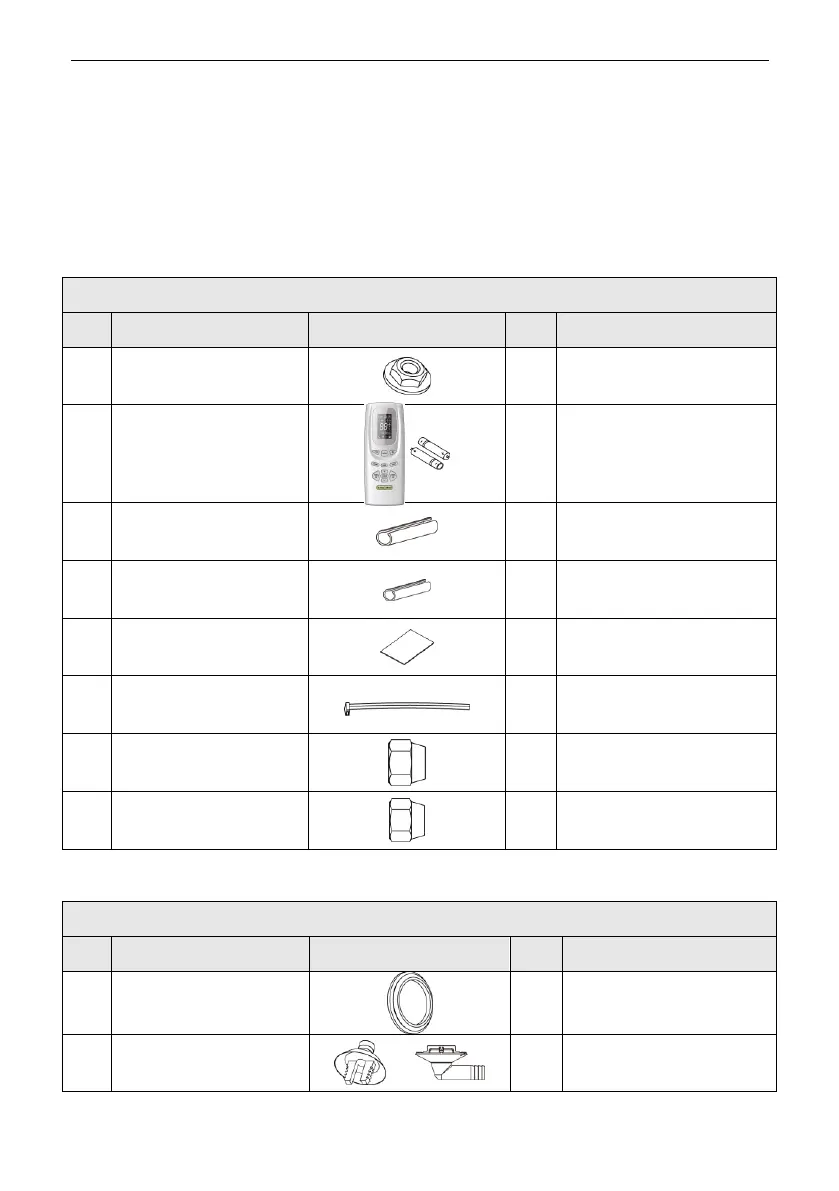

Table 3.1
Indoor Unit Accessories
No.
Name
Appearance
Q'ty
Usage
1
Nut with Washer
8
To fix the hook on the
cabinet of the unit.
2
Wireless Controller +
Battery
1+2
To control the indoor unit
3
Insulation
1
To insulate the gas pipe
4
Insulation
1
To insulate the liquid pipe
5
Installation Paperboard
2
To insulate the drain pipe
6
Fastener
4
To fasten the sponge
7
Nut
1
To connect gas pipe
8
Nut
1
To connect liquid pipe
Table 3.2
Outdoor Unit Accessories
No.
Name
Appearance
Q'ty
Usage
1
Drain Plug
3
To plug the unused drain
hole.
2
Drainage Connecter
or
1
To connect with the hard
PVC drain pipe
