5 Installation of the Unit
5.1 Installation of the Indoor Unit
5.1.1 Indoor unit dimension
WARNING !
①. Install the indoor unit in a location which can withstand a load of at least five times the weight of the
main unit and which will not amplify sound or vibration.
②. If the installation location is not strong enough, the indoor unit may fall and cause injuries.
③. If the job is done with the panel frame only, there is a risk that the unit will come loose. Please take
care.

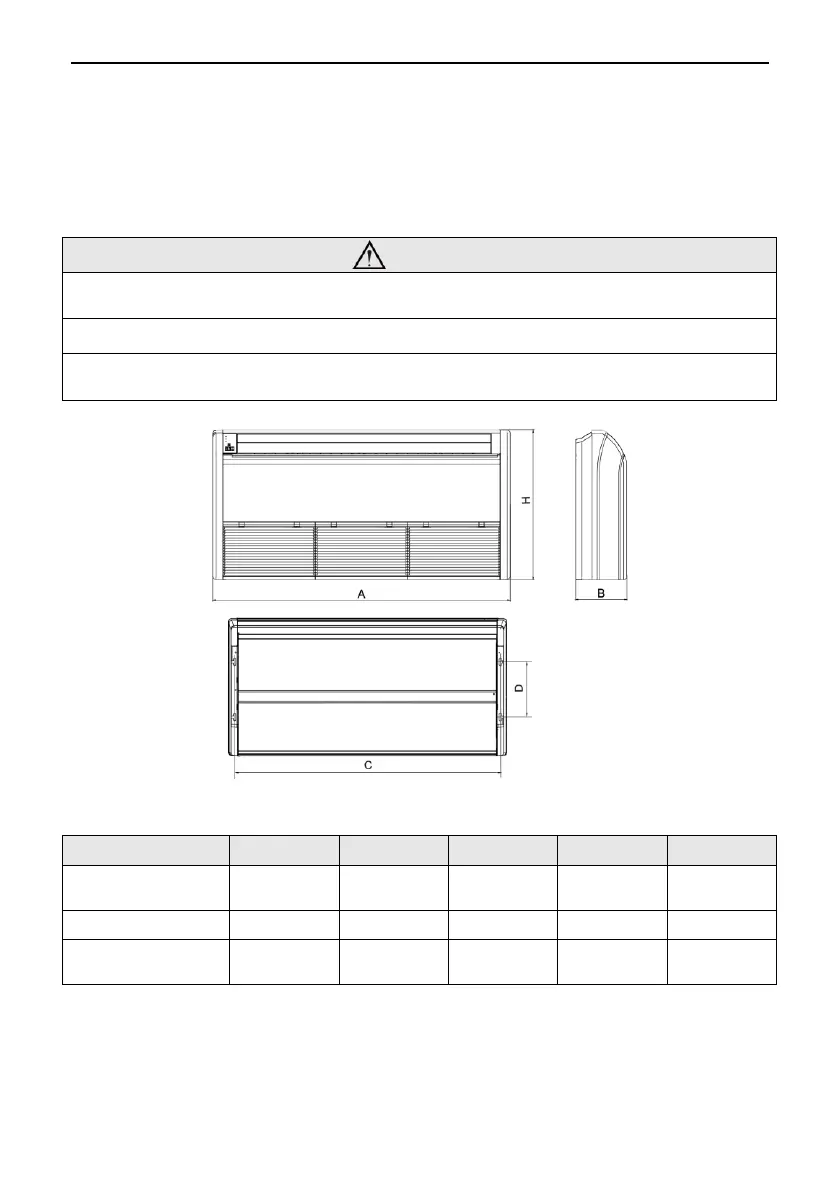

Fig. 4.1
Table 4.1
Model
A
B
C
D
H
MQS-174018-CFC216A
1220
225
1158
280
700
1420
245
1354
280
700
1700
245
1634
280
700
5.1.2 Preparation for Installing the Indoor Unit
(1). Open the air inlet grille and the screw cover, and remove the screws.
(2). Release the claws in the 3 places indicated.
MQS-174024-CFC216A
MQS-174036-CFC216A
MQS-174048-CFC216A
MQS-174060-CFC216A
