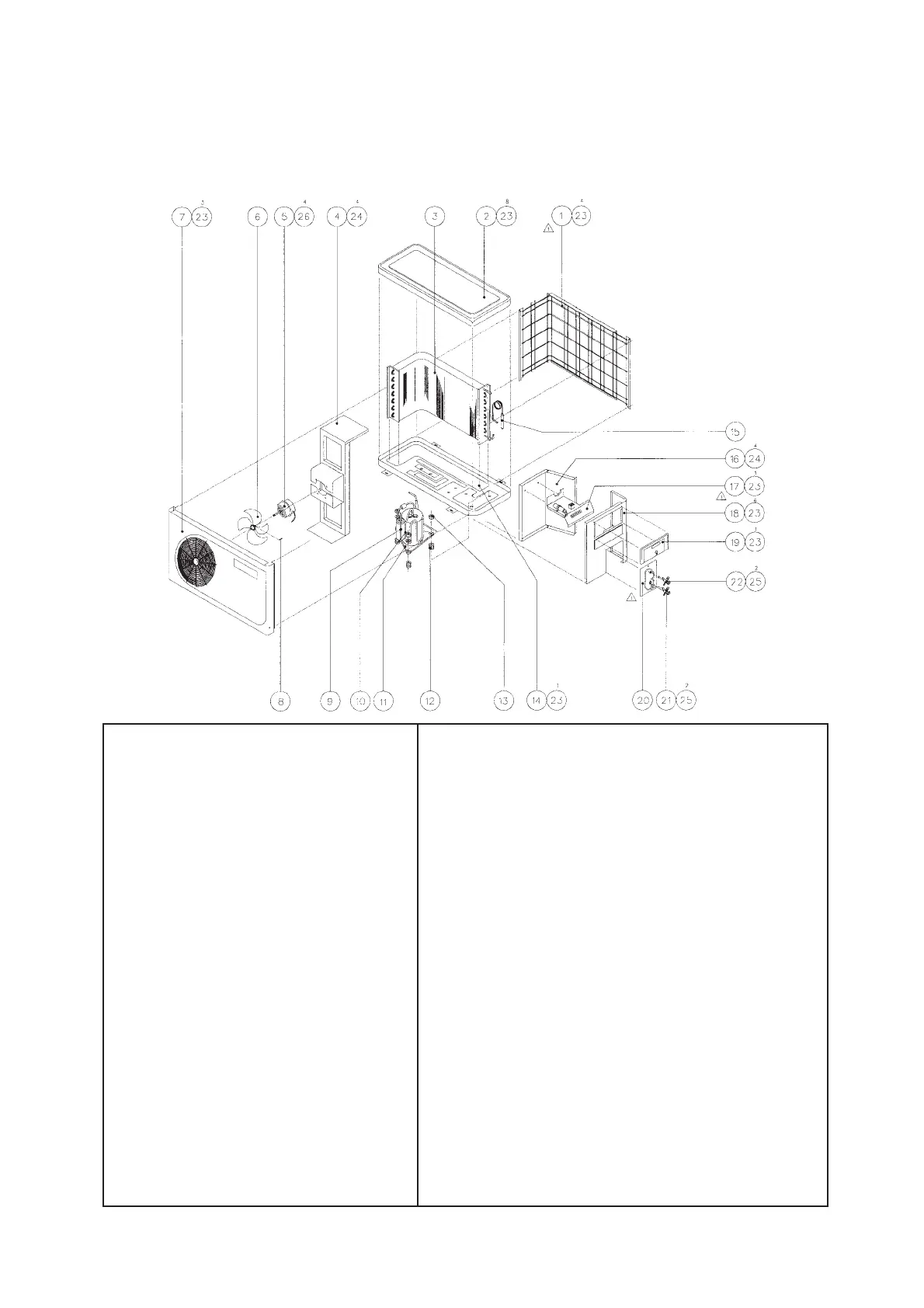

Outdoor Unit
Model : M4LC 007B / 010B / 015B
1. ASSY., BACK PANEL 14. ASSY., BASE PAN
2. ASSY., TOP PANEL 15. ASSY., CAPILLARY TUBE
3. ASSY., CONDENSER COIL 16. ASSY., PARTITION
4. BRACKET, MOTOR MOUNTING 17. ASSY., TERMINAL PANEL W/O CONT.
5. FAN MOTOR 18. ASSY., SIDE PANEL
6. FAN, 14" 19. PANEL, ACCESS
7. ASSY., FRONT PANEL 20. PLATE, FLARE VALVE
8. SCREW, FAN SET 21. VALVE, SUCTION
9. TUBE, SUCTION 22. VALVE, LIQUID
10. TUBE, DISCHARGE 23. SCREW, TRUSS HEAD PHILIP
11. ROTARY COMPRESSOR 24. SCREW, PAN HEAD TAPPING
12. GROMMET, RUBBER 25. SCREW, ROUND HEAD PHILIP
13. NUT, WITH WASHER 26. SCREW, TRUSS HEAD PHILIP
97
