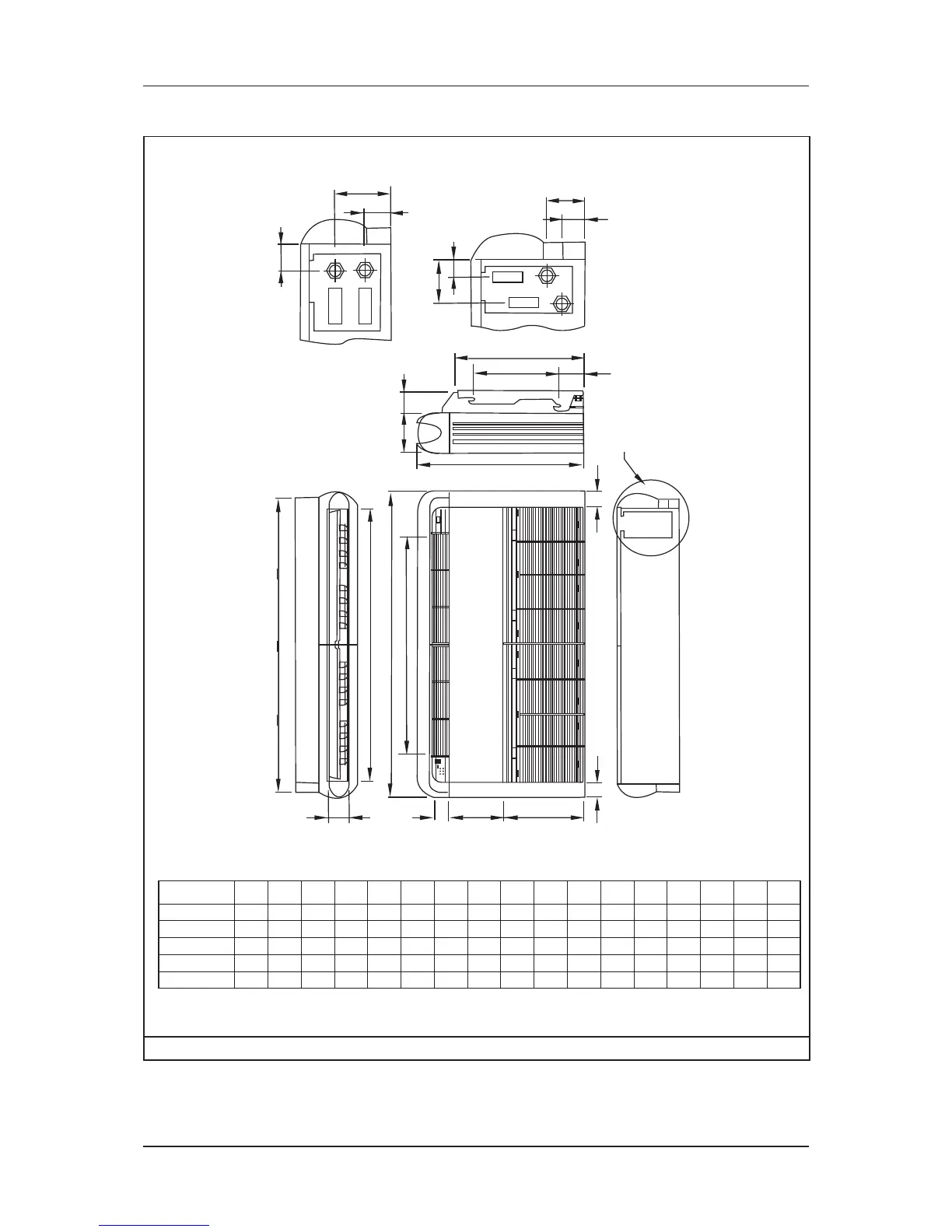

Outlines & Dimensions
76
Model: MCM20/25/30/40/50DW
A
B
C G L
D
J
K
H H
I
F
E
M
343.0
100.2
N
O
Q
P
WATER OUTLET
WATER INLET
WATER OUTLET
WATER INLET
N
Q
P
DETAIL A
DETAIL B
SEE DETAIL A FOR CE20/25DW SEE DETAIL B FOR CE30DW/40DW/50DW
Model A B C D E F G H I J K L M N O P Q
MCM20DW 1174 75 1082 68 58 156 1214 57 670 216 319 879 517 65 - 120 40
MCM25DW
1174 75 1082 68 58 156 1214 57 670 216 319 879 517 65 - 120 40
MCM30DW 1174 75 1082 68 93 156 1214 57 670 216 319 879 517 100 47 100 53
MCM40DW 1674 75 1582 68 93 156 1214 57 670 216 319 1379 517 95 40 100 45
MCM50DW 1674 75 1582 68 93 156 1214 57 670 216 319 1379 517 95 40 100 45
Note: Dimension in mm
