15
Application Information MWM-J-2009

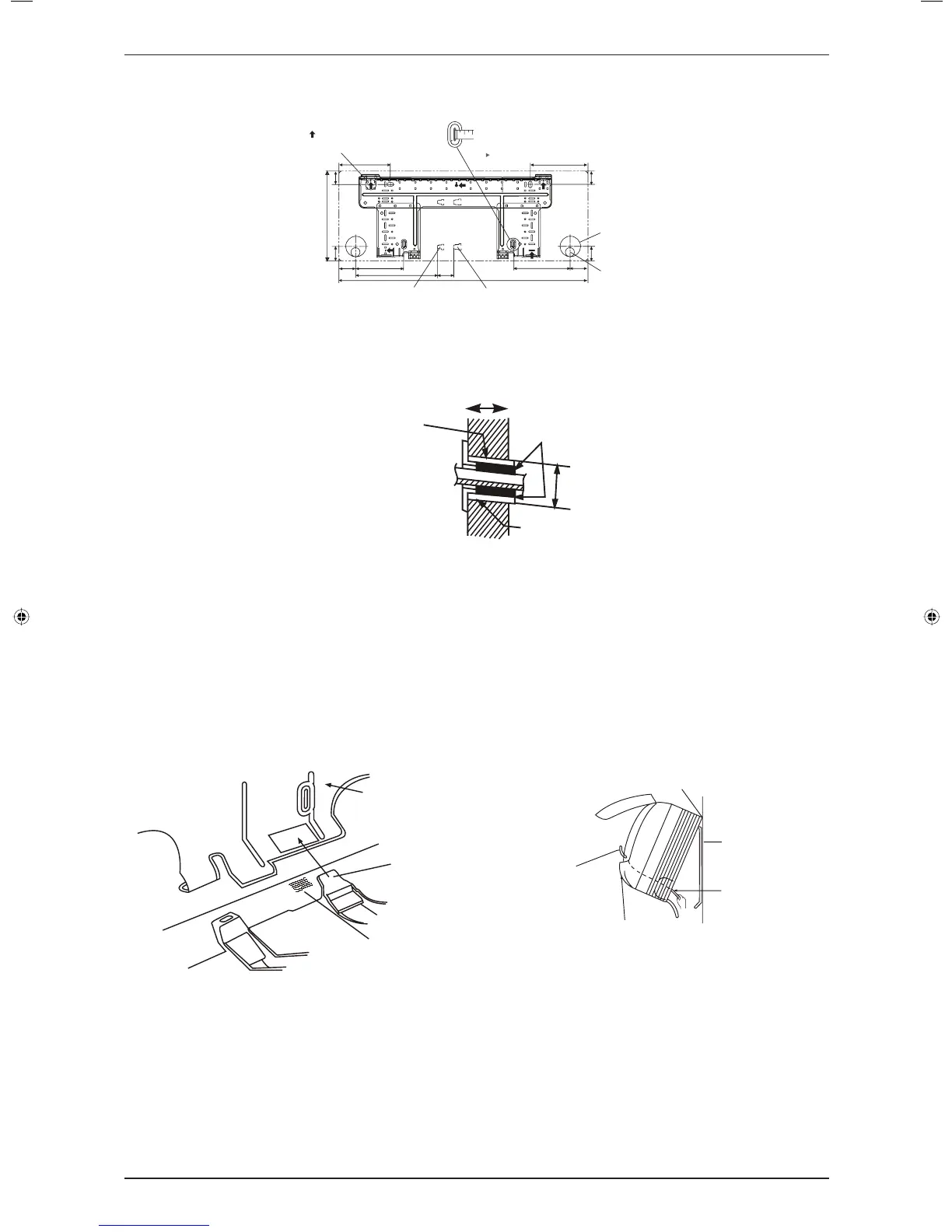

Fix the installation plate fi rmly to the wall, without tilting to left or right. Use a plumb line, if available.
Through
the wall
hole
Ø 65mm
Drain
hose
position
Recommended mounting plate
retention spots (5 spots in all)
Use tape measure as shown.
Position the end of a tape measure
at
Gas pipe end
Liquid pipe end
166
184
181.7
55554.5
153.8
263
51.9
800
45.9
42.2
288
42.2
45.9
42.2
All dimensions are in mm
In case of rear piping drawings out, drill a hole 65mm in diameter with a cone drill, slightly lower on the
outside wall.
Inside
Caulking
Outside
Wall embedded pipe
(Field supply)
Wall hole cover
(Field supply)
Wall embedded pipe
(Field supply)
Ø65
Hole with cone drill
Mounting Unit onto the Installation Plate
Hook the indoor unit onto the upper portion of the installation plate (engage the two hooks at the rear top of
the indoor unit with the upper edge of the installation plate). Ensure the hooks are properly seated onto the
installation plate by moving it to the left and right.
To attach the indoor unit, hook the claws of the bottom frame to the mounting plate. If the claws are diffi cult
to hook, remove the front grille.
To remove the indoor unit, push the marked area (at the lower part of the front grille) to release the claws.
If it is diffi cult to release, remove the front grille.
Mounting
plate
Clip
Mark (rear side)
Bottom frame
Front grille
Mounting plate
Interconnecting
wires
Hang indoor unit's hook here.
Wire guide
When stripping the
ends of interconnecting
wires in advance, bind
right ends of wires with
insulating tape.
•
•
•
•
•
