McQuay SWT028C User Manual

IM709 15
Dimensional Data

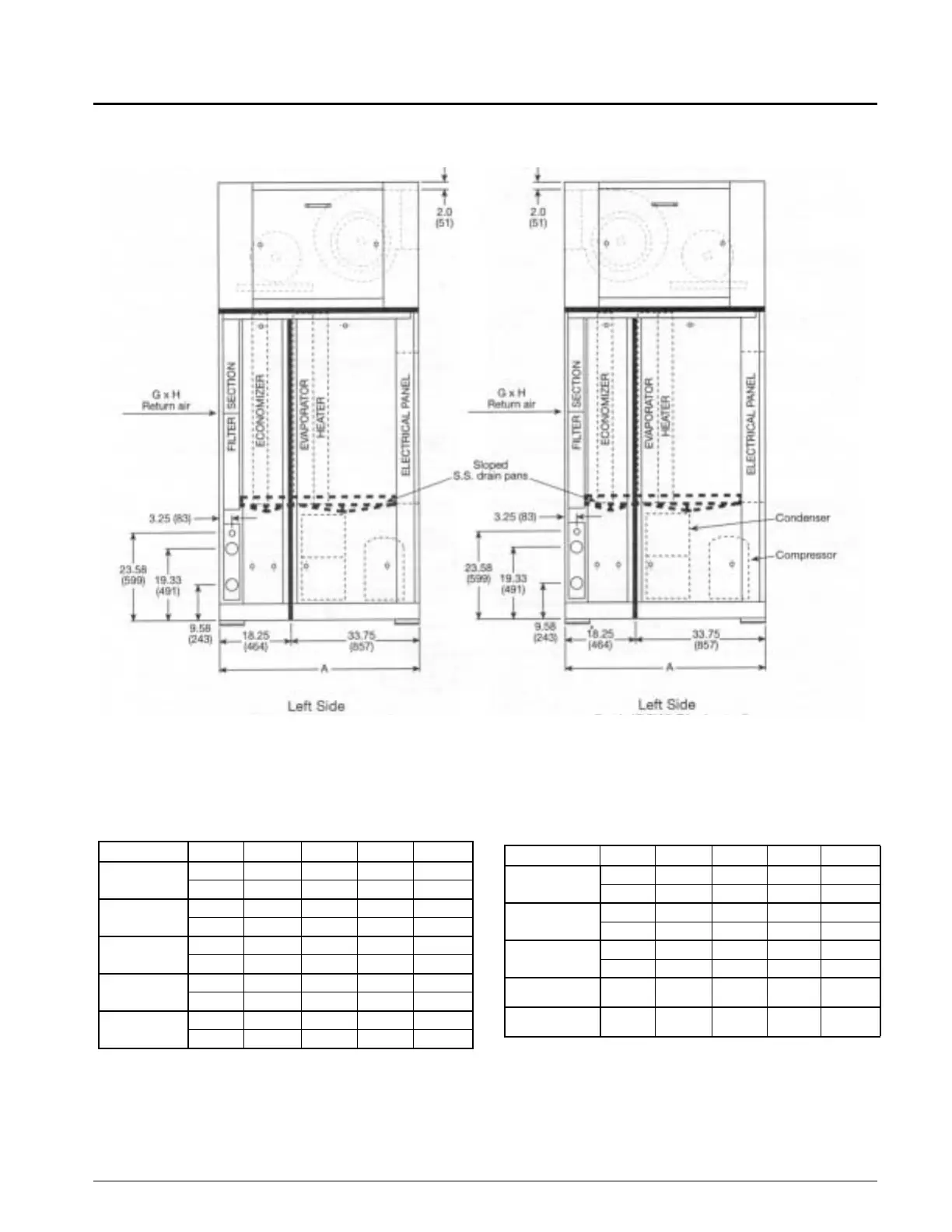

Figure 13. Left Side Front (CW) Discharge Figure 14. Left Side Back (CCW) Discharge
Note: (1) Select unit arrangement on the unit selection.
(2) There are two victaulic connections for condenser water at
module split.
Table 5.
(1) Dimensions do not include handle, latch or fastener extensions.
(2) For shipping dimensions the skid adds 4” to Depth, 8” to Length and 4” to
Height.
BASIC UNIT 018C 023C 028C 035C 040C
A. DEPTH
(1) (2)
52.00 52.00 52.00 52.00 52.00
(1321mm) (1321mm) (1321mm) (1321mm) (1321mm)
B. LENGTH
(1)
(2)
84.00 84.00 84.00 84.00 84.00
(2134mm) (2134mm) (2134mm) (2134mm) (2134mm)
C. HEIGHT
(1) (2)
112.75 112.75 112.75 112.75 112.75
(2864mm) (2864mm) (2864mm) (2864mm) (2864mm)
D. FAN
DISCHARGE
18.62 21.88 21.88 18.62 18.62
(473mm) (556mm) (556mm) (473mm) (473mm)
E. FAN
DISCHARGE
15.88 18.88 18.88 15.88 15.88
(403mm) (480mm) (480mm) (403mm) (403mm)
BASIC UNIT 018C 023C 028C 035C 040C
F. UNIT SIDE
TO FAN
32.69 31.06 31.06 23.88 23.88
(830mm) (789mm) (789mm) (606mm) (606mm)
G. RETURN DUCT
HEIGHT
45.94 45.94 45.94 45.94 45.94
(1167mm) (1167mm) (1167mm) (1167mm) (1167mm)
H. RETURN DUCT
LENGTH
80.00 80.00 80.00 80.00 80.00
(2032mm) (2032mm) (2032mm) (2032mm) (2032mm)
J. WATER OUT/IN
(ODS)
2 1/82 1/82 1/82 5/82 5/8
K. HOT WATER
OUT/IN (ODS)
1 5/8 1 5/8 1 5/8 1 5/8 1 5/8
