www.DaikinApplied.com 7 IOM 1210-1 • MAGNITUDE
®
MODEL WMC CHILLERS
Unit Dimensions and Shipping Weight

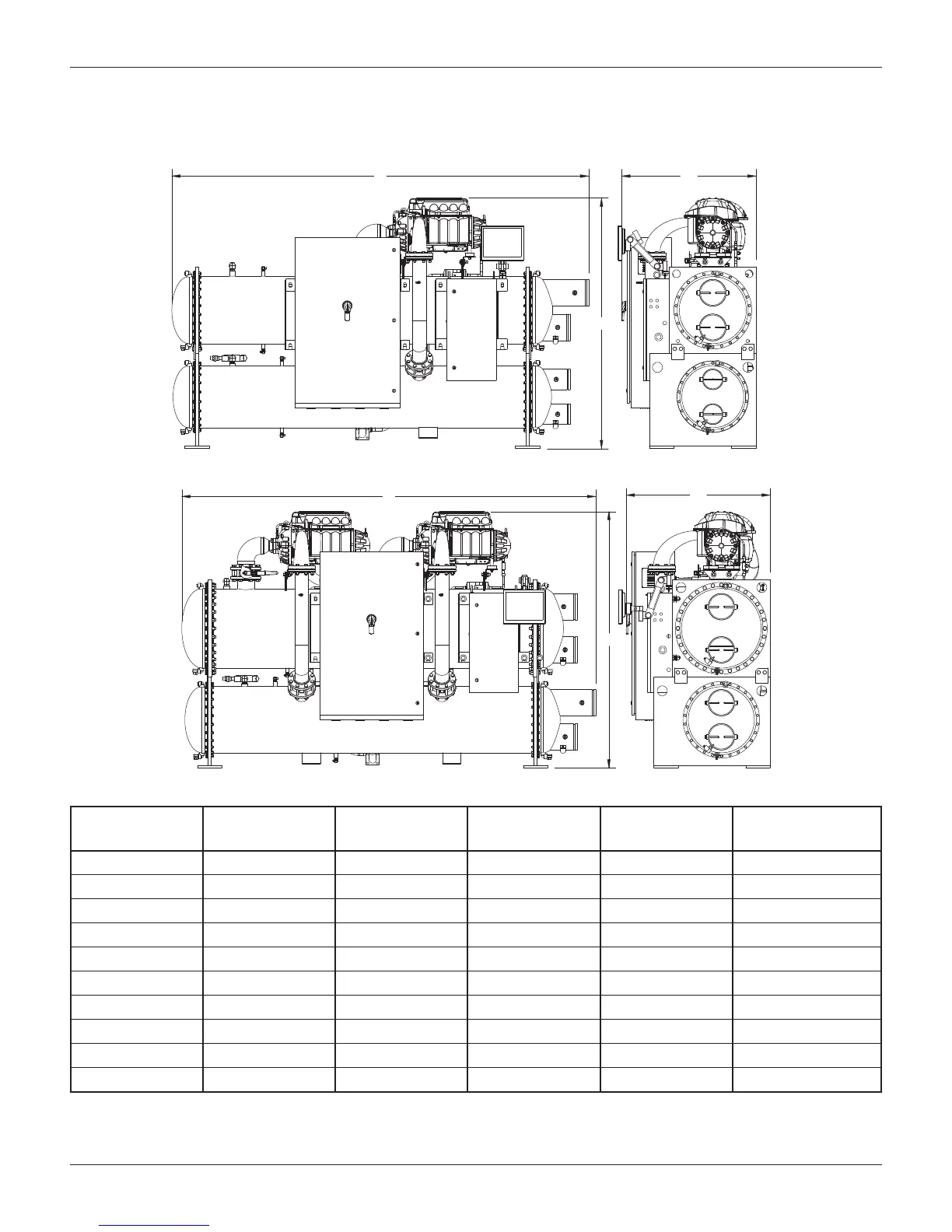

Figure 6: WMC125-200S (2-pass, right-hand conguration, with grooved connections)
Figure 7: WMC145-400D (2-pass, right-hand conguration, with grooved connections)
Table 1: WMC125-400 Dimensions and Shipping Weights
* Width is based on unit without optional harmonic lters.
** Shipping weight is based on unit with standard tube conguration.
H
L W
L
H
W
Model Heat Exchanger
Length
in (mm)
Width *
in (mm)
Height
in (mm)
Shipping Weight **
lb (kg)
WMC125S E2209 / C2009 134.3 (3411) 43.5 (1105) 81.0 (2057) 5086 (2307)
WMC145S E2209 / C2009 134.3 (3411) 43.5 (1105) 81.0 (2057) 5586 (2534)
WMC145D E2209 / C2009 134.3 (3411) 43.5 (1105) 80.8 (2052) 6760 (3066)
WMC150D E2212 / C2012 169.2 (4298) 43.5 (1105) 80.8 (2052) 7709 (3497)
WMC200S E2609 / C2209 134.2 (3409) 47.2 (1199) 82.9 (2106) 6705 (3041)
WMC225D E2609 / C2209 134.2 (3409) 47.2 (1199) 83.8 (2129) 7250 (3289)
WMC250D E2609 / C2209 134.2 (3409) 47.2 (1199) 83.8 (2129) 7850 (3561)
WMC275D E2612 / C2212 169.1 (4295) 47.2 (1199) 83.9 (2131) 8221 (3729)
WMC290D E2612 / C2212 169.1 (4295) 47.2 (1199) 83.9 (2131) 9321 (4228)
WMC400D E3012 / C2612 168.5 (4280) 55.2 (1402) 94.3 (2395) 11574 (5250)
InsTallaTIon
