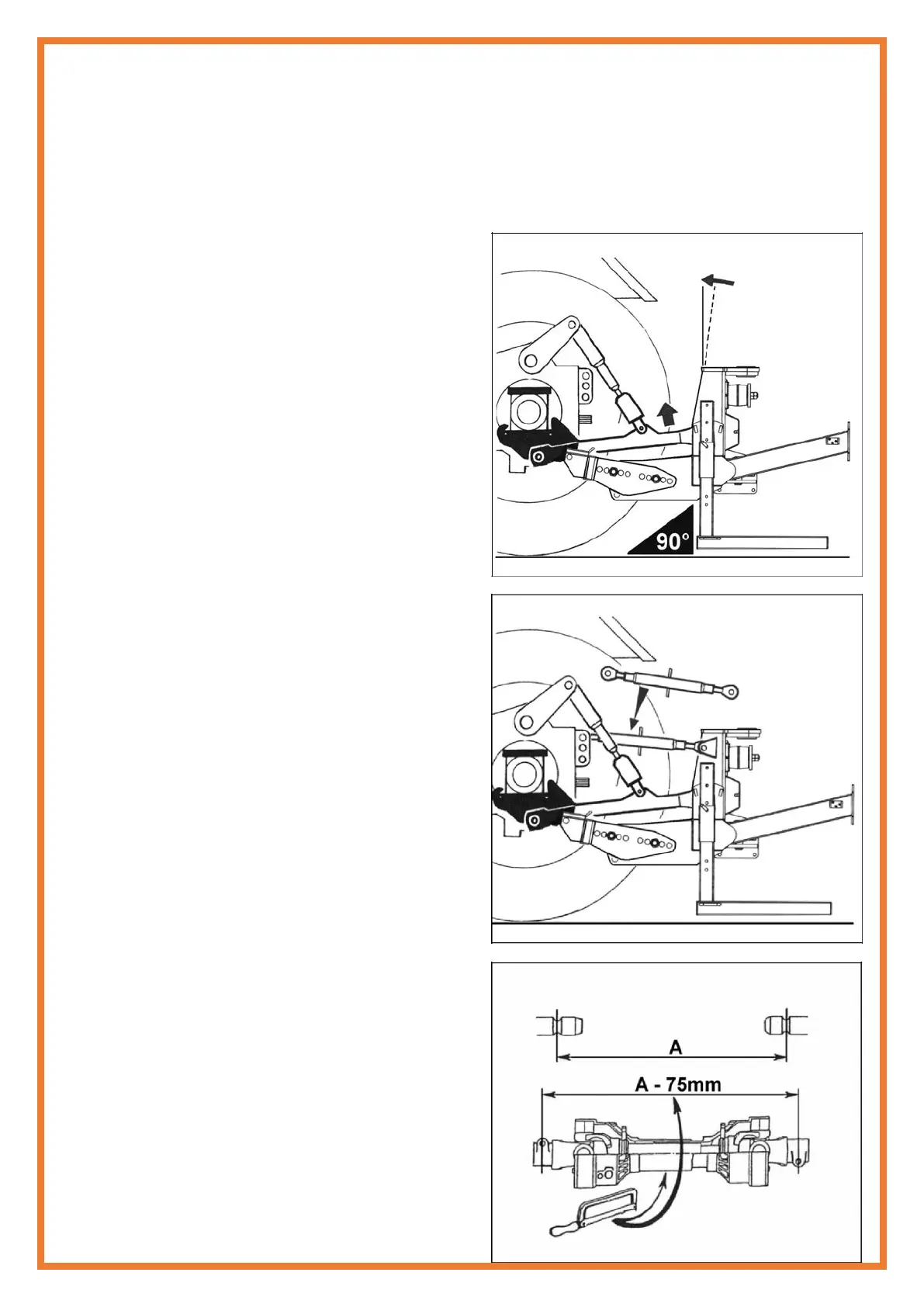

Raise the machine on the tractors
linkage until the frame is vertical.
Fit top link.
Measure PTO shaft and cut to dimension
shown (distance ‘A’ minus 75mm) –
see diagram opposite and refer to
maintenance section for further details.
NOTE:
For subsequent use on a different tractor
measure again - there must be a minimum
of 6" (150mm) of shaft overlap
