TRACTOR ATTACHMENT - BY CUSTOMER OR DEALER
Reverse tractor squarely into position
adjacent to the machine and connect
the draft links to the machine -
maneuver tractor until both draft pin
rockers are vertical.
Raise the machine on the tractor’s
linkage sufficient only for the latch
bar to fully engage in the axle catch.
WARNING!
The quadrant lever or machine
controls must only be operated from
the tractor seat. Ensure no one is
standing close to or within the linkage
arms or bars.
NOTE:
Be aware - as lift occurs the machinery
may tilt slightly.

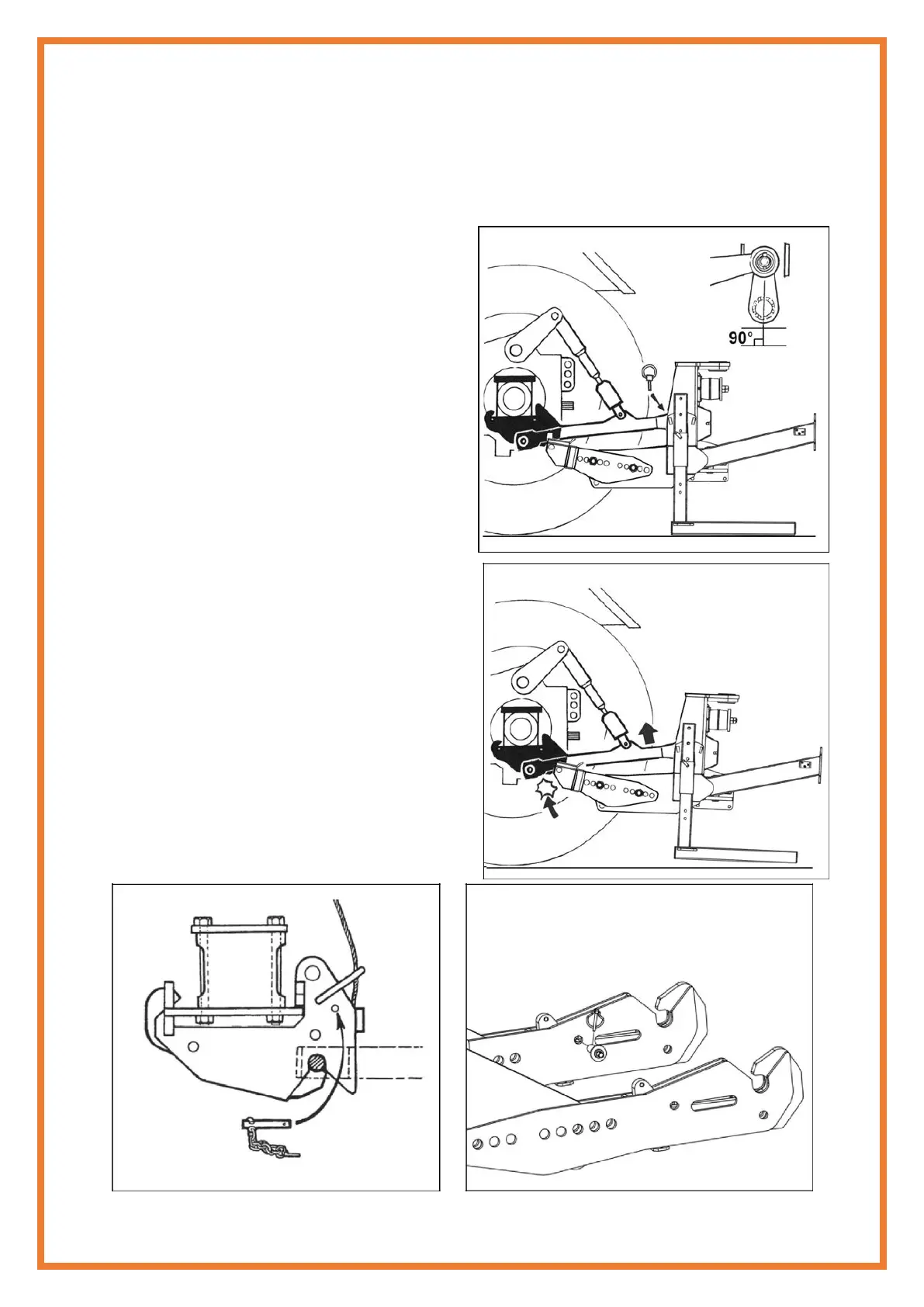

Insert catch lock pins – refer to
diagrams below for specific type
Locking Pins on this type of bracket
pass through the arms above the
latches and are secured with linch
pins.
