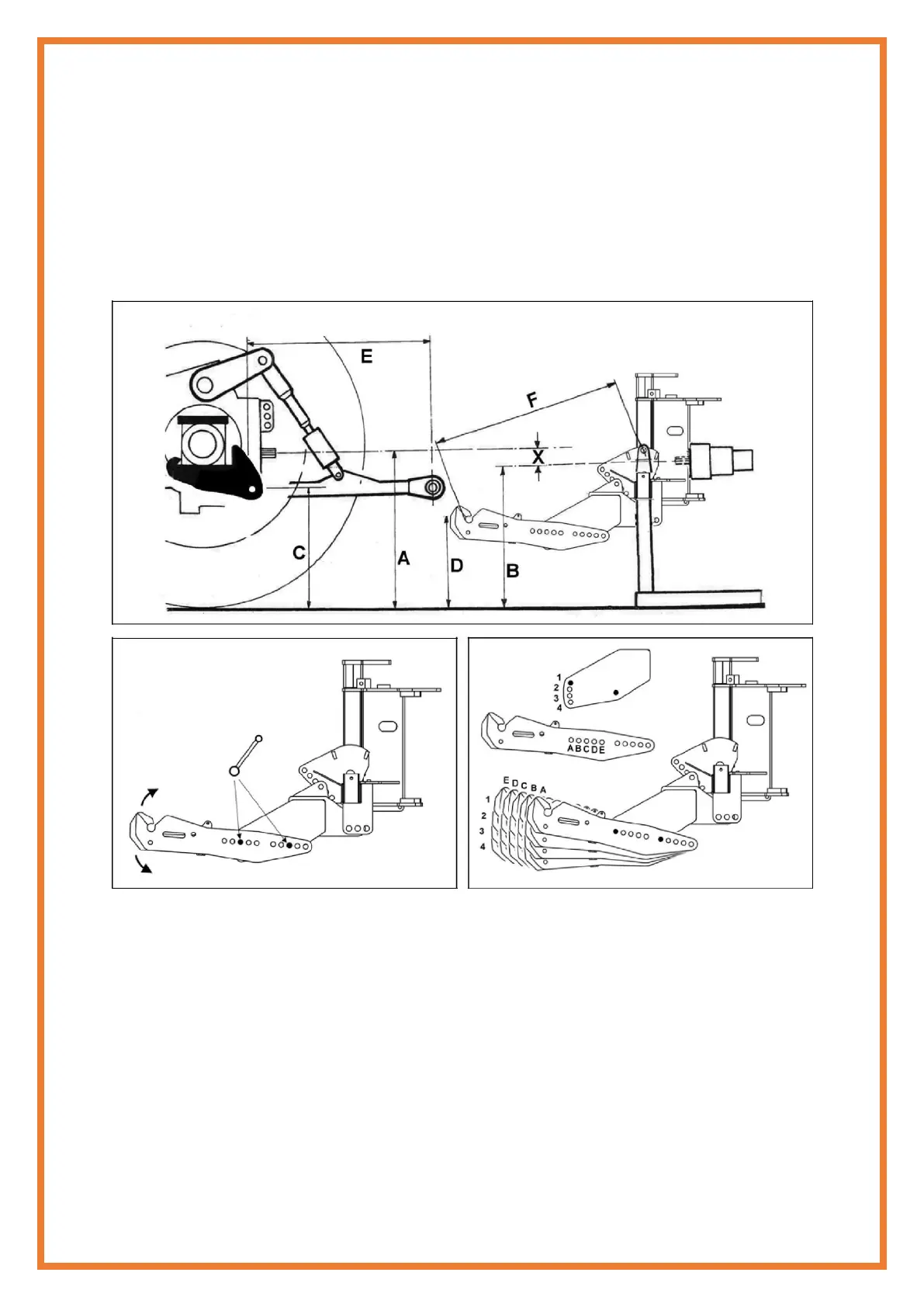

the draft link is horizontal and the rocking draft pin is in the upright position
dimensions 'E' and 'F' are equal.
ALTERNATIVE TYPE BRACKETS
With the frame in the vertical position, measure dimensions 'A' and 'B', subtract 'B'
from 'A' to obtain measurement 'X'. Measure dimension 'C'.
Select mounting holes which position the mounting bars in the end of the latch arms
so that dimension 'D' equals dimension 'C' minus measurement 'X' and also when
the draft link is horizontal and the rocking draft pin is in the upright position
dimensions 'E' and 'F' are equal.
