Page 10
Ensure catch-locking pin 'A' is removed.

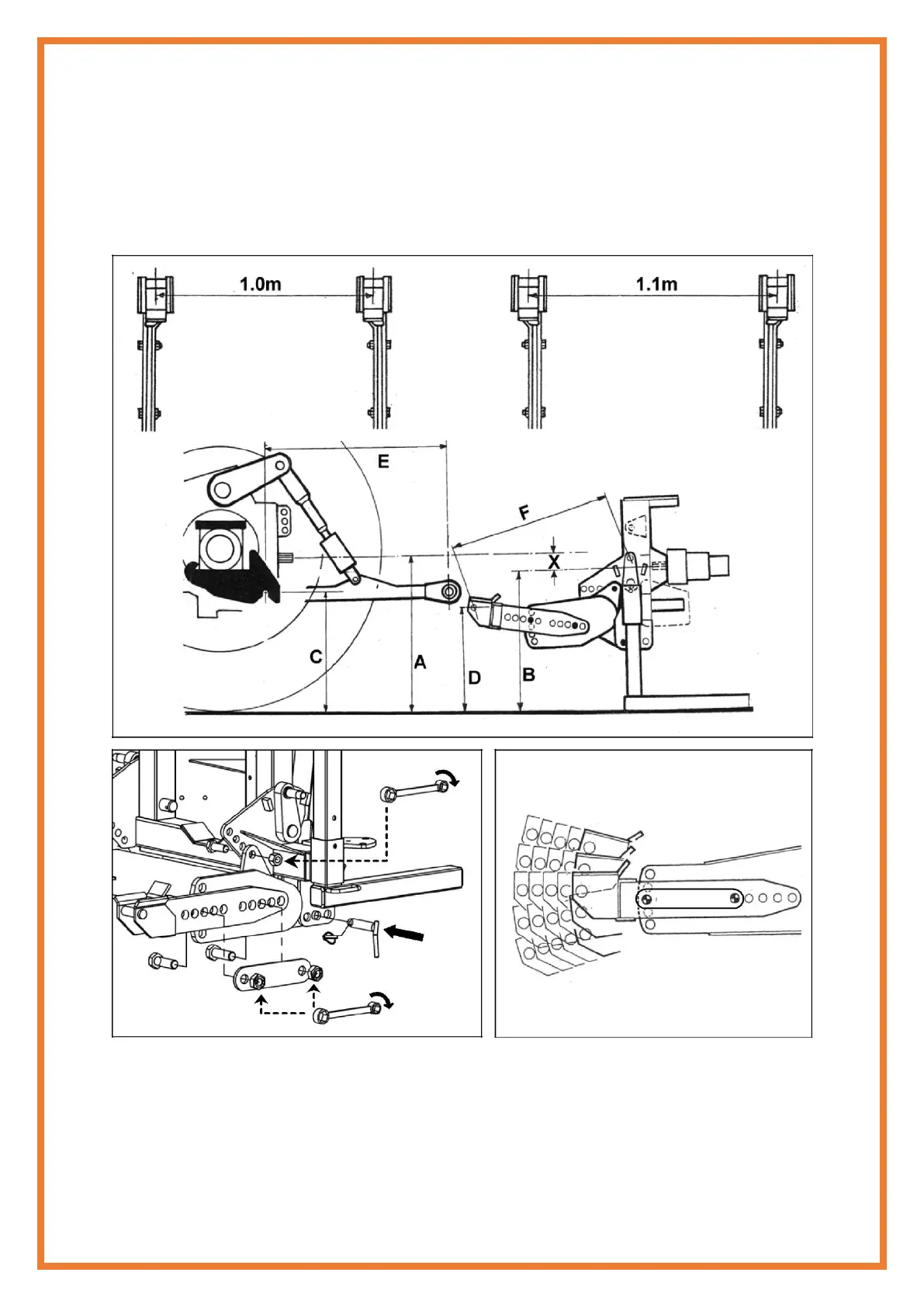

STANDARD TYPE BRACKETS
With the frame in the vertical position, measure dimensions 'A' and 'B', subtract 'B'
from 'A' to obtain measurement 'X'. Measure dimension 'C'.
Select mounting holes which position the mounting bars in the end of the latch arms
so that dimension 'D' equals dimension 'C' minus measurement 'X' and also when
