AXLE BRACKET/CATCH ASSEMBLY - FITTING BY DEALER

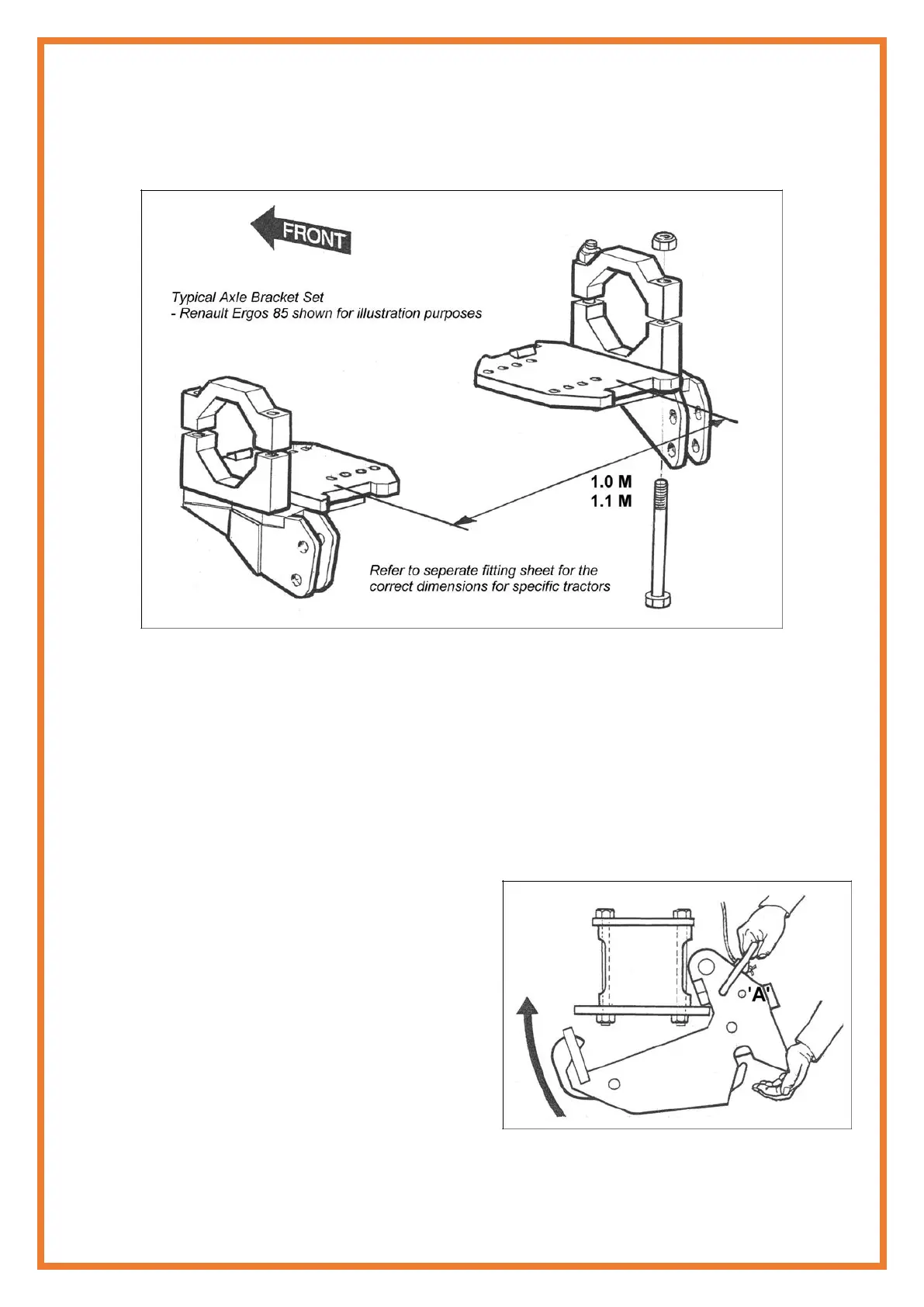

Bolt axle plates to the tractor axle at either 1.0 M or 1.1 M apart - this may
necessitate the two removal of the tractor's check chains and/or assister ram
brackets, if this is the case, the axle plate will include replacement brackets for these
functions.
The axle brackets supplied will be accompanied by a fitting sheet with instruction for
their attachment to your tractor, follow the instructions exactly as they are specific to
your particular make and model of tractor. Replace assister ram(s) if fitted.
Hook the catch assemblies onto
the rear of the axle plates, push
firmly against the plate and
vigorously pivot the catch in a
forward and up direction until the
spring-loaded hook 'snaps' into
position. Pass the release cords
up into the cab.
NOTE:
On some tractors fitted with auxiliary
fuel tanks, there is insufficient space
for the spring catches to be fitted, in
these instances special axle brackets
and catches with a
'pin on' facility are available on request.
