Page 8

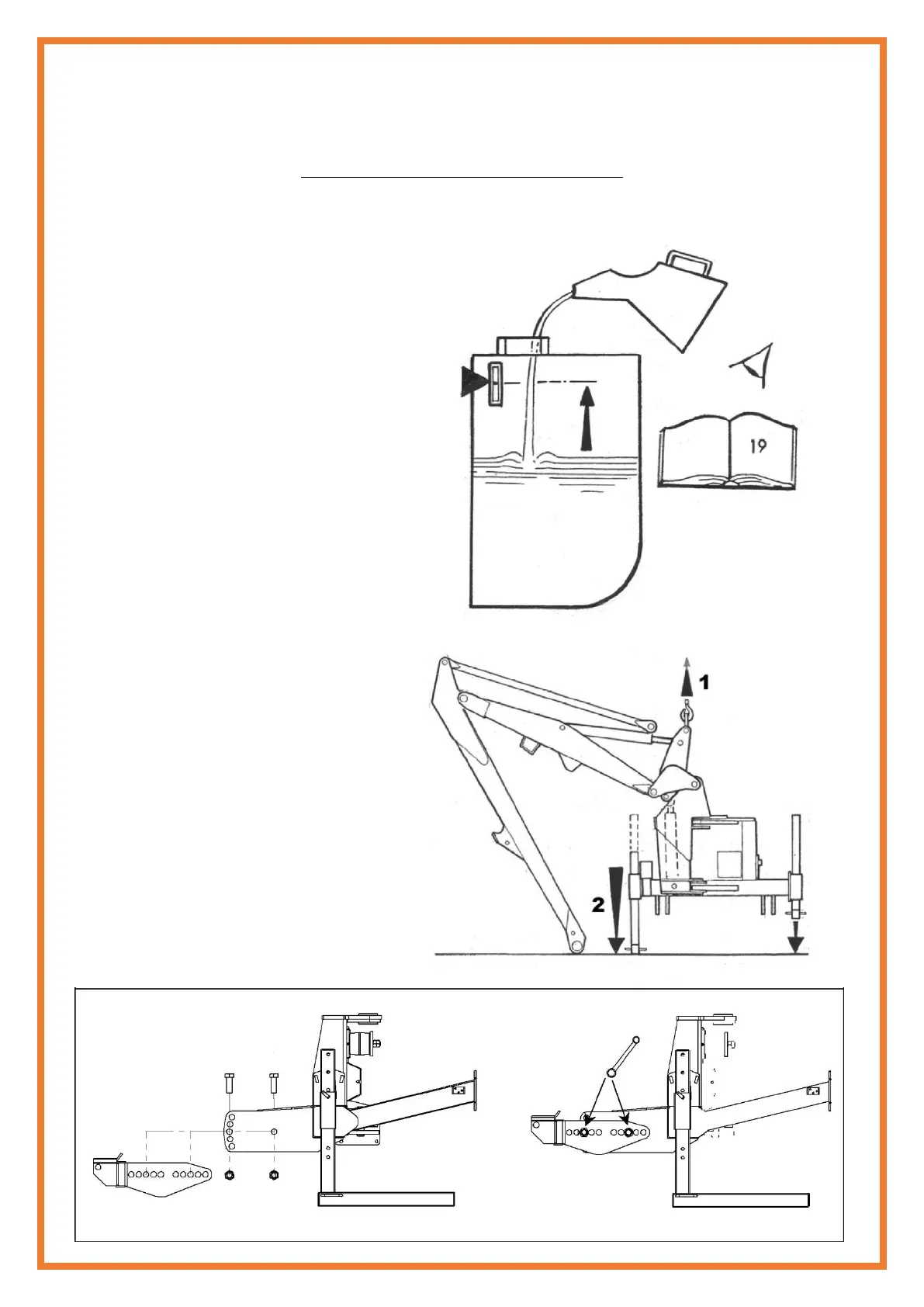

INITIAL ATTACHMENT TO TRACTOR
The machine will be delivered in a partially dismantled condition,
secured with transport strap and banding.
• Choose a firm level site.
• Remove the transport strap,
banding straps and loose items.
• Raise the machine using overhead
lifting equipment with a minimum
capacity of 1500kg SWL.
LEAVE IN POSITION AT THIS STAGE.
Lower the legs and pin in position
selecting the holes that position the
machines gearbox stub shaft approx.
75 mm below the tractors P.T.O. shaft.
Note: Leg pin position used.
• Unbolt stabiliser from machine
and remove the stabiliser nose
quadrant pin.
Locate axle-mounting arms onto the
mainframe and secure in position using
the correct nuts and bolts supplied, tighten
nuts when correct hole location has been
selected - see following page for details
on mounting hole selection.
