Request assistance. Operate 'Lift up' on machine controls sufficient only for the
dipper arm to clear the ground. Pivot out the dipper until the tension link can be
reconnected.

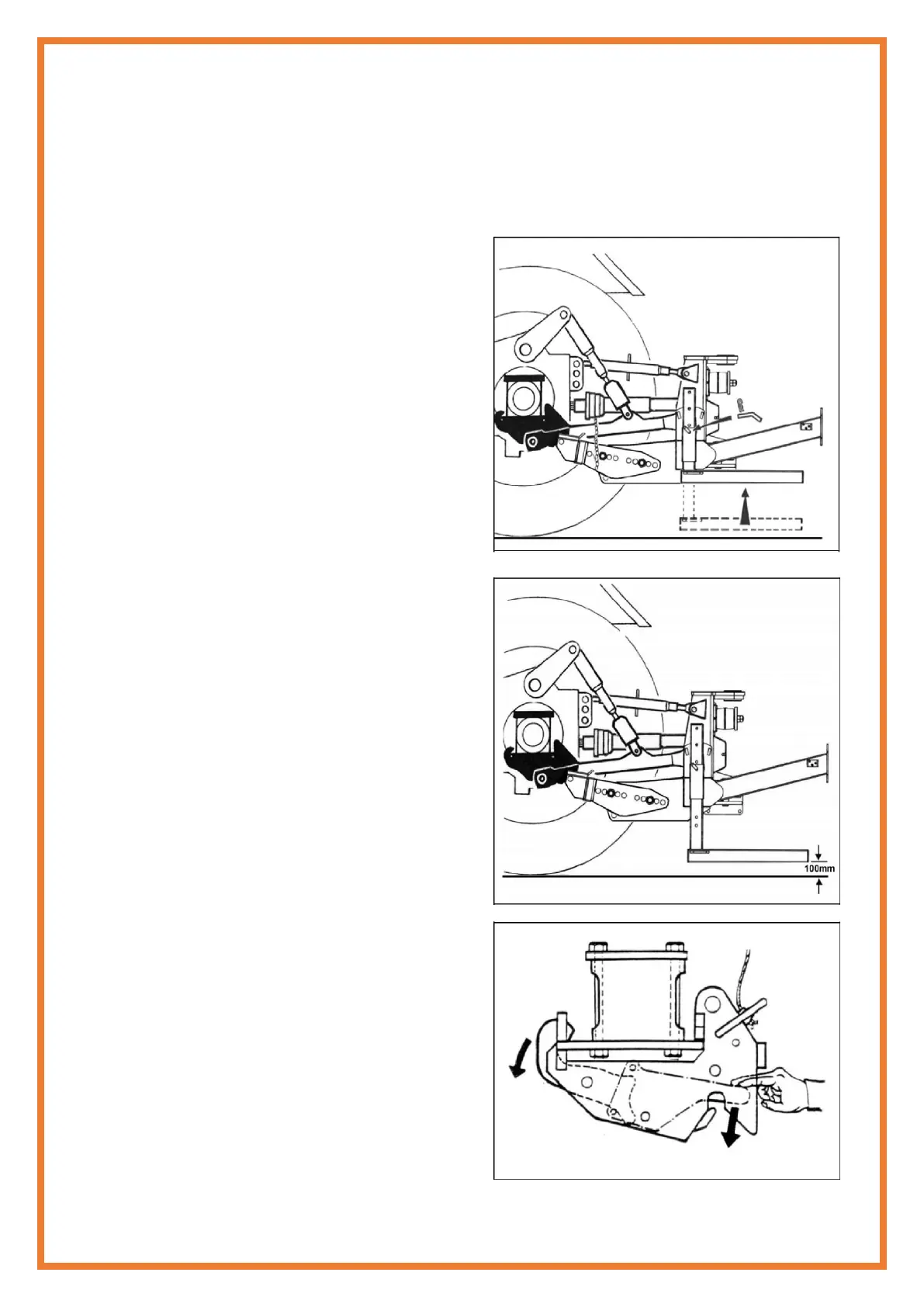

Raise the stand legs into the work position
and secure with their pins - see diagram
opposite.
Tighten check chains and/or stabilizer bars.
The machine should now be carefully
operated throughout its full range of
movements to check hoses are not being
strained, pinched, chafed or kinked, and that
all movements are functioning correctly.
The machine can now be folded into the
transport position ready to proceed to the
work site - Refer to the section on Transport
Position for details on this subject.
REMOVAL FROM TRACTOR
Select a firm safe site to remove the
machine
Locate parking legs into their housings.
NOTE: The correct, and most stable,
position for removing the machine from the
tractor is with the arm positioned to the rear
of the machine.
Position the flail head on the ground directly
to the rear of the machine at approximately
half reach.
Disengage PTO.
Remove latch security pins.
Locate parking legs into their housings.
Take machine weight on draft links sufficient
only to allow the top link to be disconnected.
Open axle catches using the release cord
and lower the machine.
Disconnect draft links and remove the PTO
shaft.
Remove the axle catches from the tractor.
