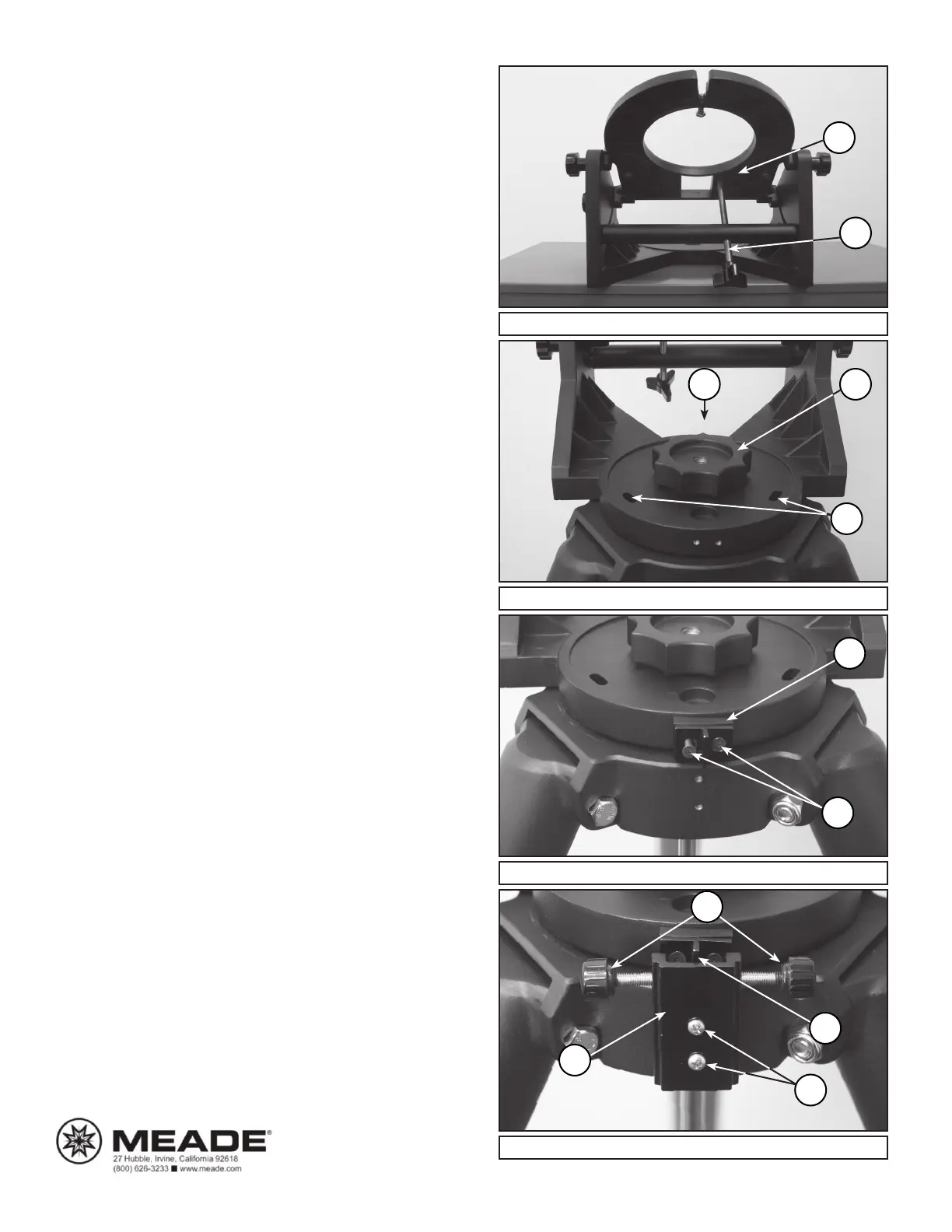

Fig. 2: read Latitude Adjustment Screw
Fig. 3: Attach to Tripod
Fig. 4: Attach Azimuth Arm
Fig. 5: Attach Azimuth Base
1
1
1
1
2
2
2
3
4
2
2
2. Attach the azimuth arm with the spacer block (1, Fig. 4) to the wedge
body using the two 8-32 x 1/2” at-head machine screws (2, Fig 4).
3. Attach the azimuth base (1, Fig. 5) to the tripod using the two 8-32 x 1”
round-head machine screws (2, Fig 5).
4. Thread the two azimuth adjustment knobs (3, Fig. 5) into the azimuth
base, until they just touch the azimuth arm (4, Fig. 5).
USING THE AZIMUTH CONTROL
1. To adjust the wedge in azimuth, slightly loosen the 3” central manual
knob and three 5/16” button head screws on the wedge oor. NOTE:
Never adjust the azimuth controls when the 3” central manual knob
or three 5/16” button head screws are tight. Damage to the wedge
or hardware may occur.
2. Rotate the wedge by using the two azimuth knobs(3, Fig 5) in a push-
pull manner.
3. After positioning the wedge, tighten the central manual knob and three
5/16” button head screws until rm.
MEADE CUSTOMER SERVICE
If you have a question concerning your Meade Wedge, contact the Meade Instru-
ments Customer Service Department at: Telephone: (800) 626-3233 or Email:
customerservice@meade.com
Customer Service hours are 7:00 AM to 4:00 PM, Pacic Time, Monday through
Friday. In the unlikely event that your Meade Wedge requires factory servicing
or repairs, write or call the Meade Customer Service Department rst, before re-
turning the telescope to the factory, giving full particulars as to the nature of the
problem, as well as your name, address, and daytime telephone number. The great
majority of servicing issues can be resolved by telephone, avoiding return of the
telescope to the factory. If factory service is required, you will be assigned a Return
Goods Authorization (RGA) number prior to return.
MEADE LIMITED WARRANTY
Every Meade telescope, spotting scope, and telescope accessory is warranted
by Meade Instruments Corporation (“Meade”) to be free of defects in materials
and workmanship for a period of ONE YEAR from the date of original purchase
in the U.S.A. and Canada. Meade will repair or replace a product, or part thereof,
found by Meade to be defective, provided the defective part is returned to Me-
ade, freight-prepaid, with proof of purchase. This warranty applies to the original
purchaser only and is non-transferable. Meade products purchased outside North
America are not included in this warranty, but are covered under separate warran-
ties issued by Meade international distributors.
RGA Number Required: Prior to the return of any product or part, a Return Goods
Authorization (RGA) number must be obtained from Meade by writing, or calling
(800) 626-3233. Each returned part or product must include a written statement
detailing the nature of the claimed defect, as well as the owner’s name, address,
and phone number.
This warranty is not valid in cases where the product has been abused or mishan-
dled, where unauthorized repairs have been attempted or performed, or where
depreciation of the product is due to normal wear-and-tear. Meade specically dis-
claims special, indirect, or consequential damages or lost prot which may result
from a breach of this warranty. Any implied warranties which cannot be disclaimed
are hereby limited to a term of one year from the date of original retail purchase.
This warranty gives you specic rights. You may have other rights which vary from
state to state. Meade reserves the right to change product specications or to dis-
continue products without notice.
