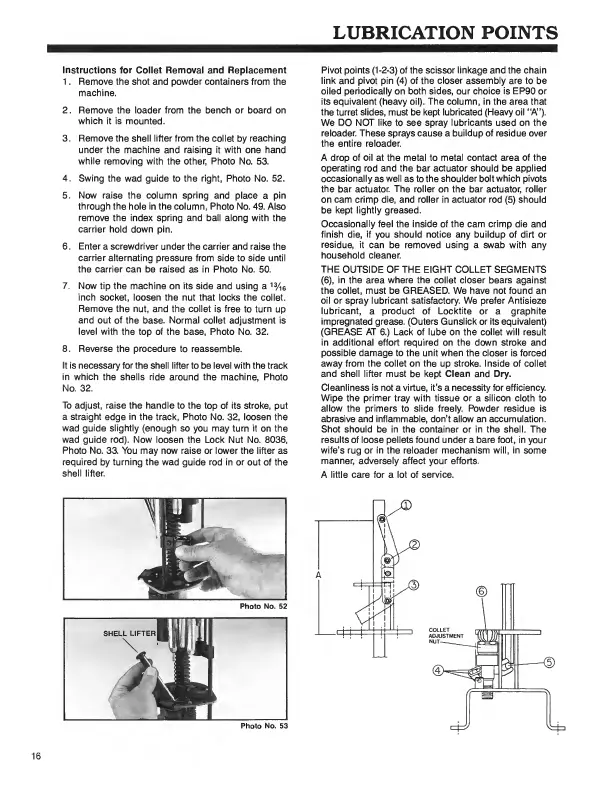

LUBRICATION POINTS
Instructions for Collet Removal and Replacement
1. Remove the shot and powder containers from the
machine.
2. Remove the loader from the bench or board on
which it is mounted.
3. Remove the shell lifter from the collet by reaching
under the machine and raising it with one hand
while removing with the other, Photo No. 53.
4. Swing the wad guide to the right, Photo No. 52.
5. Now raise the column spring and place a pin
through the hole in the column, Photo No. 49. Also
remove the index spring and ball along with the
carrier hold down pin.
6. Enter a screwdriver under the carrier and raise the
carrier alternating pressure from side to side until
the carrier can be raised as in Photo No. 50.
7. Now tip the machine on its side and using a 13 / 16
inch socket, loosen the nut that locks the collet.
Remove the nut, and the collet is free to turn up
and out of the base. Normal collet adjustment is
level with the top of the base, Photo No. 32.
8. Reverse the procedure to reassemble.
It is necessary for the shell lifter to be level with the track
in which the shells ride around the machine, Photo
No. 32.
To adjust, raise the handle to the top of its stroke, put
a straight edge in the track, Photo No. 32, loosen the
wad guide slightly (enough so you may turn it on the
wad guide rod). Now loosen the Lock Nut No. 8036,
Photo No. 33. You may now raise or lower the lifter as
required by turning the wad guide rod in or out of the
shell lifter.
Photo No. 53
Pivot points (1-2-3) of the scissor linkage and the chain
link and pivot pin (4) of the closer assembly are to be
oiled periodically on both sides, our choice is EP90 or
its equivalent (heavy oil). The column, in the area that
the turret slides, must be kept lubricated (Heavy oil “A”).
We DO NOT like to see spray lubricants used on the
reloader. These sprays cause a buildup of residue over
the entire reloader.
A drop of oil at the metal to metal contact area of the
operating rod and the bar actuator should be applied
occasionally as well as to the shoulder bolt which pivots
the bar actuator. The roller on the bar actuator, roller
on cam crimp die, and roller in actuator rod (5) should
be kept lightly greased.
Occasionally feel the inside of the cam crimp die and
finish die, if you should notice any buildup of dirt or
residue, it can be removed using a swab with any
household cleaner.
THE OUTSIDE OF THE EIGHT COLLET SEGMENTS
(6), in the area where the collet closer bears against
the collet, must be GREASED. We have not found an
oil or spray lubricant satisfactory. We prefer Antisieze
lubricant, a product of Locktite or a graphite
impregnated grease. (Outers Gunslick or its equivalent)
(GREASE AT 6.) Lack of lube on the collet will result
in additional effort required on the down stroke and
possible damage to the unit when the closer is forced
away from the collet on the up stroke. Inside of collet
and shell lifter must be kept Clean and Dry.
Cleanliness is not a virtue, it’s a necessity for efficiency.
Wipe the primer tray with tissue or a silicon cloth to
allow the primers to slide freely. Powder residue is
abrasive and inflammable, don’t allow an accumulation.
Shot should be in the container or in the shell. The
results of loose pellets found under a bare foot, in your
wife’s rug or in the reloader mechanism will, in some
manner, adversely affect your efforts.
A little care for a lot of service.
