Mec 8567 Grabber - Parts List

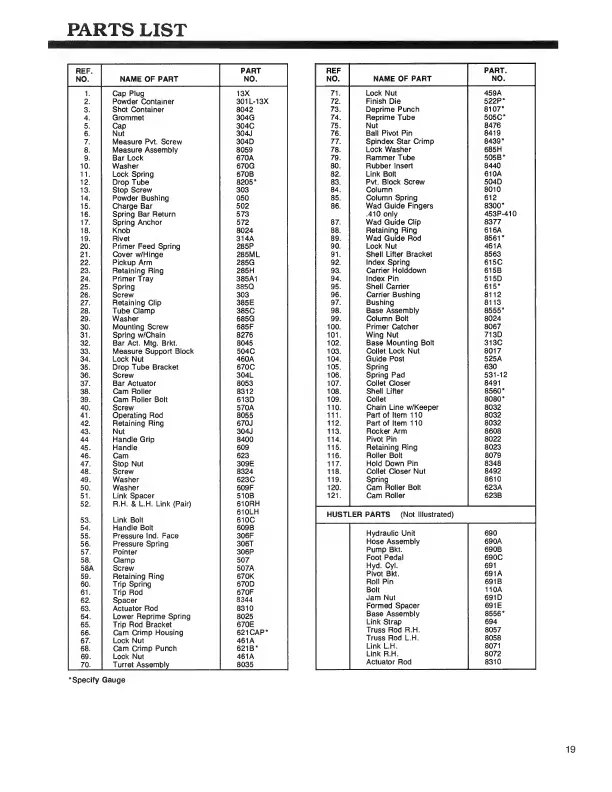

PARTS LIST
REF.
NO.
NAME OF PART
PART
NO.
1 .
Cap Plug
13X
2.
Powder Container
301L-13X
3. Shot Container
8042
4.
Grommet 304G
5. Cap 304C
6. Nut
304J
7.
Measure Pvt. Screw
304D
8. Measure Assembly
8059
9.
Bar Lock 670A
10.
Washer 670G
11. Lock Spring
670B
12.
Drop Tube
8205’
13. Stop Screw
303
Powder Bushing
050
15. Charge Bar
502
16. Spring Bar Return 573
17. Spring Anchor 572
18. Knob 8024
19. Rivet 314A
20. Primer Feed Spring 285P
21. Cover w/Hinge
285ML
22.
Pickup Arm 285G
23. Retaining Ring 285H
24. Primer Tray 385A1
25. Spring
385Q
26.
Screw 303
27.
Retaining Clip
385E
28.
Tube Clamp 385C
29.
Washer
685G
30.
Mounting Screw 685F
31.
Spring w/Chain 8276
32. Bar Act. Mtg. Brkt. 8045
33.
Measure Support Block
504C
34. Lock Nut
460A
35.
Drop Tube Bracket 670C
36.
Screw
304L
37. Bar Actuator 8053
38.
Cam Roller
8312
39. Cam Roller Bolt 613D
40. Screw
570A
Operating Rod 8055
42. Retaining Ring 670J
43. Nut
304J
44 Handle Grip 8400
45.
Handle
609
46.
Cam 623
47.
Stop Nut
309E
48.
Screw 8324
49. Washer 623C
50. Washer 609F
51. Link Spacer
510B
52.
R.H. & L.H. Link (Pair)
610RH
610LH
53. Link Bolt
610C
54. Handle Bolt
609B
55. Pressure Ind. Face
306F
56. Pressure Spring
306T
57.
Pointer 306P
58. 507
58A 507A
59. Retaining Ring 670K
60. Trip Spring 670D
61.
Trip Rod 670F
62.
Spacer
8344
63.
Actuator Rod 8310
64. Lower Reprime Spring 8025
65. Trip Rod Bracket
670E
66.
Cam Crimp Housing
621 CAP*
67. Lock Nut 461A
68.
Cam Crimp Punch
621B*
69.
Lock Nut
461A
70.
Turret Assembly 8035
REF
PART.
NO.
NAME OF PART
NO.
71. Lock Nut 459A
72.
Finish Die 522P*
73.
Deprime Punch
8107*
74. Reprime Tube 505C*
75.
Nut 8476
76.
Ball Pivot Pin 8419
77. Spindex Star Crimp 8439*
78.
Lock Washer
685H
79. Rammer Tube
505B*
80. Rubber Insert
8440
82. Link Bolt
610A
83. Pvt. Block Screw
504D
84. Column
8010
85. Column Spring
612
86. Wad Guide Fingers
8300*
.410 only
453P-410
87. Wad Guide Clip
8377
88.
Retaining Ring 616A
89.
Wad Guide Rod 8561*
90. Lock Nut
461A
91.
Shell Lifter Bracket 8563
92. Index Spring 615C
93.
Carrier Holddown
615B
94. Index Pin
515D
95.
Shell Carrier 615*
96. Carrier Bushing
8112
97. Bushing 8113
98. Base Assembly 8555*
99. Column Bolt
8024
100. Primer Catcher
8067
101.
Wing Nut
713D
102. Base Mounting Bolt 313C
103. Collet Lock Nut
8017
104. Guide Post
525A
105. Spring 630
106. Spring Pad
531-12
107. Collet Closer
8491
108.
Shell Lifter
8560*
109.
Collet 8080*
110.
Chain Line w/Keeper 8032
111. Part of Item 110 8032
112. Part of Item 110
8032
113.
Rocker Arm 8608
114. Pivot Pin
8022
115.
Retaining Ring
8023
116.
Roller Bolt
8079
117.
Hold Down Pin
8348
118.
Collet Closer Nut
8492
119. Spring
8610
120.
Cam Roller Bolt 623A
121. Cam Roller 623B
HUSTLER PARTS (Not Illustrated)
Hydraulic Unit 690
Hose Assembly
690A
Pump Bkt.
690B
Foot Pedal
690C
Hyd. Cyl.
691
Pivot Bkt. 691A
Roll Pin
691B
Bolt
110A
Jam Nut 691D
Formed Spacer
691E
Base Assembly
8556’
Link Strap
694
Truss Rod R.H. 8057
Truss Rod L.H.
8058
Link L.H.
8071
Link R.H.
8072
Actuator Rod 8310
'Specify Gauge
