mecair DPS - Fuses

3
A
B
F
C
G
D
E
N.O. N.C.
COM
N.O. N.C.
COM
N.C. 4-20mA+
4-20mA-
0V 115VAC
230VAC
Contact shown are without power supply

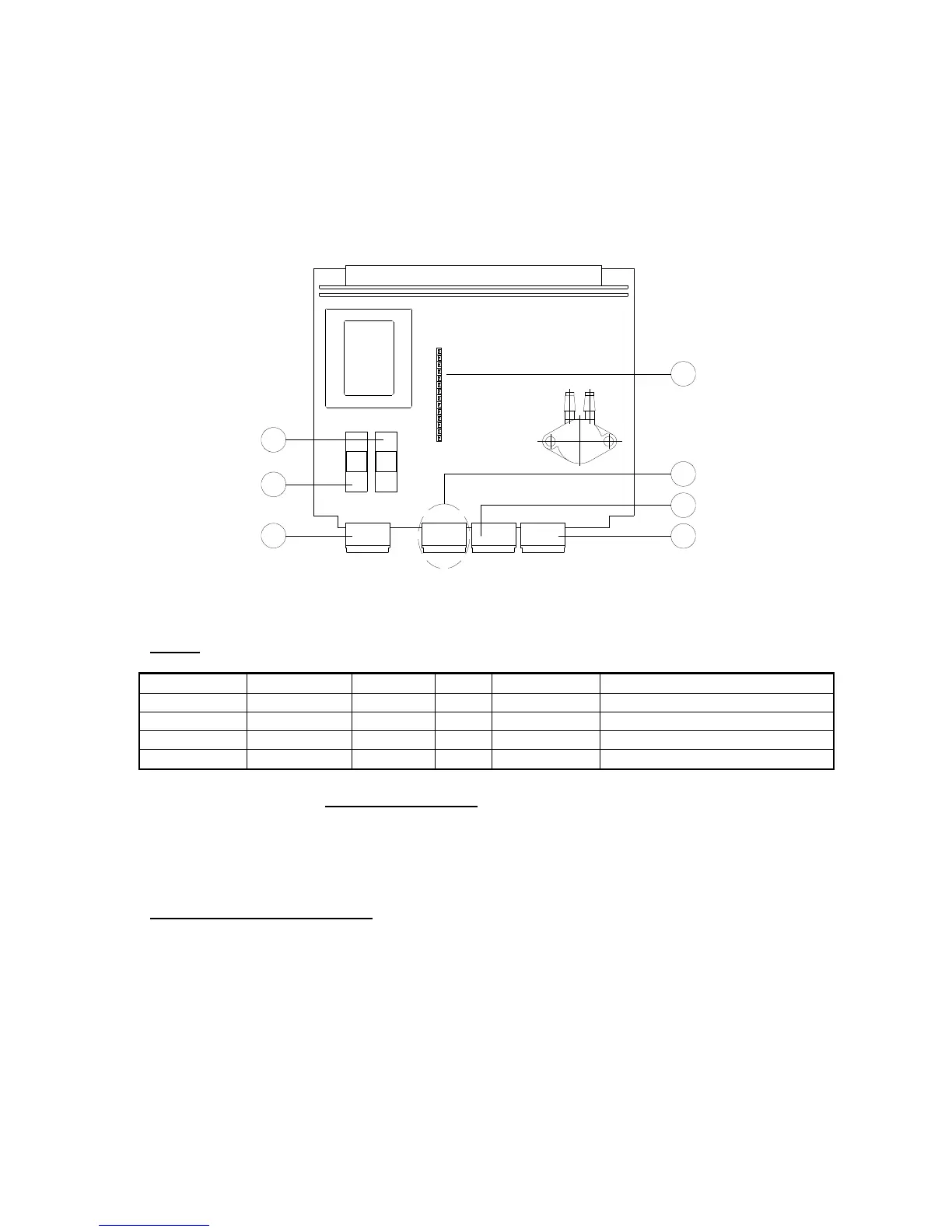

3. FUSES
Name Dimensions Value Type Drawing Description
F1 5 x 20 100 mA T
[ A ]
Supply mains 230 V
F2 5 x 20 250 mA T
[ B ]
Supply mains 115 V
F1 5 x 20 630 mA T
[ A ]
Supply mains 24 V
F2 5 x 20 315 mA T
[ B ]
Supply mains 48 V
In case of replacement, it is compulsory to respect the value indicated on the table
4. PNEUMATIC CONNECTIONS
The instruments is supplied with two filtering taps to be used to connect the instrument and the areas to be
measured.
Use a 4/6 rilsan hose.
