MechMaxx 420cc - Assembly; Axle; Wheels; Base Foot

ASSEMBLY
ASSEMBLY

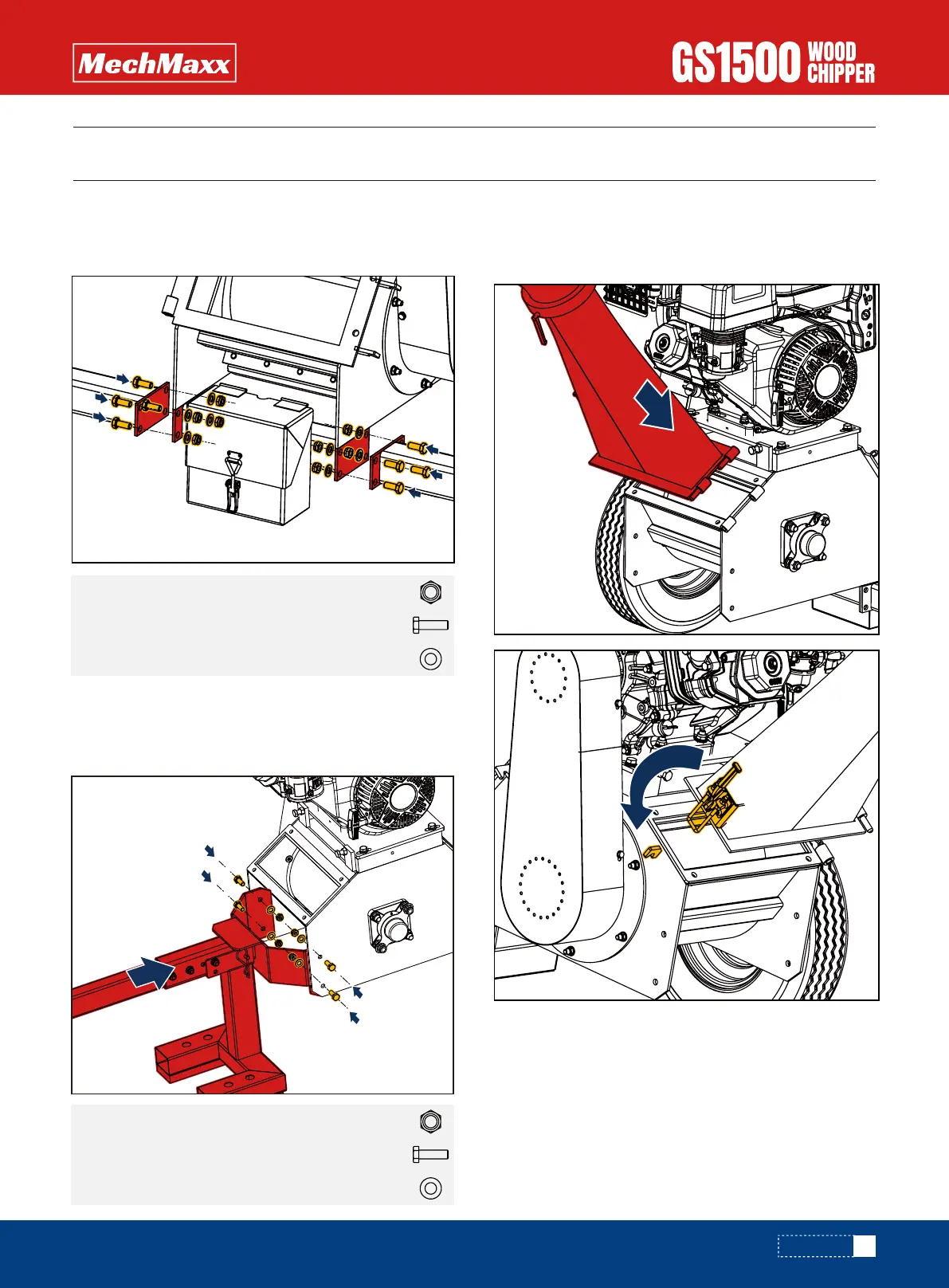

Attach the wheel axle to the base frame with M10x25 hex
bolts,flat washer 10 and M10 lock nuts.(See Figure 1)
Attach the tow bar to the base frame with M10x25 hex
bolts,flat washer 10 and M10 lock nuts. (See Figure 2)
Install the discharge bucket on the base and close a
safety clip (see Figure 3/4).
11
www. mechmaxx.com
Hex lock nut M108X
Hex bolt M10 X 25mm
Flat washer 10
8X
8X
Hex lock nut M104X
Hex bolt M10 X 25mm
Flat washer 10
4X
4X
Wheels
Figure 1
Figure 3
Figure 4
Lower discharging chute
Tow bar
