Loosen the wing screw on the
pedal, Attach the Pedal to the Drum Pad.
Locate the pedal to the proper
position and tighten with wing screw.

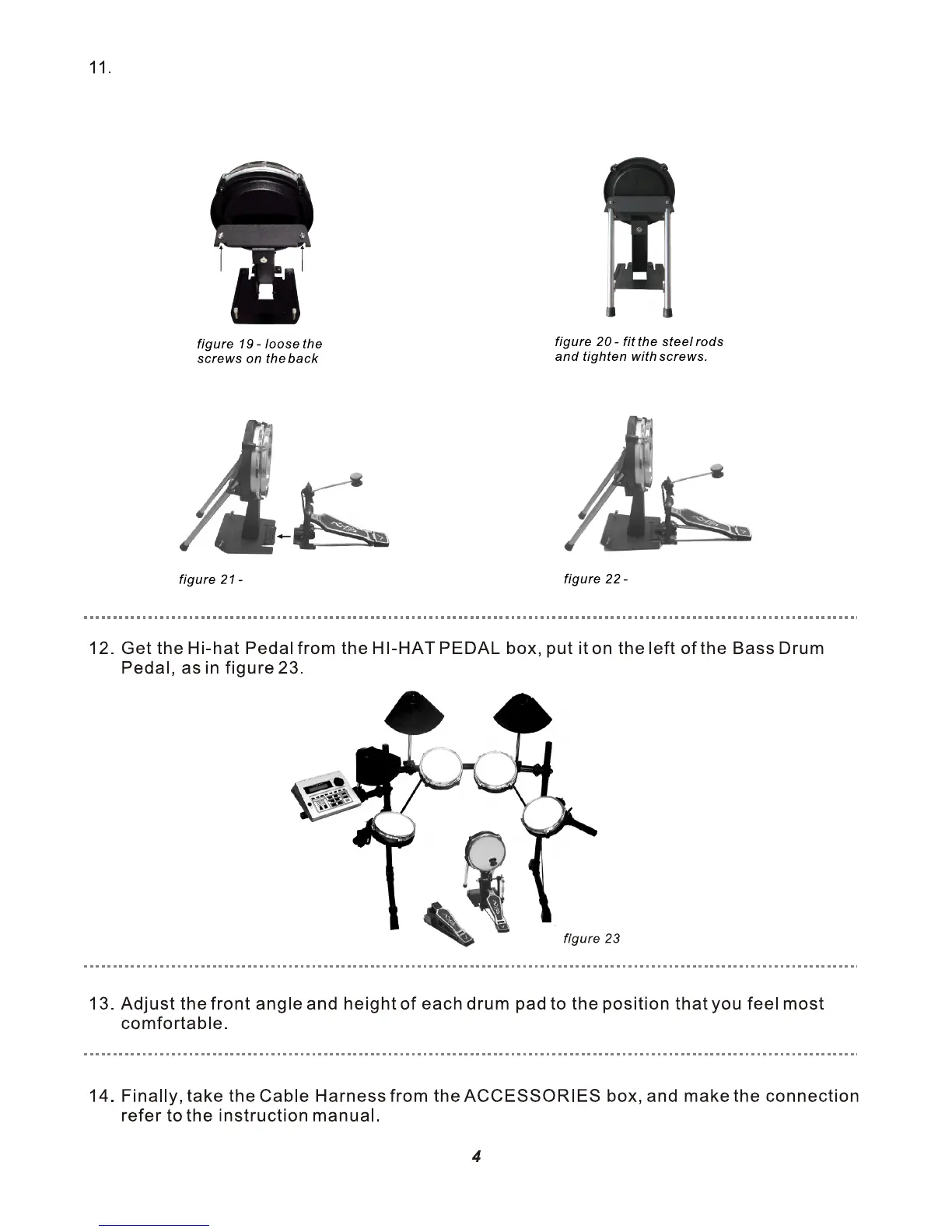

Unpack the BASS DRUM PEDAL box and take the Pedal and Drum Pad, then get a pair of
Steel Rods from the ACCESSORIES box, and fit onto the back of the Bass Drum Pedal unit
completed (see figure 19&20)
Attach the Drum Pedal to the Drum Pad, tighten with the wing screw.(see figure 21&22).
