Medem SEC-B - Method Two

9
00241
Electrical contactor
SEC-B

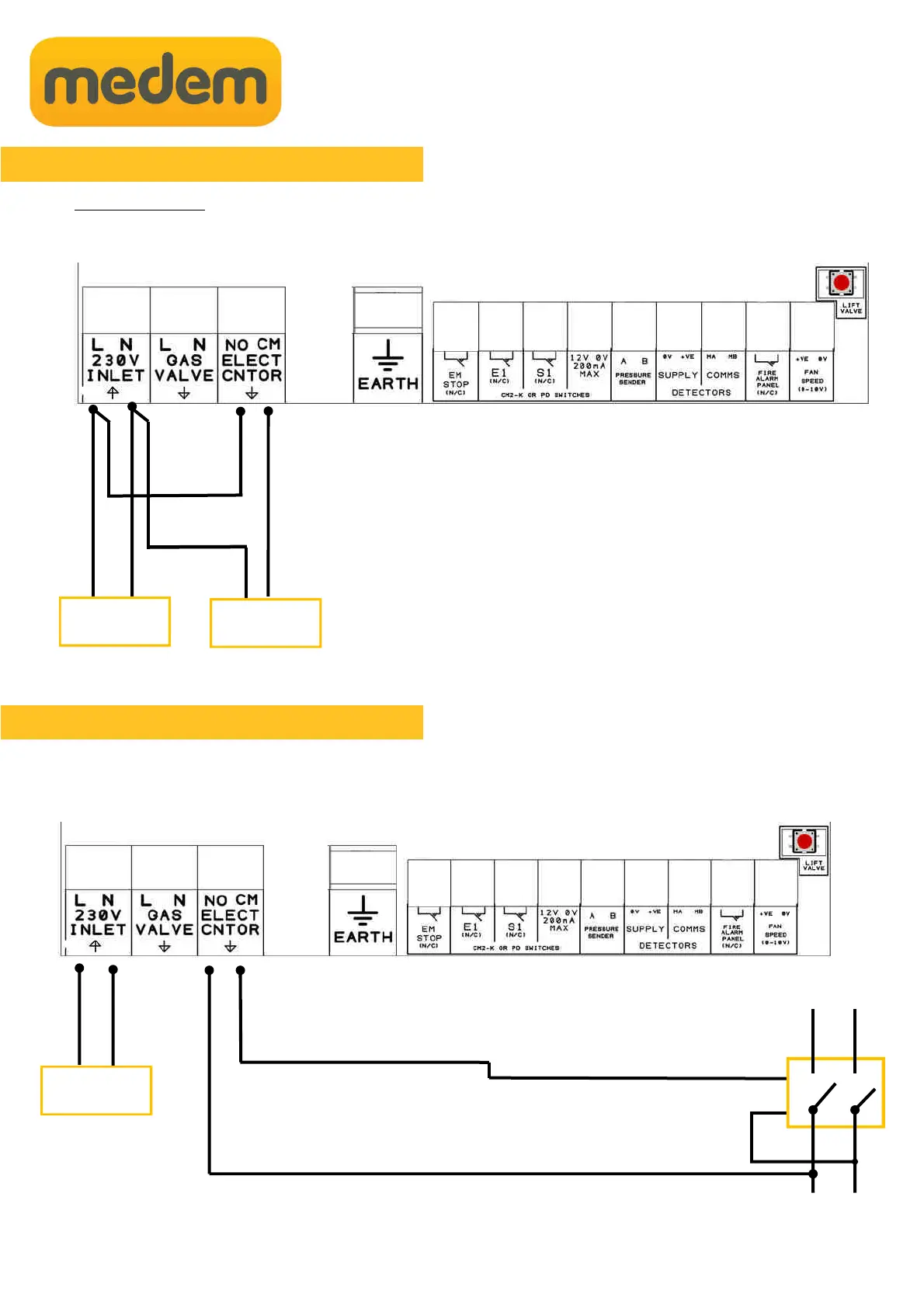

Method 1 ( Preferred )
Using this wiring method, when isolating the supply there are no other voltages present within the panel.
IMPORTANT!
If wired this way, a warning notice must be attached to the panel to indicate that there
are two separate mains feeds.
Contactor coil
Live feed through switched relay
To bench
sockets
L N
Supply in
230v Supply
3Amp Fused Spur
Electrical Contactor
230v Supply
3Amp Fused Spur
Method One (Preferred)
Method Two
