The protective cover (5) must be fitted before the machine is used.
Insert the screw from the inside on the left-hand side, fit the washer and safety ring from the right-
hand side.
The safety ring (A) can possibly be omitted.
Tighten the knurled nut tightly.

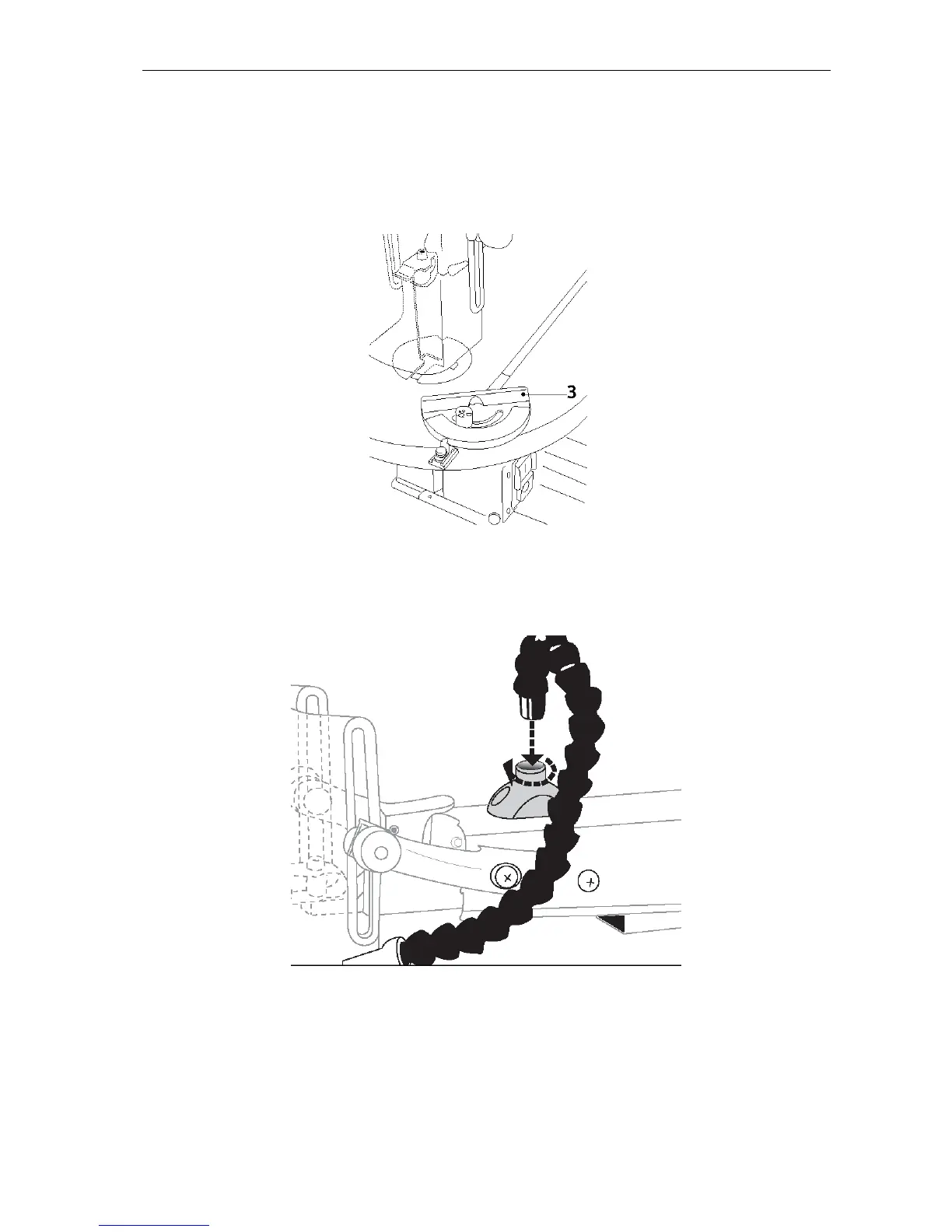

ASSEMBLING THE CROSS GUIDE
The cross guide (3) is used for mitre sawing materials, where the cross guide (3) can be used as material
support if it passes through the saw.
DUST BLOWER
The dust blower keeps the workpiece clear of sawdust for precise figure sawing. Always direct the air jet
from the dust blower towards the saw blade and workpiece for best results. You only need to bend the
pipe to adjust to the required position.
Installation
Fit the dust blower in the hole on the top of the saw.
Turn the hose clockwise into the hole.
