VI. COMFORT ADJUSTMENTS
5. While holding the upper seat post at that height, align the
adjustment holes of the upper and lower seat posts.
6. Fully insert the detent pin.
7. Replace the battery pack and connect the battery harness.
8. Reinstall the seat.
POSITIONING BELT (OPTIONAL)
Your scooter seat may be equipped with an auto-type
positioning belt that can be adjusted for operator comfort. See
figure 16. The positioning belt is designed to help support the
operator so that he or she does not slide down or forward in the
seat. The positioning belt is not designed for use as a restraining
device.
WARNING! The positioning belt should be
secured at all times. Never allow the positioning
belt to hang or drag on the floor as it may
become entangled.
To install the positioning belt (if required):
1. Remove the seat from your scooter.
2. Place the seat upside down so that you can see the bottom of
the seat base. See figure 16.
3. Use a wrench to remove the two rear bolts on the outermost
part of the seat frame.
4. Insert the bolt through the appropriate ends of the position-
ing belt and then reinstall the bolts back into the seat frame.
5. Tighten the bolts.
Metal tab style positioning belt
To adjust the positioning belt for operator comfort:
1. Insert the metal tab on the right side of the belt into the plastic housing on the opposite strap until you
hear a “click.” See figure 17.
2. Pull the strap on the right side of the belt until it is secure, but not so tight as to cause discomfort.
To release the positioning belt:
1.
Press the push button mechanism on the plastic housing.
Reusable hook and loop fastener style positioning belt
To adjust the positioning belt for operator comfort:
1.
Align the two sides of the belt placing the looped-end side directly above the coarser side (“hook”) of
the opposite belt. Press firmly together to fasten. See figure 17.
To release the positioning belt:
1.
Grasp the looped-end side of the belt and pull up to detach from the other side of the belt.
MANDATORY! Make sure the positioning belt is properly secured to the scooter and is
adjusted for operator comfort before each use.
MANDATORY! Inspect the positioning belt for loose parts or damage, including tears,
worn spots, bent hardware, or damaged latch mechanisms, dirt or debris, before each use
of the scooter. If you discover a problem, contact your authorized Provider for
maintenance and repair.

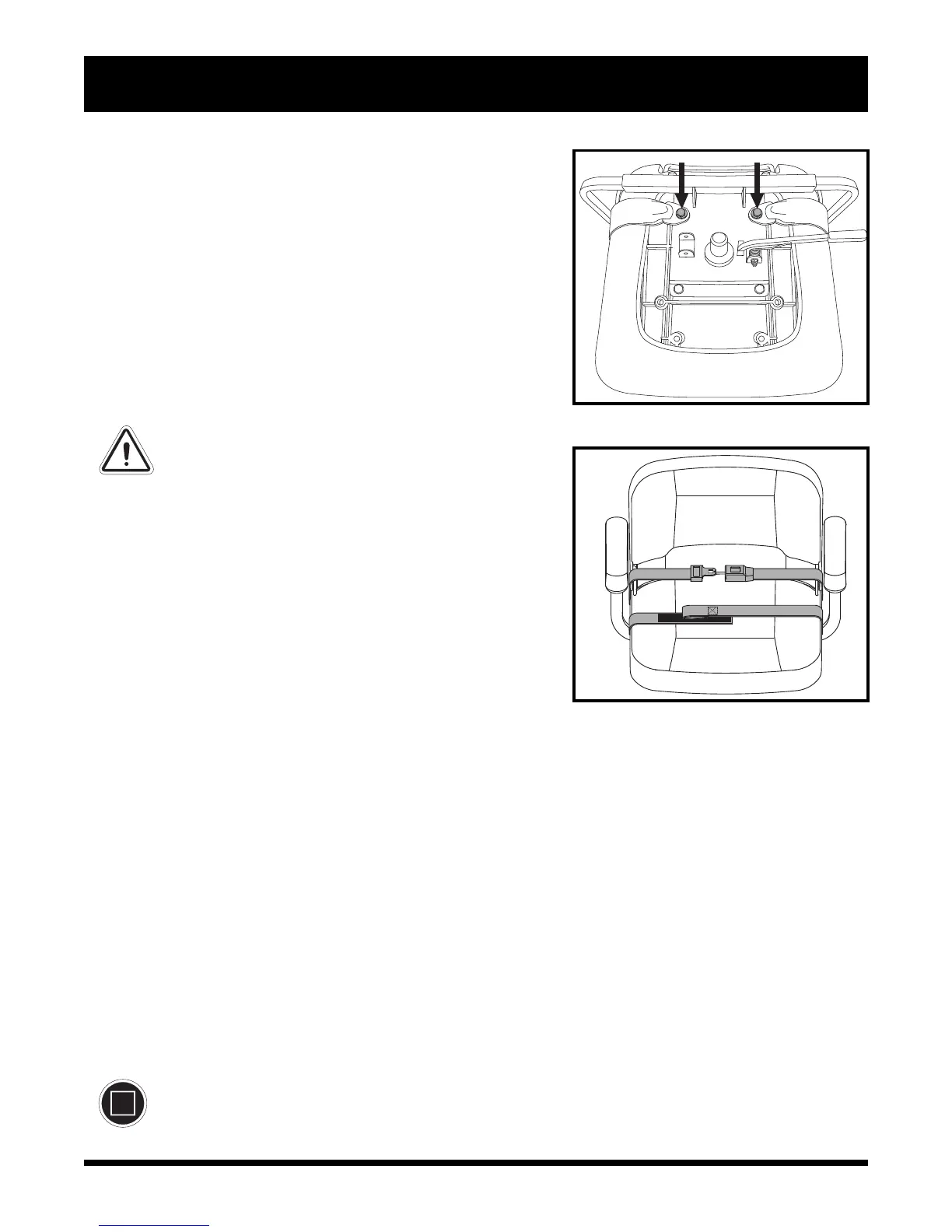

Figure 16. Positioning Belt Bolts
Figure 17. Positioning Belt - Metal Tab Style
or Reusable Hook and Loop Fastener Style
