15

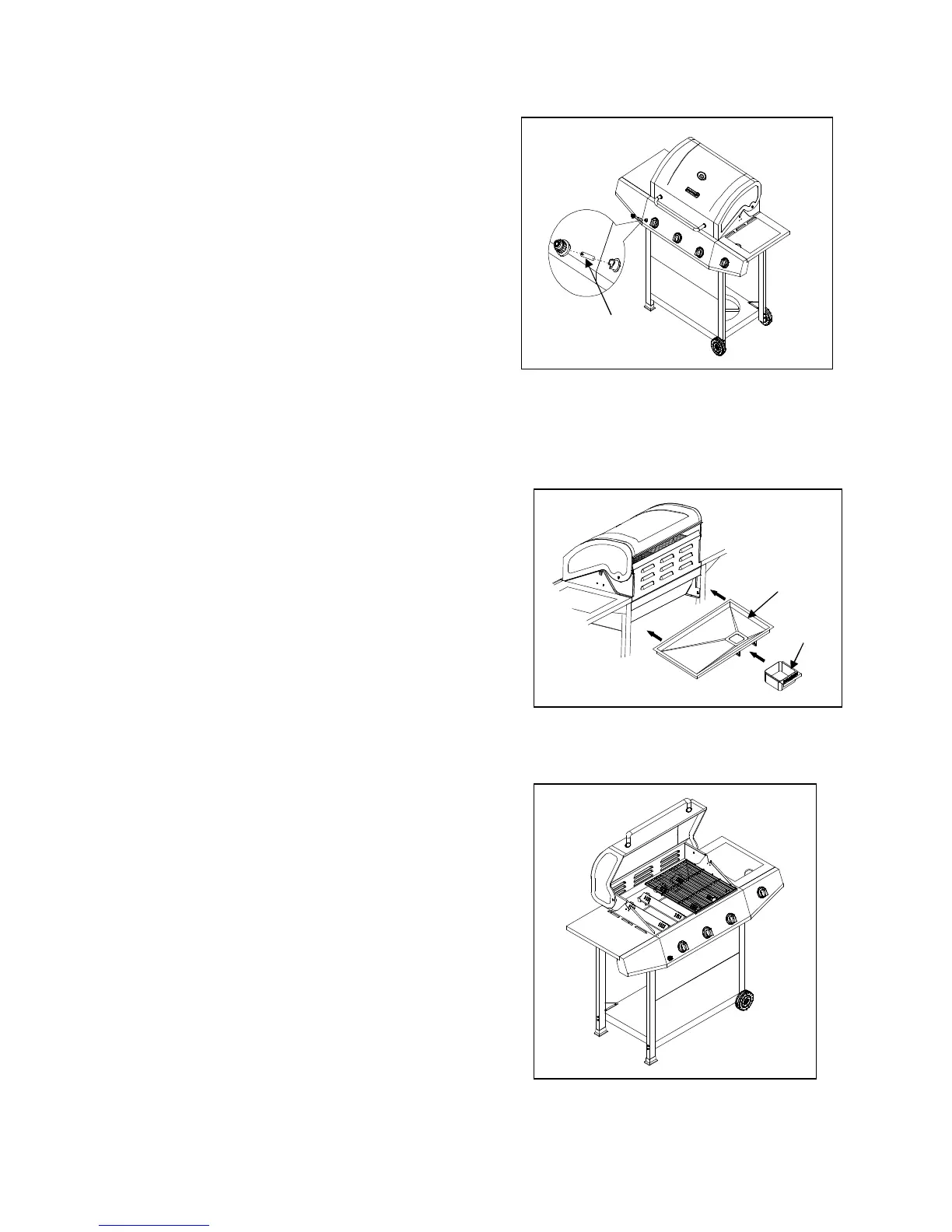

12. Electronic Igniter Battery Installation
Unscrew the electronic igniter button
and place the battery (V) into the housing
with the positive terminal (+) facing
outward. Replace the ignition button
after the battery has been installed
as shown in Fig. 17.
13. Install the Grease Tray
Install the Grease Tray (L) from the rear
of the grill by sliding the tray on the glides
at the rear of the grill until centered under
the cooking area. As shown in Figure .18.
14. Position Flame Tamers and Cooking Grids
a) The Flame Tamers (Z) are shipped in the
main firebox assembly. Please check the
placement of and make sure the Flame
Tamers (Z) in the channels to ensure the Flame
Tamers are centered over the burners. As shown
in Fig.19.
b) The Cooking Grids (N) are also shipped in the
Firebox Assembly (A). Place the Cooking Grids (N)
in the main firebox assembly before using your grill.
The Cooking Grids (N) should be positioned from the
front of the firebox to the rear for a proper fit. As
shown in Fig.19.
Fig. 17
Fig. 18
V
Fig. 19
800
700
600
500
400300
200
100
L
W
