Megger DET4 Series User Manual

11
>100V
Indicates that the ground noise voltage exceeds the instrument
measurement capability (test is inhibited).
Rp

Potential stake (P stake) is within range for accurate measurement.
Rp

Potential stake (P stake) resistance exceeds range for accurate
measurement.
Rc

Current stake (C stake) is within range for accurate
Measurement.
Rc

Current stake (C Stake) resistance exceeds range for accurate
measurement.
V

Ground noise voltage is within range for accurate measurement of
resistance.
V 
Ground noise voltage exceeds range for accurate measurement of
resistance.
I

ICLAMP is connected; VCLAMP is connected [DET3TC, DET4TC2 and
DET4TCR2 only].

ICLAMP is not connected; VCLAMP is not connected [DET3TC, DET4TC2
and DET4TCR2 only].
I

Sufficient ICLAMP current [DET3TC, DET4TC and DET4TCR only].
I 
Insufficient ICLAMP current [DET3TC, DET4TC2 and DET4TCR2 only].

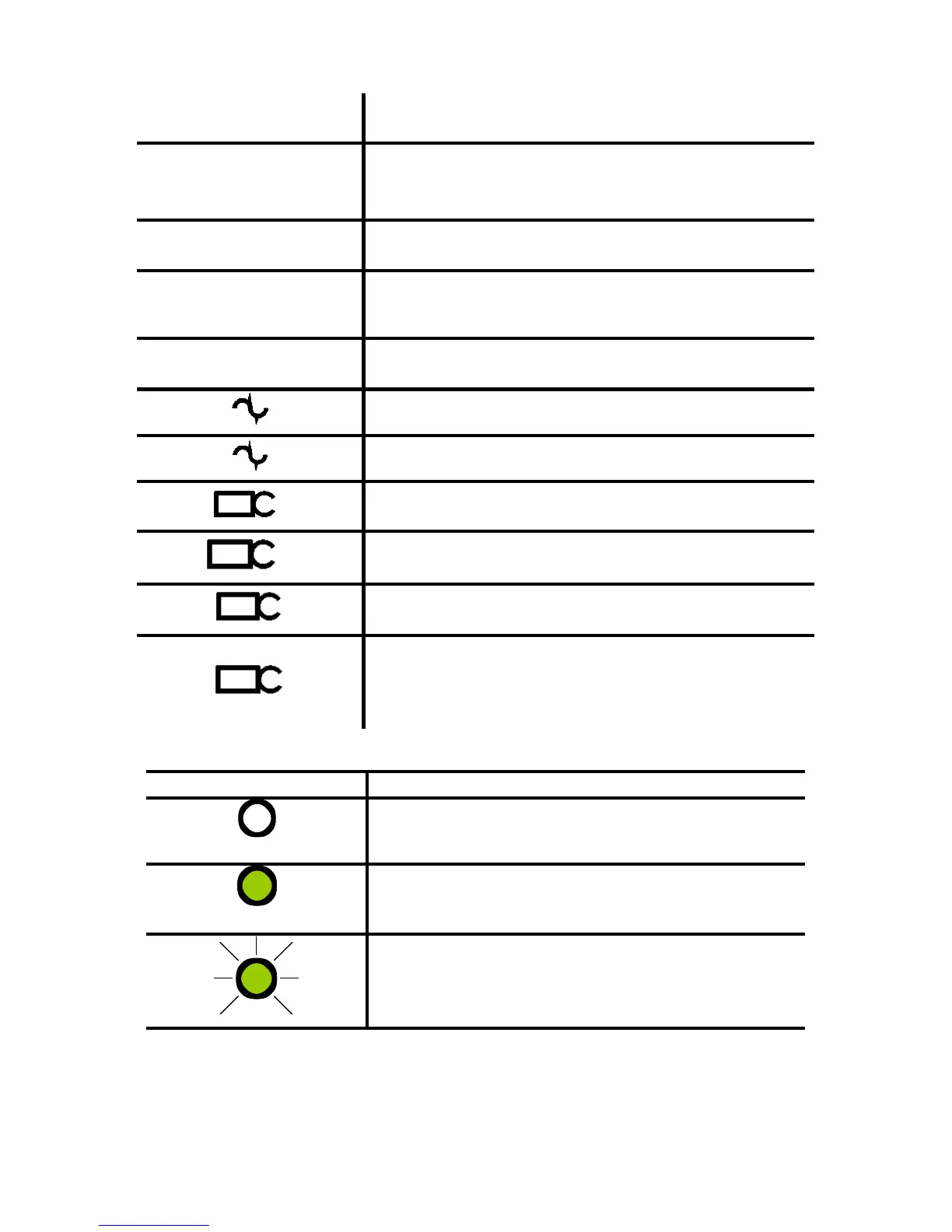

Display symbols (DET3TA)
Symbol
Meaning
Rc
Current stake (C Stake) resistance exceeds range for accurate
measurement.
OR Fuse blown.
Rc
Current stake (C stake) is within range for accurate measurement.
Rc
Instrument is performing pre-measurement checks.
