30

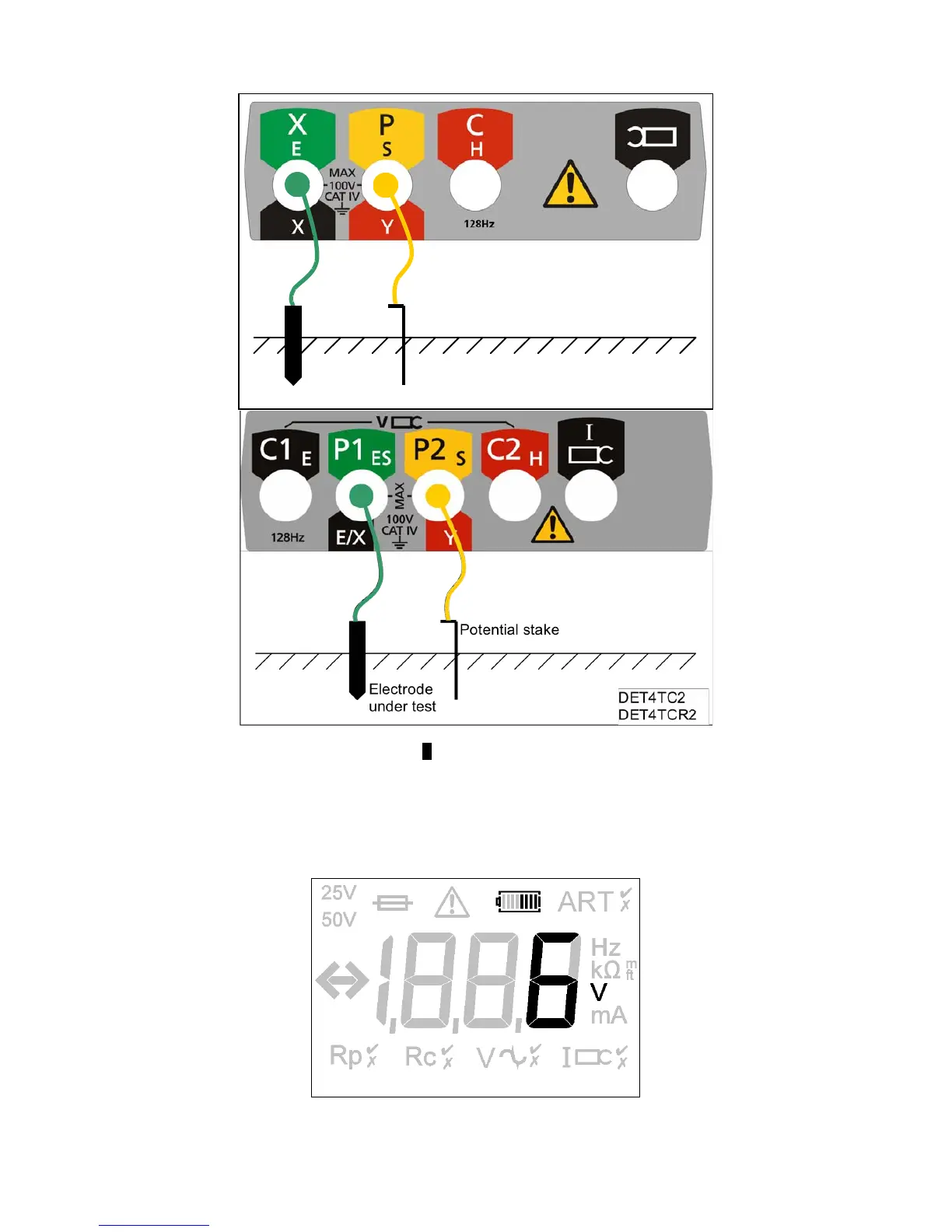

Potential stake
Electrode
under test
DET3TC
3. Set the rotary selector switch to the V position.
4. The ground noise voltage reading will be displayed as shown in Figure 10.
Figure 10: example ground noise voltage reading (DET4 display shown)
