Megger DET4TD2 Quick Start Guide

DET4 Series
Earth/Ground Resistance & Soil Resistivity Testers

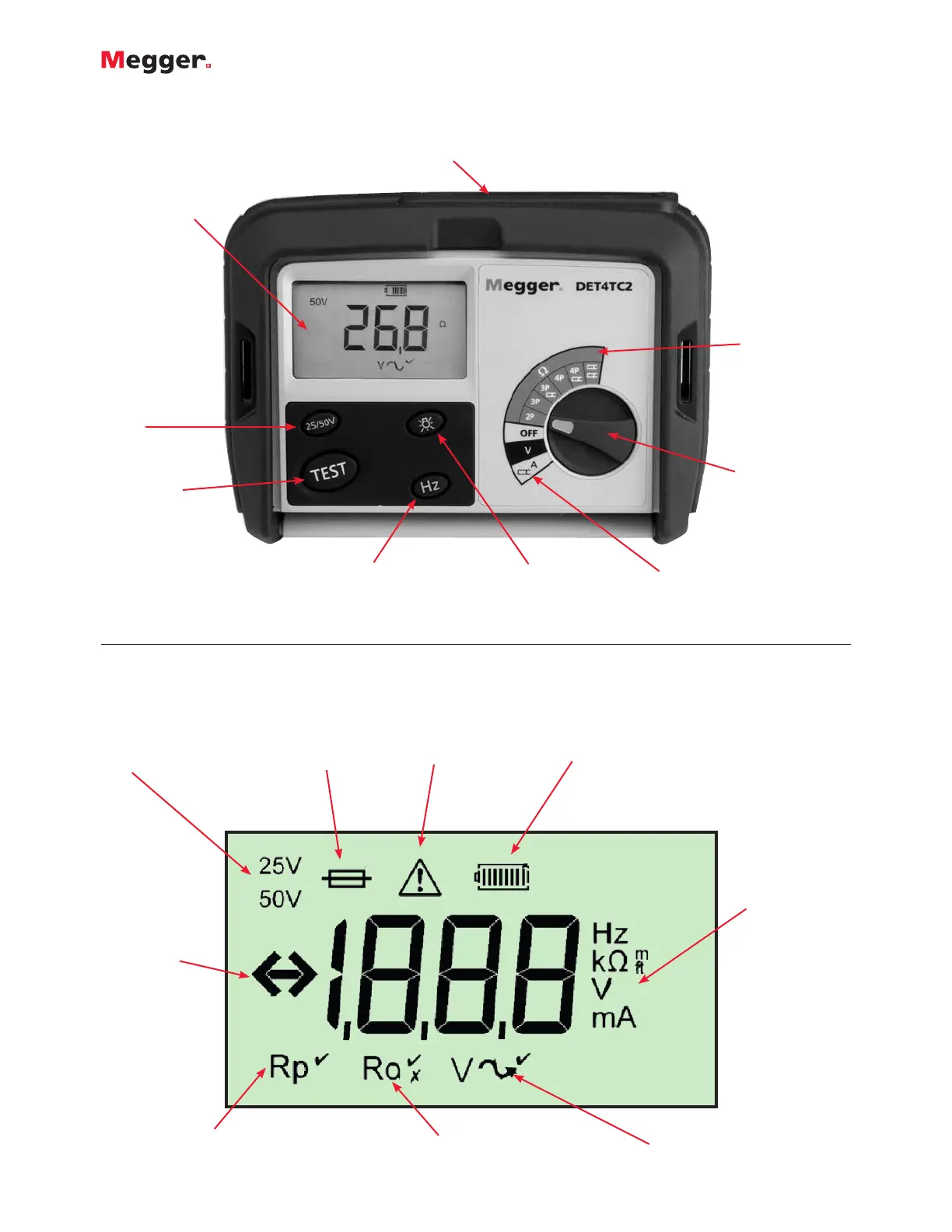

DET4TC2 DISPLAY EXAMPLE
DET4TC2 OPERATION
LCD Display
Frequency
select button
25V / 50V output
voltage select
button
Backlight
control button
Voltage and current
measurement settings
Selector switch
Test button
Resistance
measurement
settings
Test lead connections
(at rear)
Current probe resistance
(OK or high)
Warning - refer
to user manual
Potential probe resistance
indicator (OK or high)
Ruptured
fuse
indicator
Ground noise voltage
indicator (OK or high)
Battery charge
indicator
Over/under
range indicator
Output
voltage
indicator
Measuring
range
