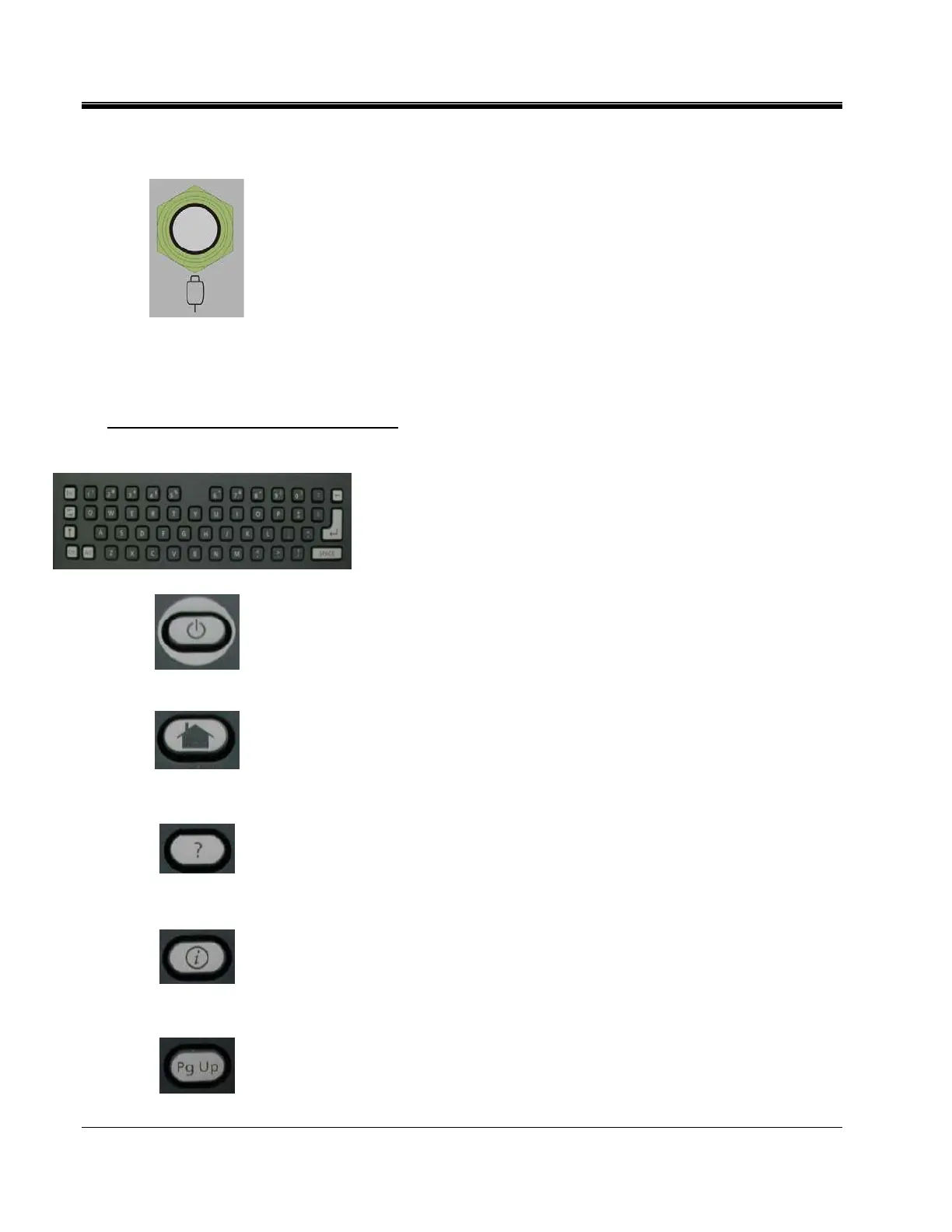

Remote Control Switch
This connector is used to interface with a remote switch. This
switch is primarily used when testing On-Load Taps of a
transformer
The Remote Control Switch can remotely start the MTO test and
store multiple resistances reading for tap changes. The storage
function in remote mode is sequential and occurs during a
continuous resistance test.
MTO330 TOP PANEL FACILITIES
Qwerty Keyboard
Interface is used to enter field data and control instrument.
Power Button
This button must be used to close down the software before the
main power switch is turned off.
Home Button
Toggles Home Action icons.
Help Button
Provides on screen help to assist operator.
Information Button
Provides on screen information to assist operator.
Page Up Button
Large forms may have multiple pages of results. This button is
used to toggle up the page sequence.
To Next Page
