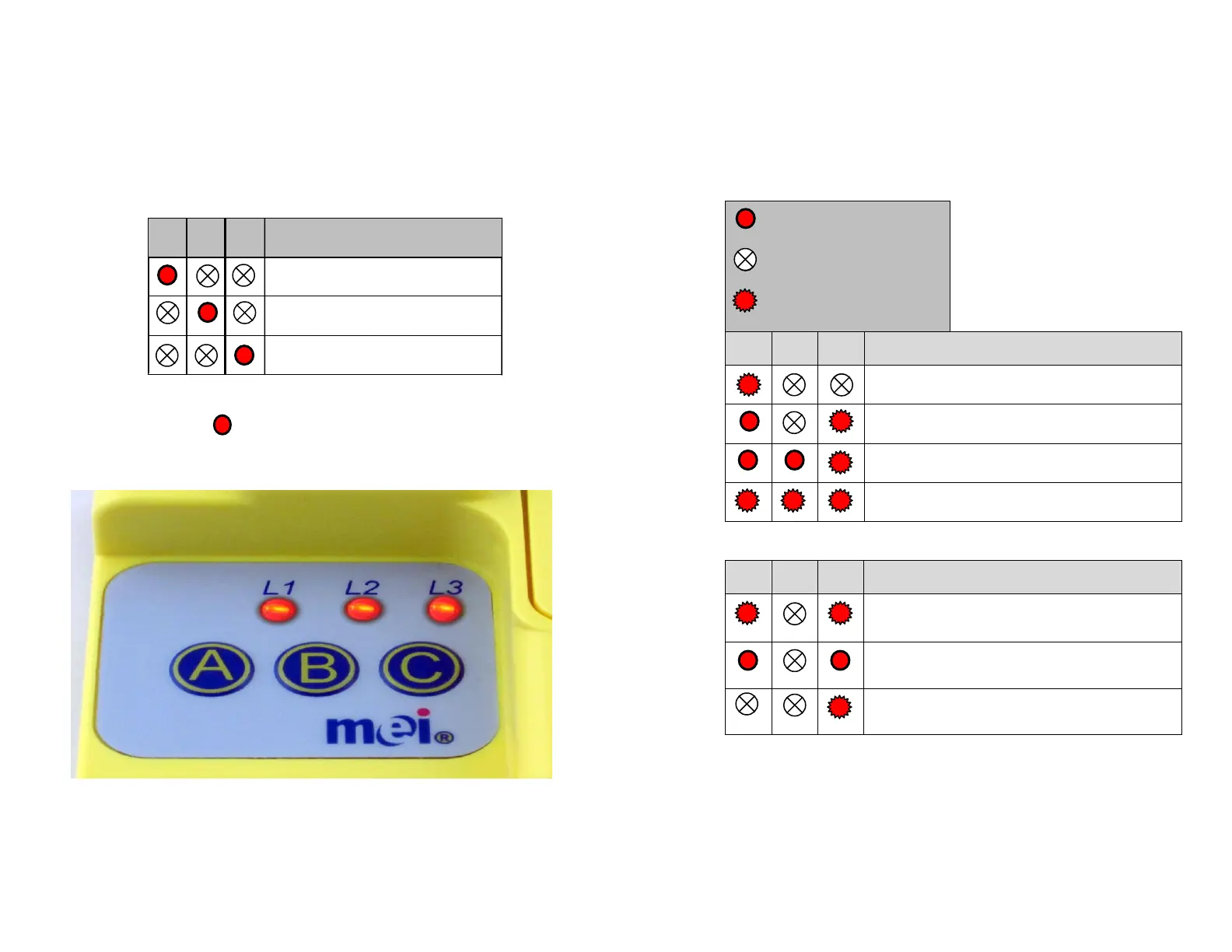

Operation:
Pushbutton Switches:
Three push button switches allow user input. The buttons are
labeled A, B, and C. The following functions can be performed:
A
B
C
Function
Force DEX
Force Audit Call
Force Fill Key
= Push this button(s)
LED Indicators
Three red LEDs provide user indications. Each LED can be OFF, ON or
FLASHING.
The LEDs are marked L1, L2, and L3.
LED ON
LED OFF
LED FLASHING
L1
L2
L3
Power Up Sequence
Unit is booting up
Unit is ready and off line
Unit is ready and online
Unit failed to boot up
L1
L2
L3
DEX Sequence
DEX audit in progress
DEX completed successfully
(15 sec)
DEX failed
(15 sec)
