5. Connecting ADL-SR®
Connector for power supply and RS485-Bus (Cable with Socket M8, A-coded)
Pin
Wire color
Usage
1
brown
Supply Ground (GND, --)
2
white
Supply voltage (VCC, +)
3
blue
RS485-A (+)
4
black
RS485-B (--)
Connector for external temperature and wind speed sensor: (Cable with Plug M8, A-coded)
Pin
Wire color
Usage
1
brown
PT1000
2
white
PT1000
3
blue
Wind speed sensor
4
black
Wind speed sensor
Should an external temperature sensor and a wind speed sensor connected simultaneously,
an additional adapter is required (Y-splitter or tee will be supplied when both sensors are
ordered together).

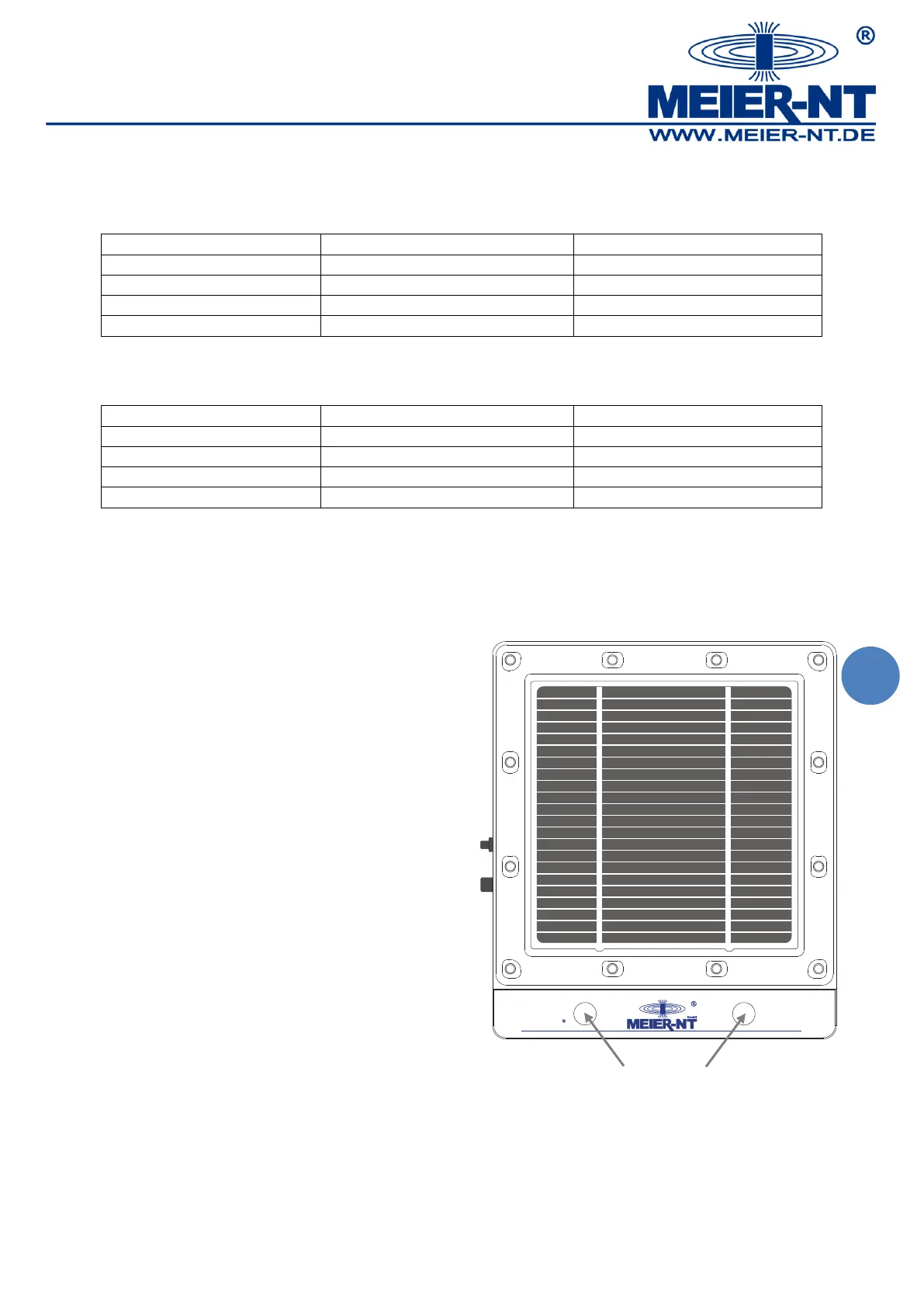

ADL-SR
Connector for power supply and RS485-Bus
Connector for external
temperature and wind speed sensor
Mounting holes (distance 60 mm, ø 8,5mm)
