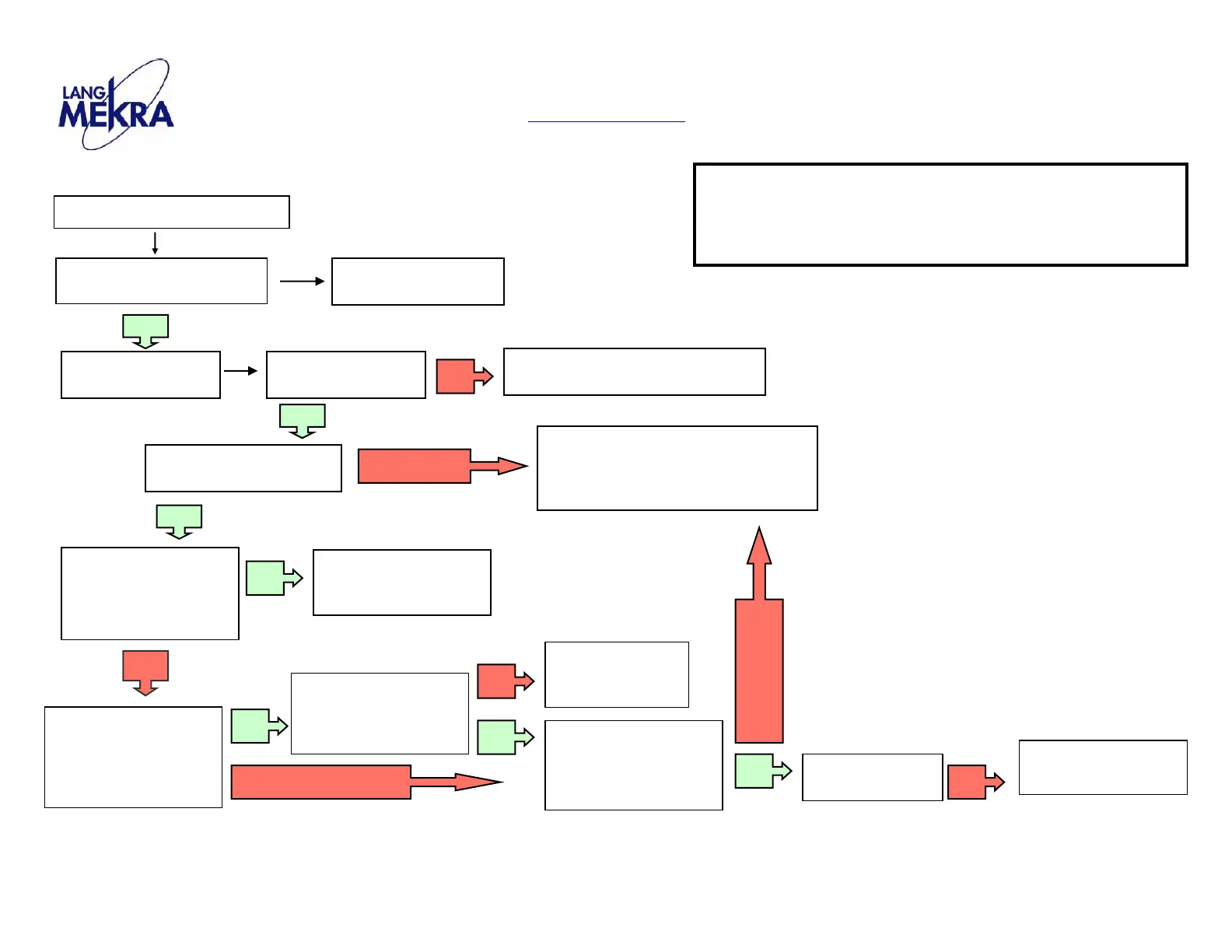

T.2.1 Mirror Movement Analysis Flowchart
T.2.2 Mirror Movement Analysis
Lang-Mekra strongly suggests the use of a test unit to
simplify troubleshooting, available through the
Freightliner Alliance group. See section W.2 for details.
Remote Mirror Will Not Move
Are All Cables Connected
Securely and Routed Properly?
Remove Mirror Plate
See Manual (G.5.1)
Connect Cables
and Rout Properly
Mirror is Manual
(Replace Entire Mirror Assembly)
Are Motors and Linking
Components OK?
Is Function Through the
Control Cable OK?
See Manual (T.2.2)
Cab-Internal Problem
See Manual (T.3.1)
Is Function from the
Mirror Head OK?
See Manual (T.2.2)
Is Continuity of Bracket
Control Cable OK?
See Manual (T.3.1)
Replace Control
Cable
See Manual (T.3.2)
Is Continuity Through
Motor Connectors OK?
See Manual (T.3.1)
Are Motors OK?
See Manual (T.2.2)
Replace Failed Motor
See Manual (T.2.3)
Replace Mirror Head Assembly
(Without Glass)
See Manual (T.3.1)
To Next Page
