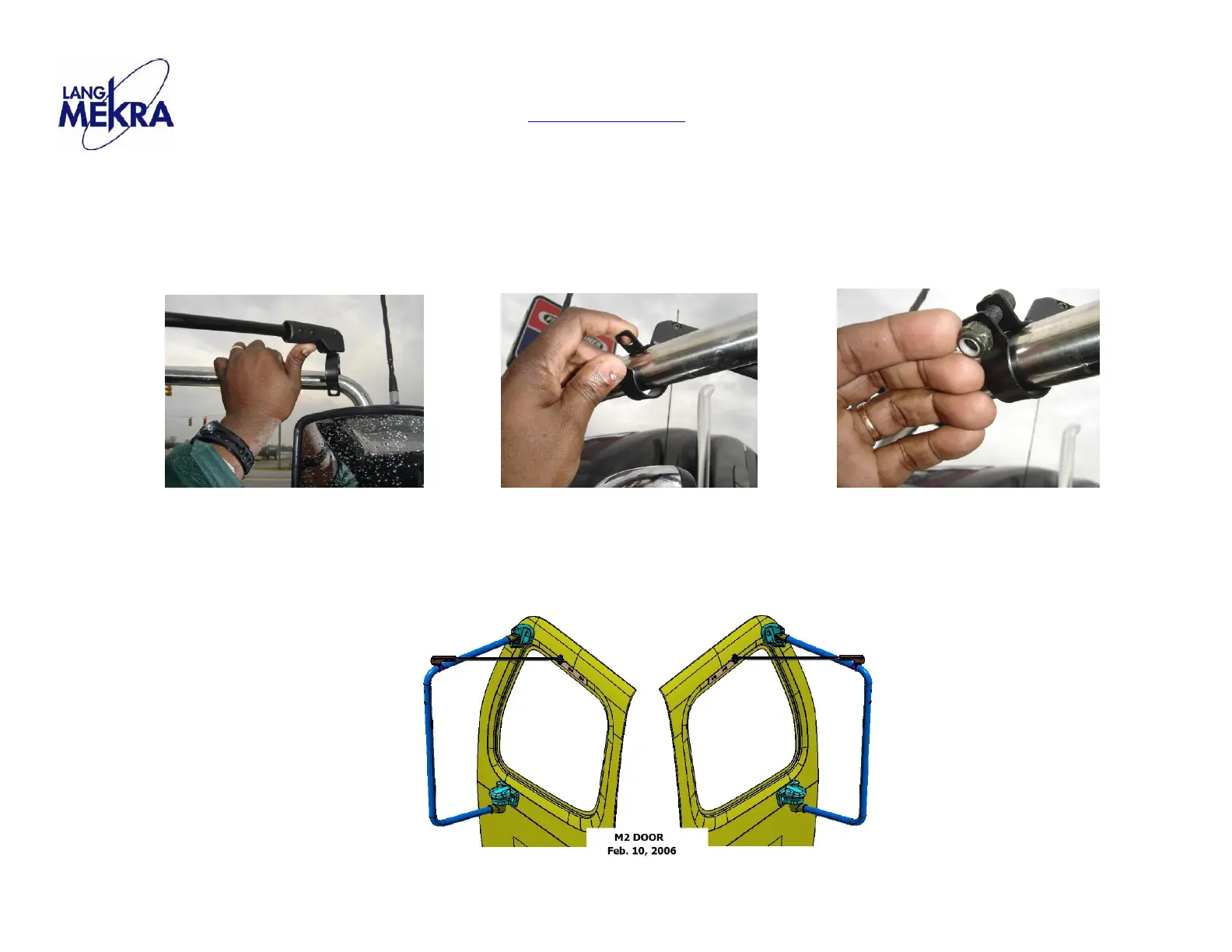

T.1.3 Installing a Flip-out Arm
If the mirror system continues to vibrate, consider installing a third arm. (part number 614100006)
Please note that the pivot point at the holder and the arm is at the top of the holder.
1. First, attach the third arm to the top of the bracket as shown in the picture. Secure it in place using the M8 socket Head Bolt and M8 Nyloc nut
provided with the kit.
2. Put the other end of the arm against the door and locate the spots where you will need to drill holes (NOTE: For a look-down mirror on the passenger
side, remove it and use those holes). Drill two 17/32” holes where needed and insert two 5/16 – 18 Rivnuts.
3. Secure the flat end of the arm to the door using the screws provided.
