The buckets on your machine comes with 2 lids with 3 nozzles (entrances) on each of them. When you are milking your cow,
this is how your hoses will connect to the nozzles (entrances) on the milking lids.
1. Connect the cow pulsator to
the small nozzle and then
connect the pulsator hoses
from the cluster to the pulsator.
2. Connect the milk hose
from the cow cluster one of
the big nozzles.
3. Connect one end of the short milk hose that transfers the milk
to next bucket to the last big nozzle on the rst lid and connect
the other end to one of the big nozzles on the second lid.
*There is a small piece of tubbing about 3-4 inches in length
that comes with this milker. It should be aached underneath
the same nozzle that the hose connecng the 2 buckets is
aached to. Refer to Illustraon 2 for reference.
4. Insert the black plug into the
big nozzle towards the front of the
machine.
5. Aach the air hose that
is connected to the frame
of the machine to the last
big nozzle on the lid.
*The milk stopper will
aach underneath this
same nozzle that the air
hose from the frame of
the machine is on. Refer
to Illustraon 2 for
reference.

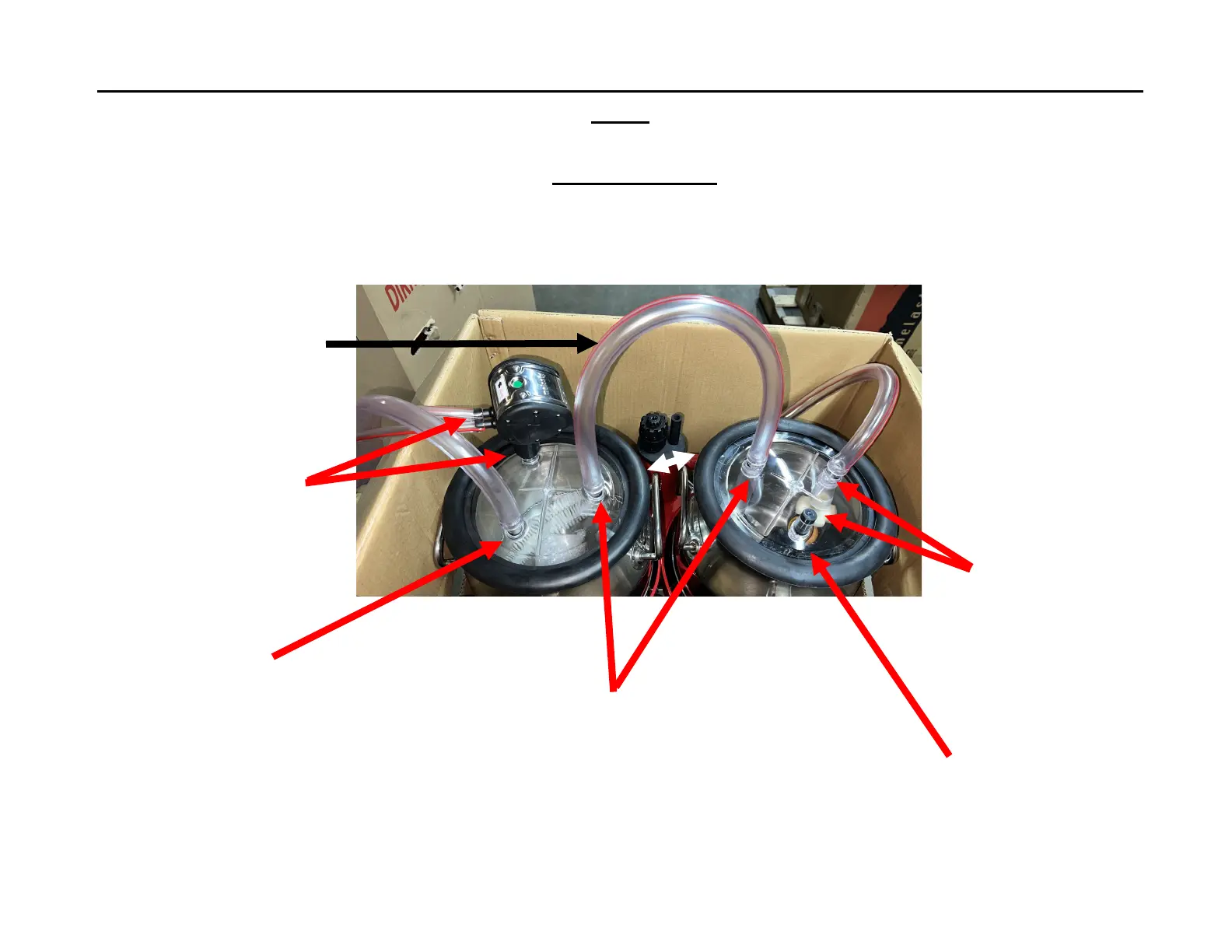

HOW TO CONNECT THE HOSES, BLACK PLUG AND COW PULSATOR TO THE MILKING
LIDS
(1)
(2)
(3)
(3)
(4)
(5)
Short Milk Hose
ILLUSTRATION 1
