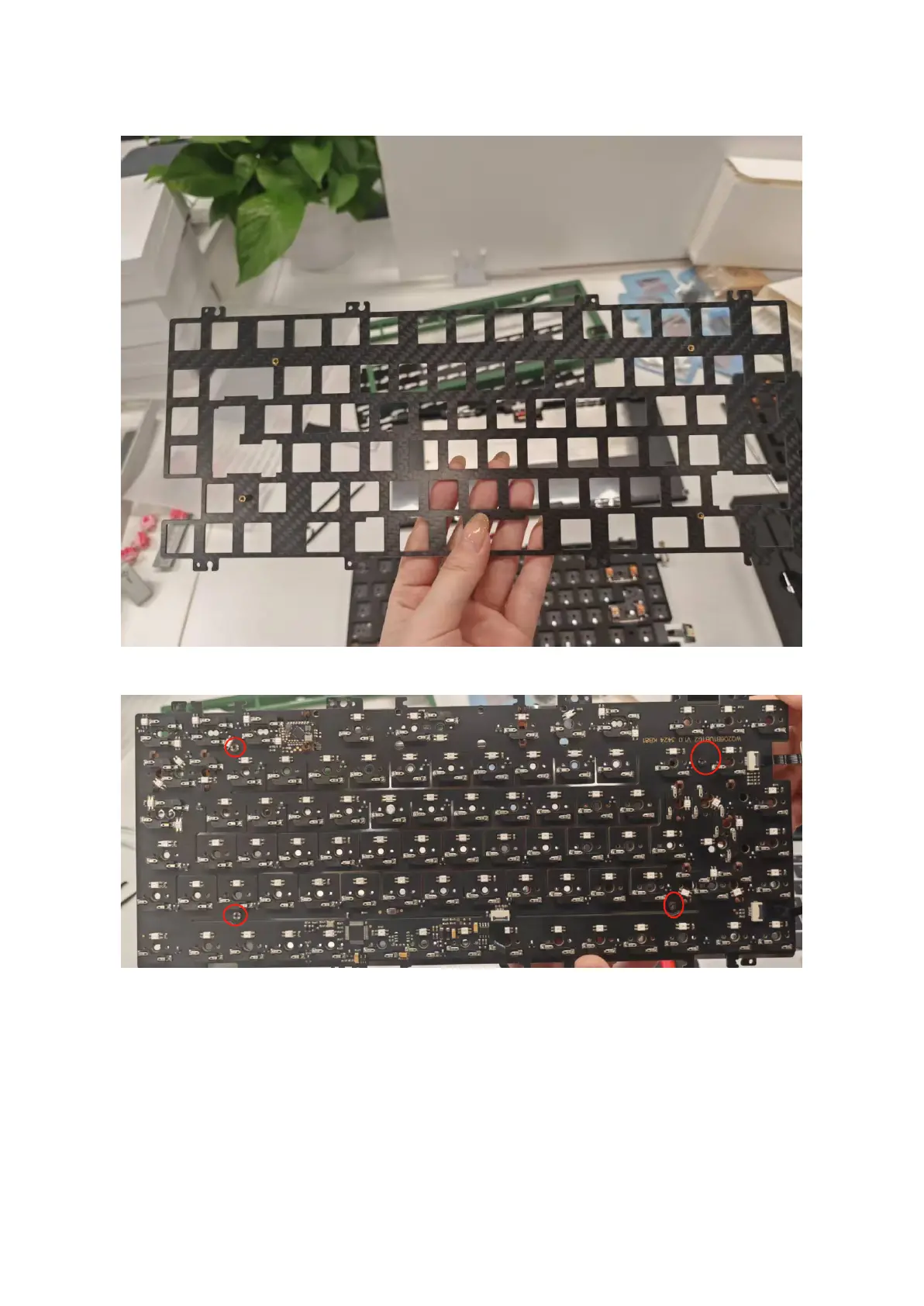

7. Attach standoffs to the plate (optional but recommended for PC and POM plates). PC, POM,
brass and aluminium plates use single headed screws, FR4 and carbon fibre use double
headed screws.
8. Secure the plate to the PCB with screws
9. For Poron foam kit, remove the transparent backing and place the case foam on the back of
the PCB ensuring that it’s correctly aligned with the PCB hot swap sockets. For other kits, do not
remove the transparent backing, leave it in place.
