– 6 –

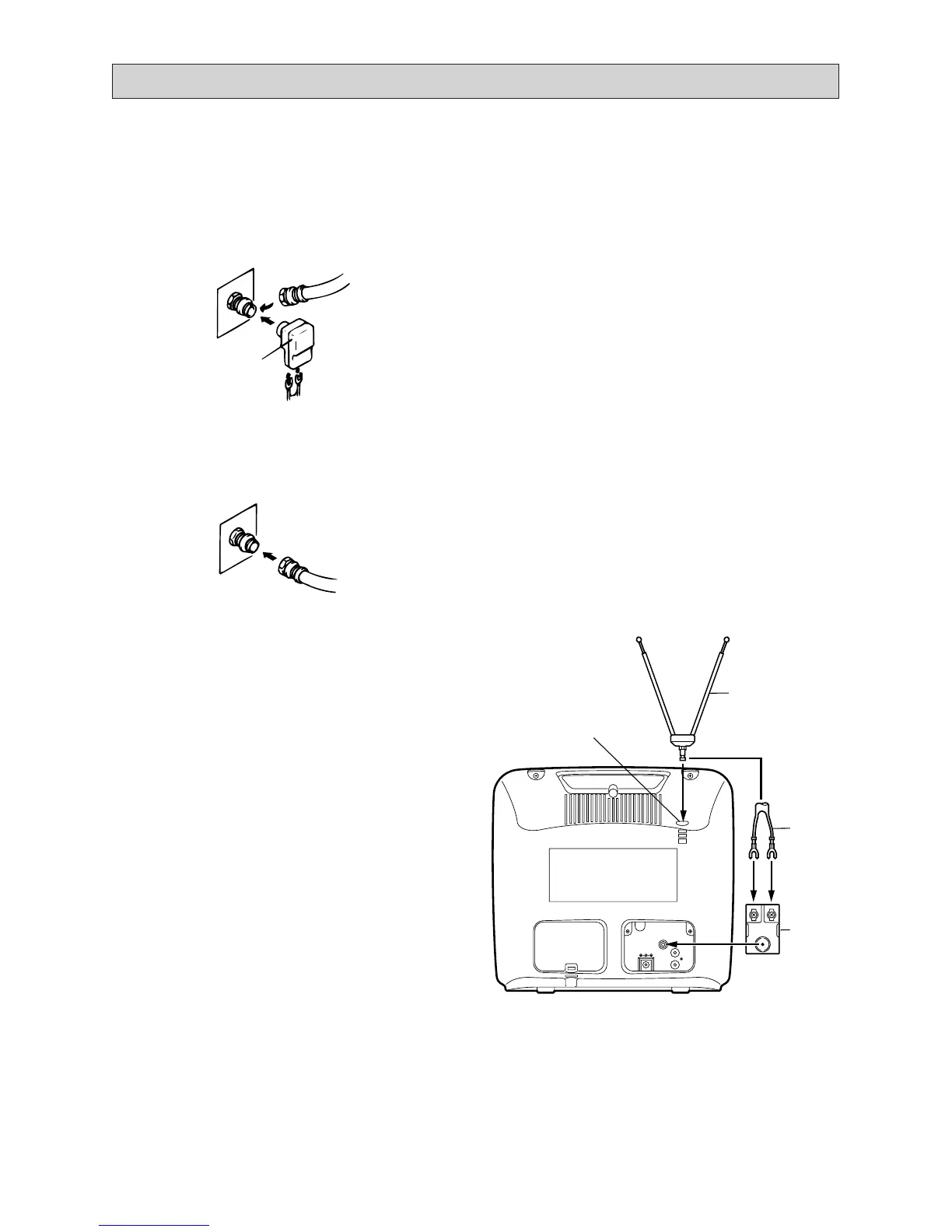

ANTENNA CONNECTIONS
If you are using an indoor antenna (included) or an outdoor antenna (not included) follow
the instructions below that correspond to your antenna system. If you are using a cable
television service (CATV), refer to CATV connections.
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead
wire)
Connect the 75 ohm cable from combina-
tion VHF/UHF antenna to the antenna jack.
OR
If your combination antenna has a 300 ohm
twin-lead wire, use the 300-75 ohm match-
ing transformer (included)
Transformer
(included)
300 ohm
OR
75 ohm
ANT
CATV CONNECTIONS
For subscribers to basic cable service.
For basic cable service without a converter/
descrambler box, connect the CATV 75
ohm coaxial cable directly to the antenna
jack on back of the unit.
ANT
Connecting an Internal Antenna
Your TV comes with an internal antenna.
Use it if you want to place the TV where
there is no outdoor connection.
1 Place the rod antenna (included) into the
antenna holder on the back of the TV
cabinet. Push it down until it locks in
place.
2 Connect the antenna leads (flat prongs)
to the two screws on the transformer (in-
cluded).
3 Push the round terminal on the back of
the transformer into the EXT. ANT. jack
on the back of the TV.
4 Extend and adjust the antenna.
IN
VIDEO
EXT.ANT.
UHF/VHF
AUDIO
DC−12V
Antenna Holder
Rod Antenna
(included)
Antenna
Leads
Transformer
(included)
To Next Page
