ANTENNA CONNECTIONS
If you are using an indoor or outdoor antenna (antennas no t included) follow the
instructions below that correspond to your antenna system. IIf you are using a cable
television service (CATV), refer to CATV connections.

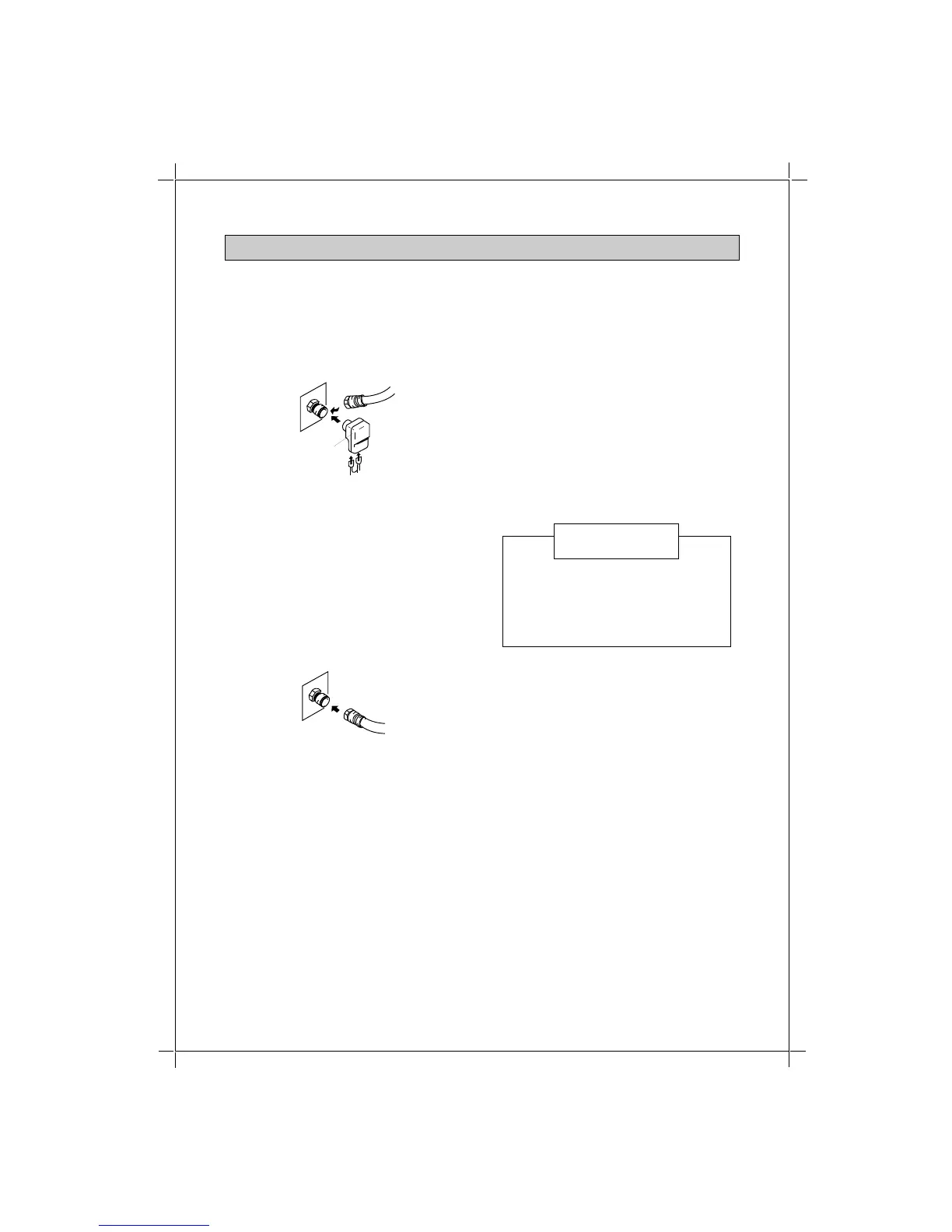

Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead
wire)
Connect the 75 ohm cable from
combination VHF/UHF antenna to the
antenna jack.
OR
If your combination antenna has a 300
ohm twin-lead wire, use the 300-75 ohm
matching transformer (not included)
For subscribers to basic cable service.
For basic cable service without a
converter/descrambler box, connect the
CATV 75 ohm coaxial cable directly to
the antenna jack on back of the unit.
NOTES
To prevent problems it is recommended
that you use only the specified trans-
former. (Transformer Part No.:1398-017)
ANT
Transformer
(not included)
75 ohm
OR
300 Ohm
ANT
CATV CONNECTIONS
To order a transformer, please call
1-800-321-6993.
