8
Phones Power
Volume
Channel
Stop/
Eject
Rew Play F.Fwd Rec/Otr
Power Rec/Otr
Video – In – Audio
T-Rec

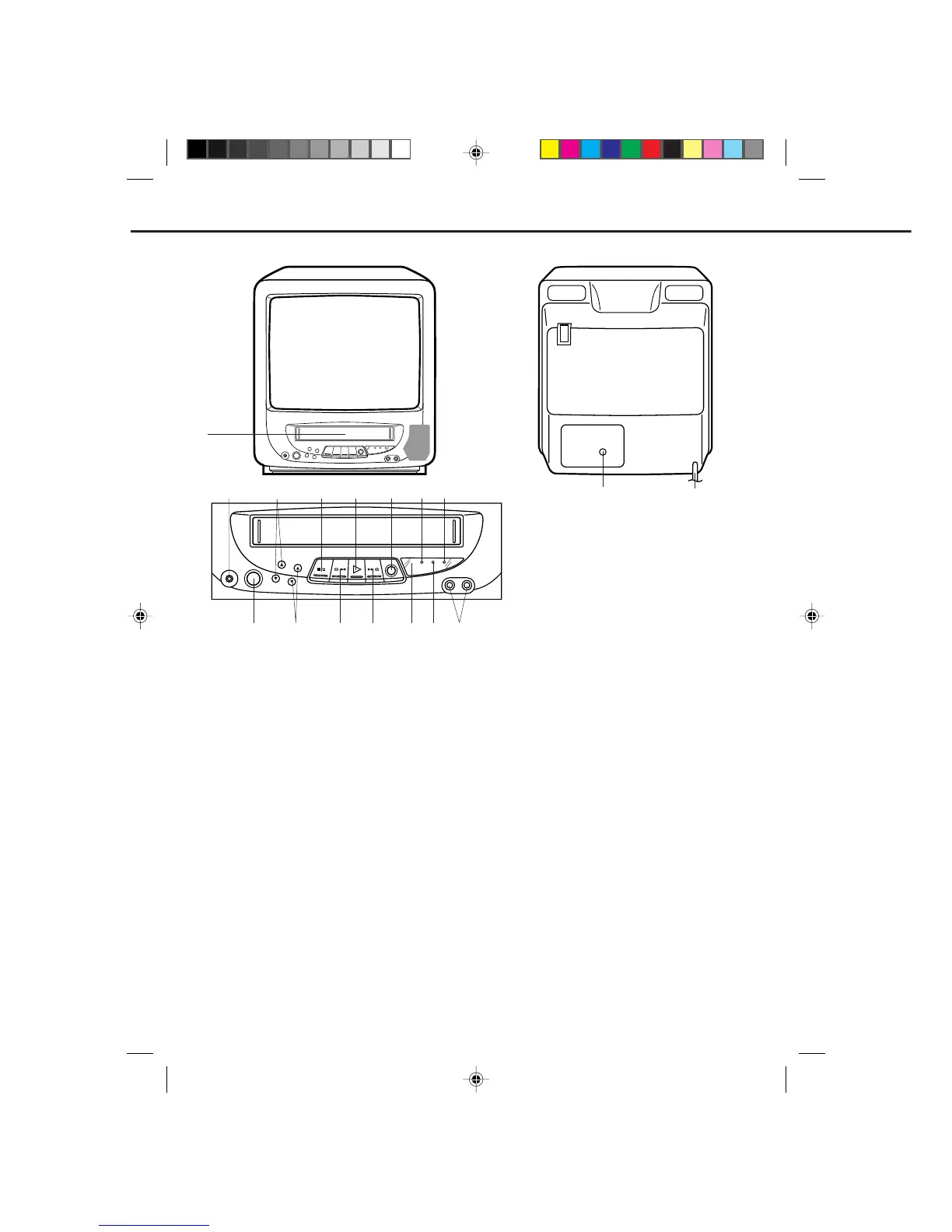

LOCATION OF CONTROLS
REARFRONT
DESCRIPTION OF CONTROLS
1
16
FRONT:
1. Cassette Loading Slot - To insert or remove a
video tape.
2. Phones Jack - Plug monaural headphones or an
earphone with an 1/8" miniplug into this jack for
private listening.
3. Volume ▲ / ▼ Buttons - Press to raise or lower the
volume of the sound.
4. Stop/Eject Button - Press once to stop the tape in
any mode. Press again to eject the tape.
5. Play Button - Press to play a prerecorded tape.
6. Rec/Otr Button - Press once to start normal
recording. Additional presses activate One-touch
Timer Recording.
7. Power Indicator - Lights when the power is turned on.
8. T-Rec Indicator - This lights up when the TIMER
REC button is pressed.
9. Power Button - Press to turn the TV/VCR on or off.
10. Channel ▲ / ▼ Buttons - Press to select a channel
for viewing or recording.
3
10
4 5
11 12
6
13
7
14
8
15
2
9
17
11. Rew (Rewind) Button - In the Stop mode, this
button rapidly winds the tape backwards. In the Play
mode, this button activates reverse search.
12. F.Fwd (Fast Forward) Button - In the Stop mode,
this button rapidly winds the tape forward. In the
Play mode, this button activates forward search.
13. Remote Sensor - Signals from the Remote Control
are received here.
14. Rec/Otr Indicator - Lights when the TV/VCR is
recording.
15. Audio/Video In Jacks - Audio and video signal
cables from an external source can be connected
here.
REAR:
16. VHF/UHF Antenna Jack - Connect the 75 ohm
coaxial cable from the antenna or Cable TV service
to this jack.
17. AC Power Cord - Connect to a 120V, 60Hz outlet.
545A201A-E/P01-09 19*04*0, 17*198
