Men'sHealth Active+ 455 / 2248 - Step 2: Base Frame Attachment

:
Two person assembly recommended
Assembly Instructions

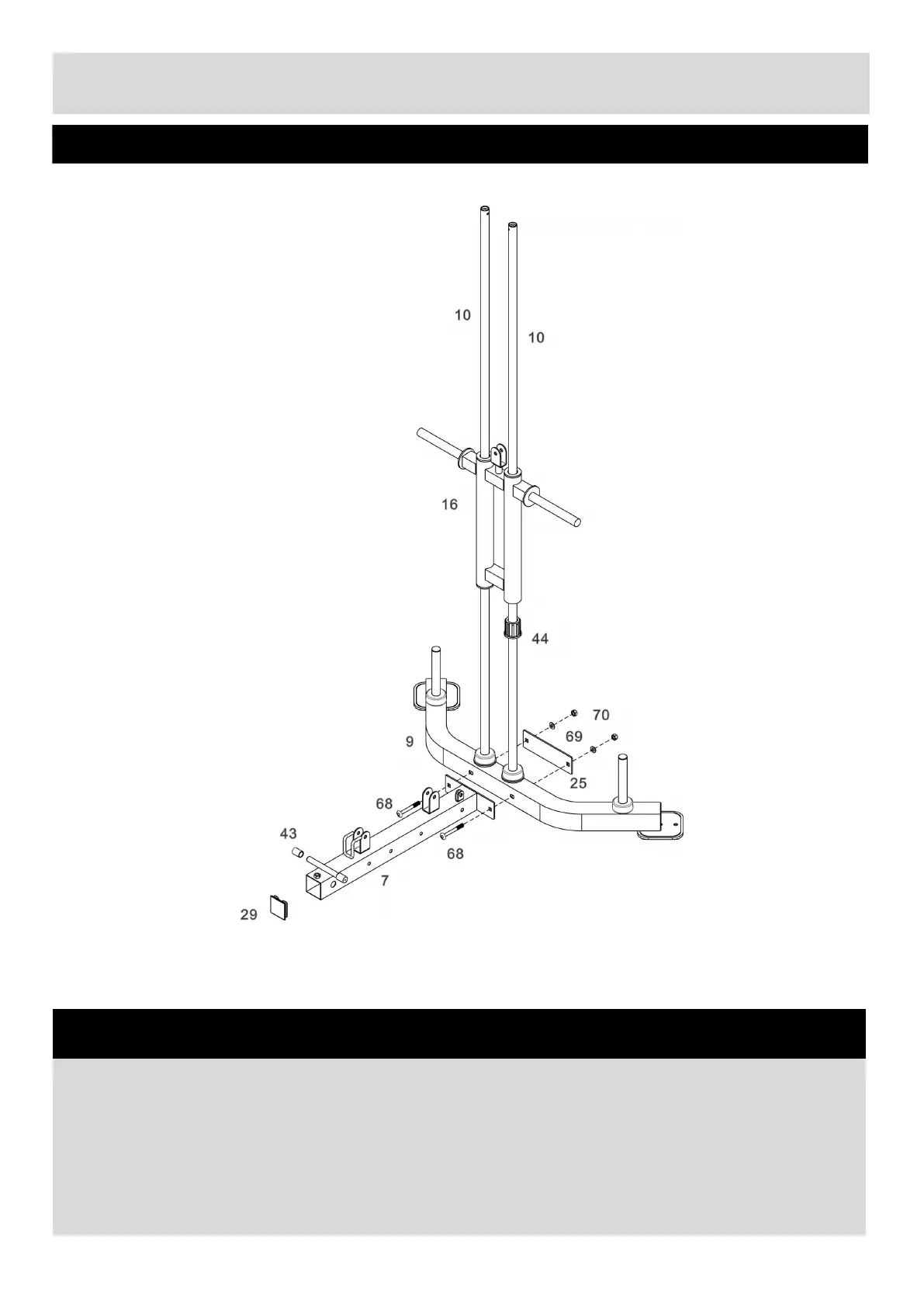

a. Attach the Main Base Frame (7) and 200×55mm Bracket (25) to the Rear Stabilizer (9) using 2 × M10
× 80mm Carriage Bolts (68), 2 × Ø10mm Washers (69) and 2 × M10 Aircraft Nuts (70).
b. Insert the Load Support (16) into the Guide Rods (10).
Notes: parts (29), (43), (44) are pre-assembled.
Step 2
10
