Page 7

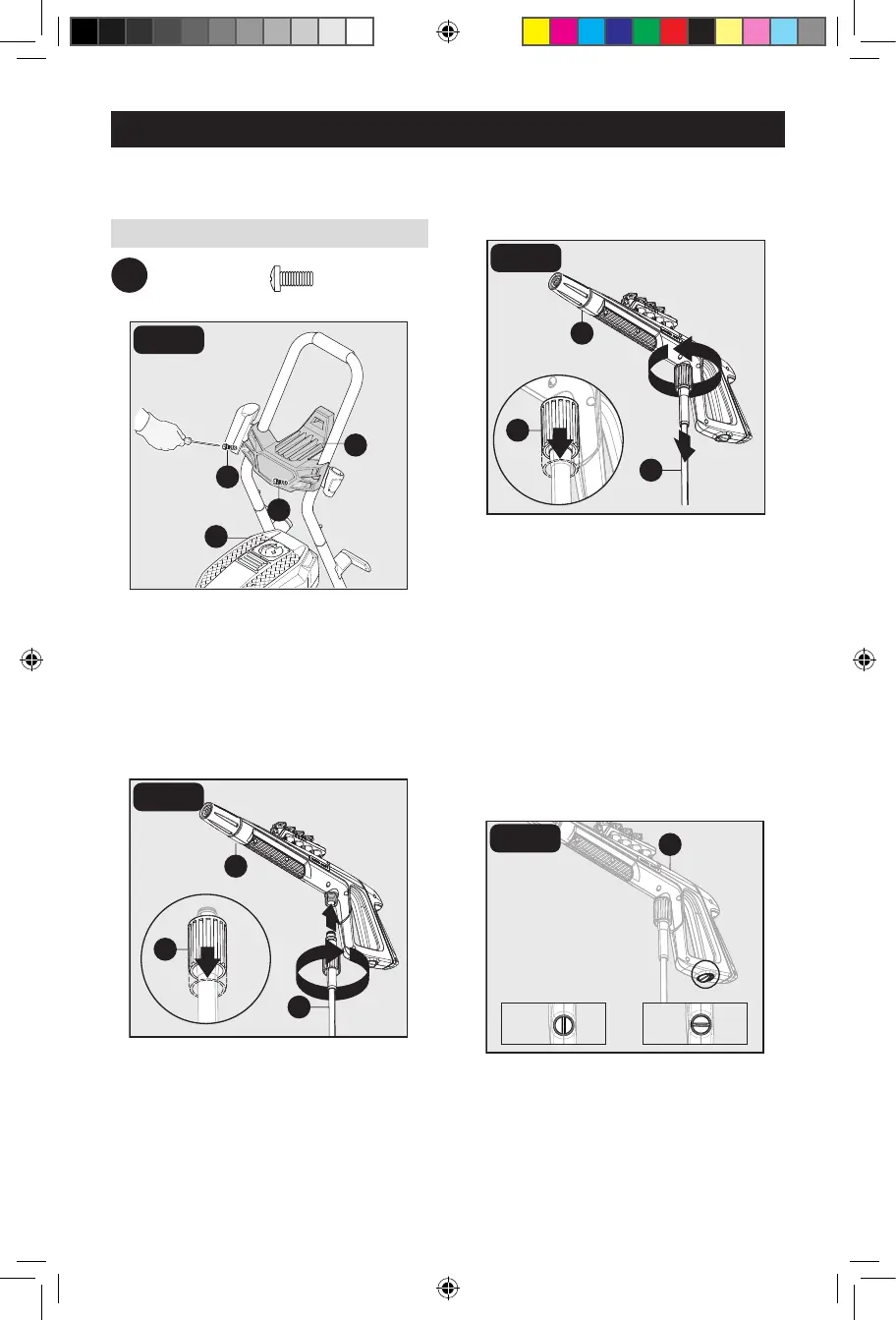

ASSEMBLY INSTRUCTIONS
Locking Spray Gun (before lance installation)
To lock trigger of spray gun (K), point gun
away from you and turn dial to lock (“3” and “9”
position). Squeeze or pull trigger to make sure
it is locked. Always leave in locked position
when not in use. This ensures the gun is in
“safe” mode until it is ready for use. Turn dial
to unlock (“12” and “6” position) to release
spray gun trigger.
Note:
The trigger lock prevents trigger from
being accidentally engaged.
3
2
K
N
1
N
FIG.6
K
Unlocked
1
Locked
FIG.8
CC
F
CC
A
FIG.5
Fix the bottom of hose hook (A) on the pressure
washer unit (F). Secure with screws (CC).
Screws
x 2
Hardware Used:
CC
AA
CC
BB
Shims
Qty. 4
Screws
Qty. 2
Cotter Pins
Qty. 2
DD
Screws
Qty. 2
Pull back on collar at one end of high
pressure hose (N).Push firmly to connect
hose to spray gun (K). Twist collar to secure.
Confirm hose is locked into spray gun by
slightly pulling on them. The hose is now
securely attached to spray gun.
Twist collar then pull back to release the the
high pressure hose (N) connection from the
gun (K).
1
3
K
N
N
FIG.7
