Merach Q1S - Installation Procedure; Step 1: Front Leg Assembly

25 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

05

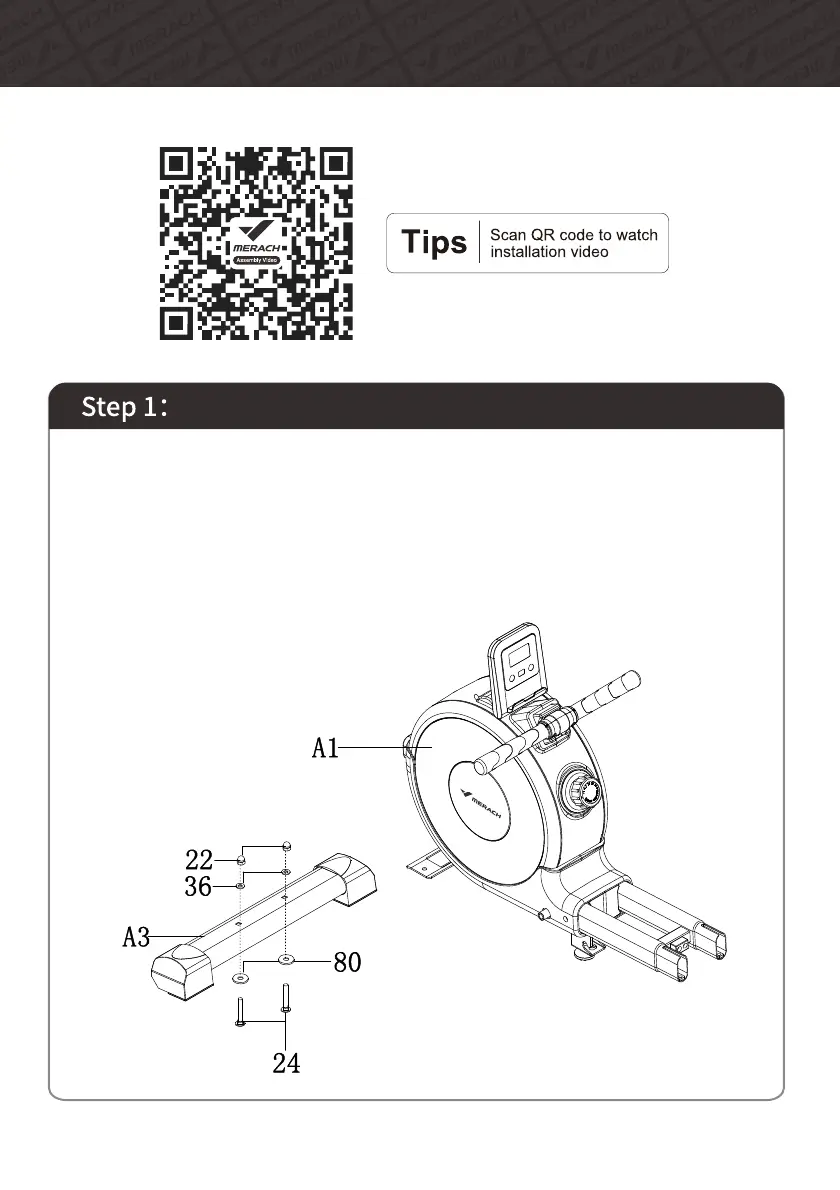

Installation Procedure

Use a multi-function wrench (T1), mushroom head square neck bolts

(24), ﬂat washer(36), ﬂat washer(80) and hexagon domed cap nut (22)

to install the front leg assembly (A3)on the main frame assembly (A1)
