Installation
The DAC 1 develops a certain amount of waste heat during operation, so care must be
taken to ensure adequate ventilation. The following minimum distances must be observed:
Distance upwards: 5 cm.
Distance to the rear: 10 cm.
Lateral distance: 5 cm.

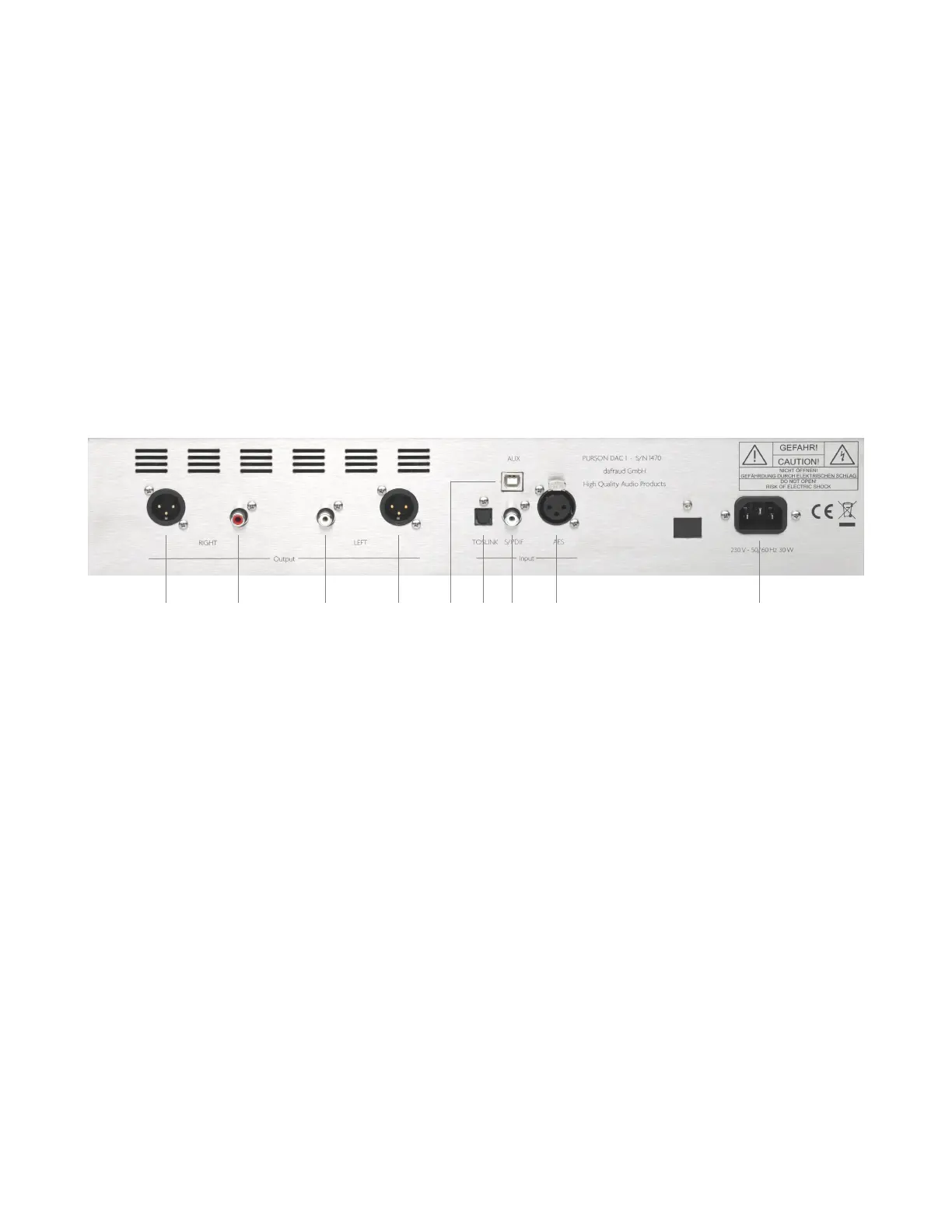

Connectors
1 Balanced analog output right channel.
2 Unbalanced analog output right channel.
3 Unbalanced analog output left channel.
4 Balanced analog output left channel.
5 AUX digital input, standard USB Audio Class 2.0.
6 Optical digital input (TOSLINK).
7 Coax digital input (S/PDIF).
8 Balanced digital input (AES).
9 Mains input.
1 2 43 65 7 8 9
